OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020

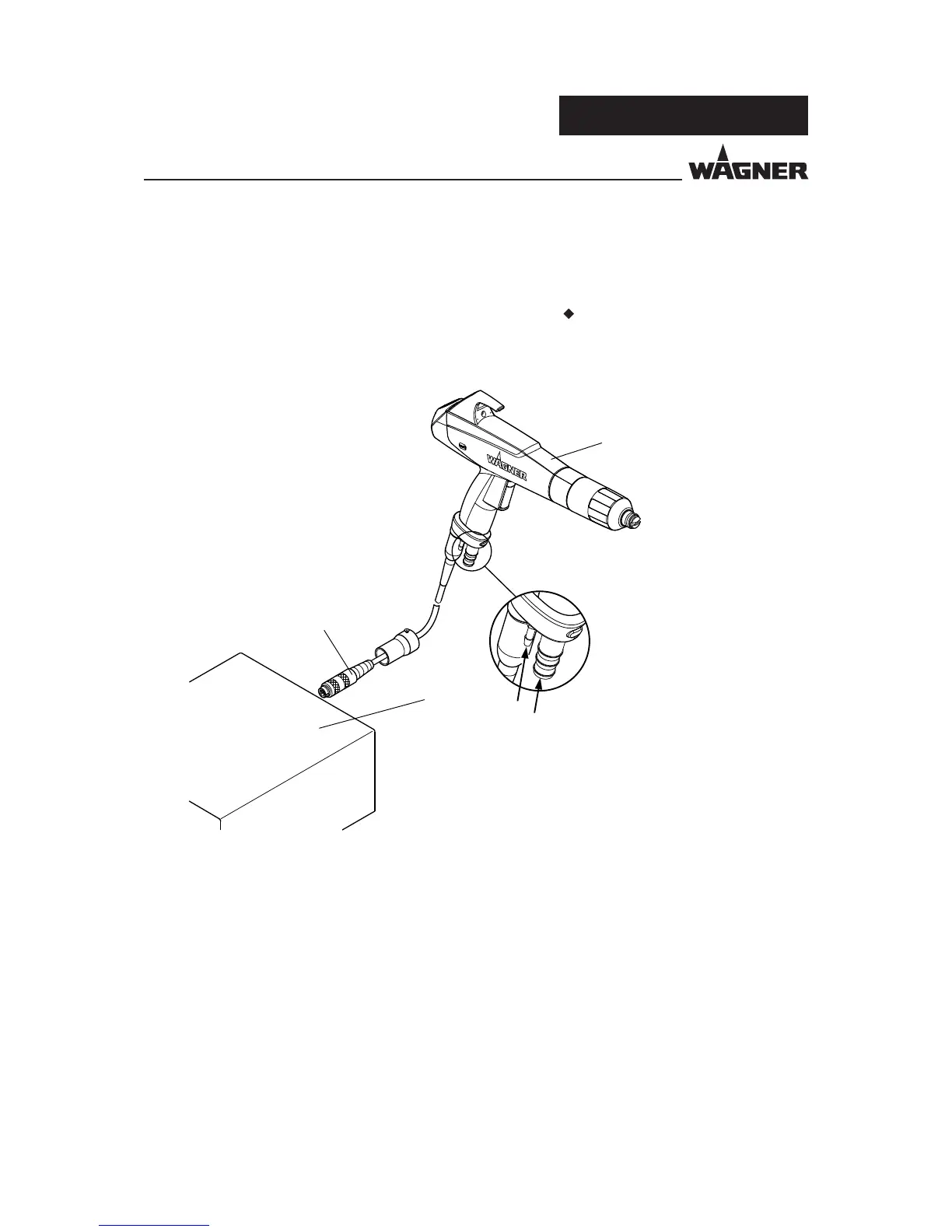

8.2.4 REPLACING THE SPRAY GUN
Before replacing the spray gun, any powder residue must be thoroughly removed.
The wearing parts in the spray gun, marked in the spare parts list with "
", must be regularly
checked and, if necessary replaced.
Procedure:
1. Switch o control unit.
2. Disconnect electrical cable 1 from control unit 2.
3. Disconnect powder feed hose 3 and atomizing air hose 4 from spray gun 5.
4. Connect powder feed hose 3 and atomizing air hose 4 to the new spray gun 5.
5. Connect electrical cable 1 to control unit 2.
6. Switch on the control unit.
7. The spray gun is ready for use again.
