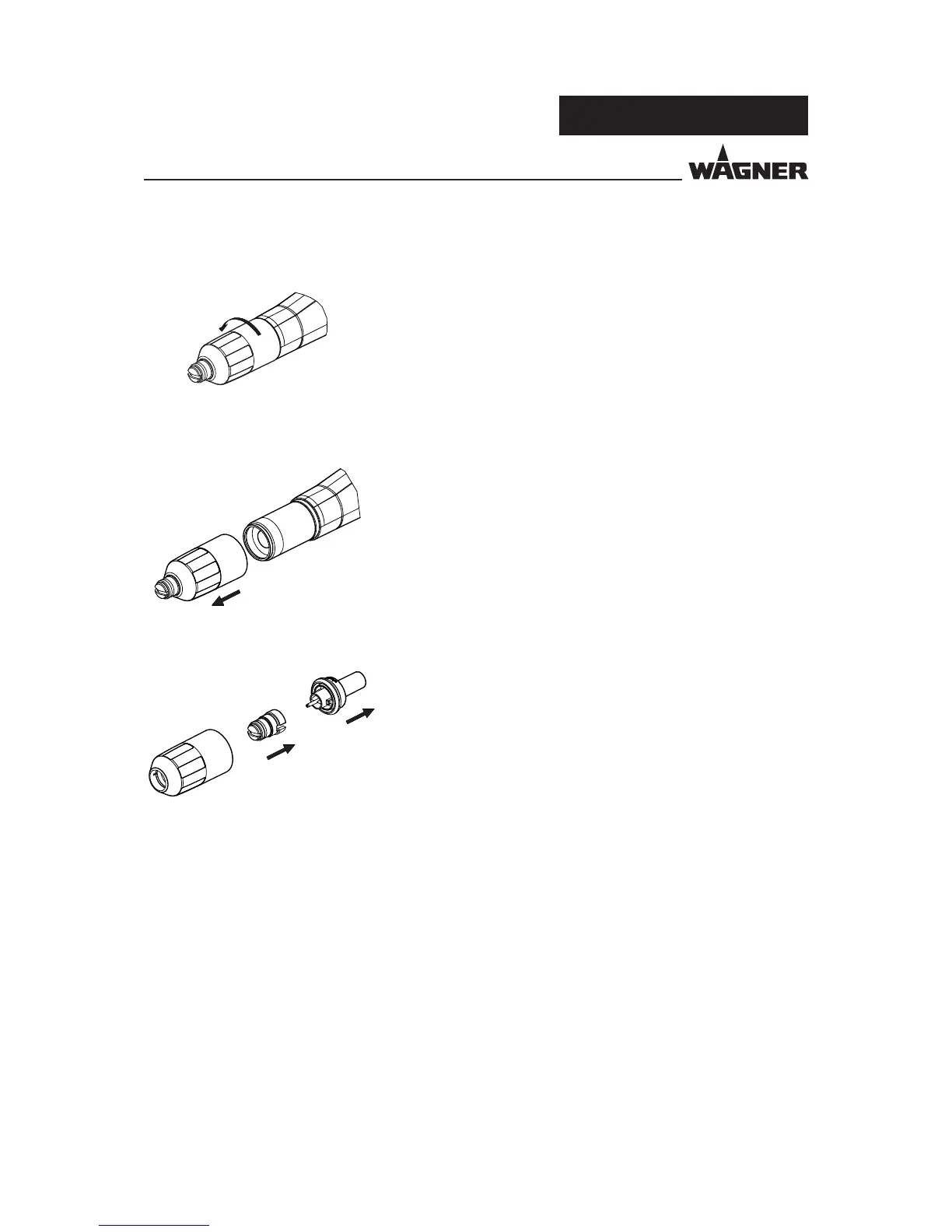

8.3 REMOVING THE FAN SPRAY NOZZLE
3. The parts can be separated by gently pressing the sliding
ring on the fan spray nozzle.
4. Remove powder residues from the parts removed and from
the spray gun.
Note:
Never place the spray gun or parts of the spray gun in cleaning
agent.
As a rule the protective wedge needs to be checked for wear and
replaced if necessary.
Procedure:
1. Unscrew union nut from gun housing.
2. Take union nut with nozzle system o gun body.
The nozzle system remains inserted in the union nut.
Note:
If the nozzle system doesn't remain inserted in the union nut, the
nozzle system and union nut must be replaced.
