OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020

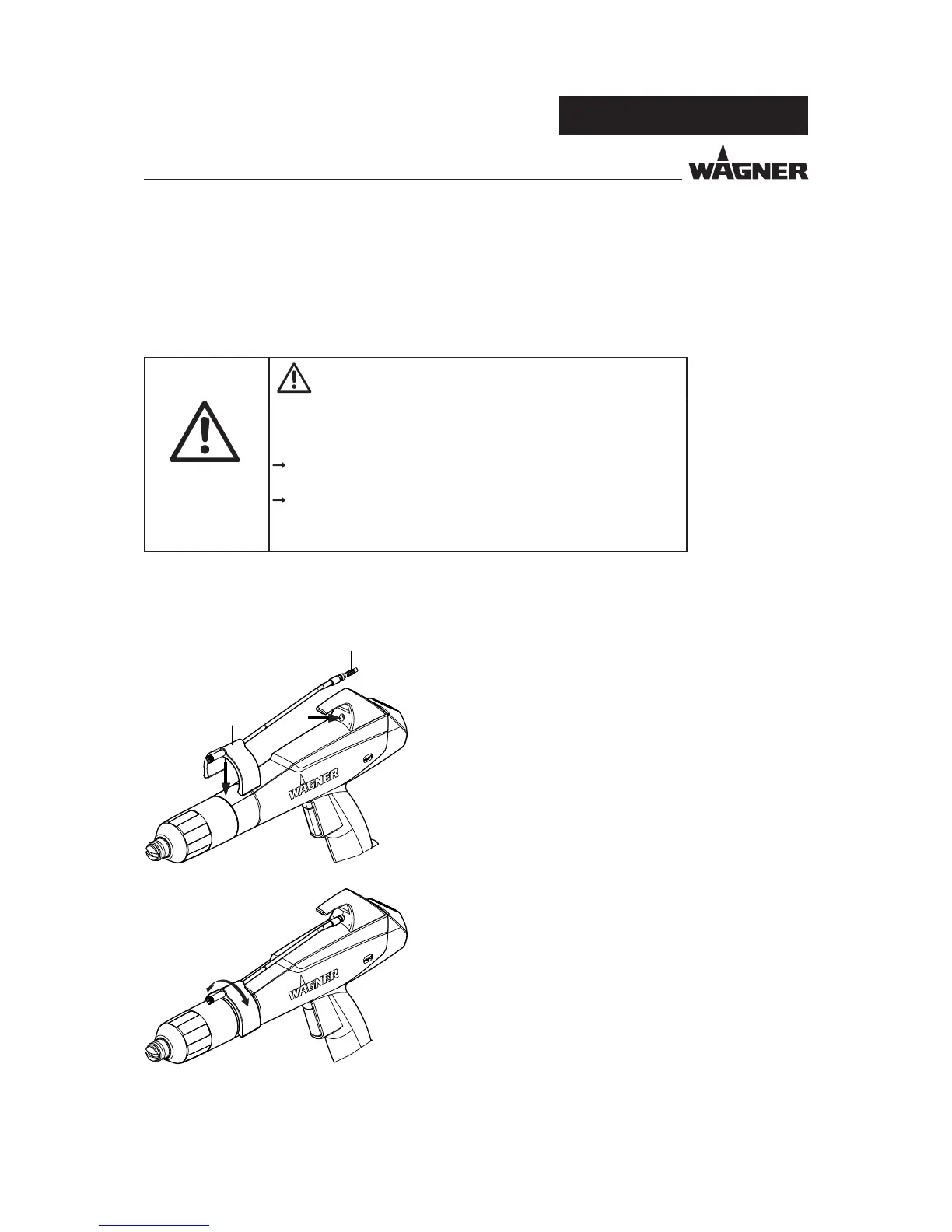

8.9 ASSEMBLY OF THE CORONASTAR
The CoronaStar is a retro t set for the spray gun, which helps to achieve a better surface
quality (e.g., reduction of "orange peel").
Procedure:
1. Guide plug-in contact 1 of CoronaStar into drilled
hole B on hook.
2. Attach clip 2 of CoronaStar to housing.
Flexible positioning in a range of ± 90° is possible.
Danger from electric current!
Risk of injury and damage to the device.
The conversion to the CoronaStar may only be carried out by
trained personnel.
Prior to assembling the CoronaStar, the high-voltage and
powder feed must be switched o and secured against being
inadvertently switched on.
