Waters 2545 Binary Gradient Module User Manual

Making plumbing connections 1-15
Required materials
• Drip tray (part number 700001514)
• Waste tube, 1/4-inch
• Leak sensor (optional; with leak detection module)
To install the drip tray on the binary gradient module:
1. Clip the drip tray into the bezel.
2. Slide the 1/4-inch ID waste tube over the barbed drain fitting.
3. Place the free end of the drain tube in an appropriate waste container,
and ensure that the drain tube has no crimps or bends.
Installing the system outlet tube
Required materials
• System outlet tube assembly (part number 430000574)
• 5/16-inch wrench

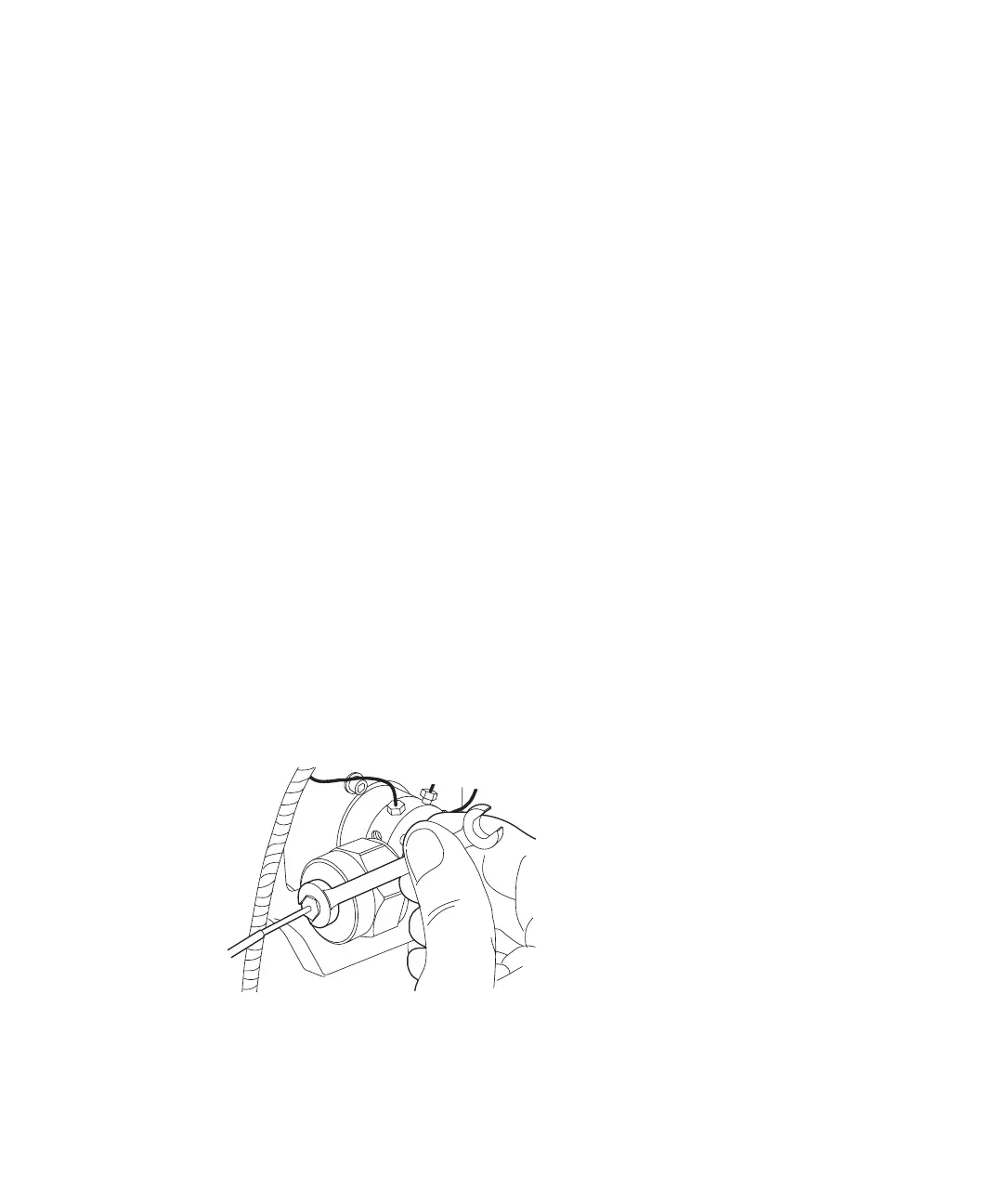

To install the system outlet tube:
1. Insert the system outlet tube assembly into the system outlet and
tighten with a 5/16-inch wrench.
Installing the system outlet tube
2. For a binary gradient module used as a chromatographic pump, connect
the system outlet tube between the inline filter and the appropriate port
on the sample manager.
