Waters 2545 Binary Gradient Module User Manual

Removing the pump head and seal-wash assemblies 3-7
Disconnecting the transducer outlet tube

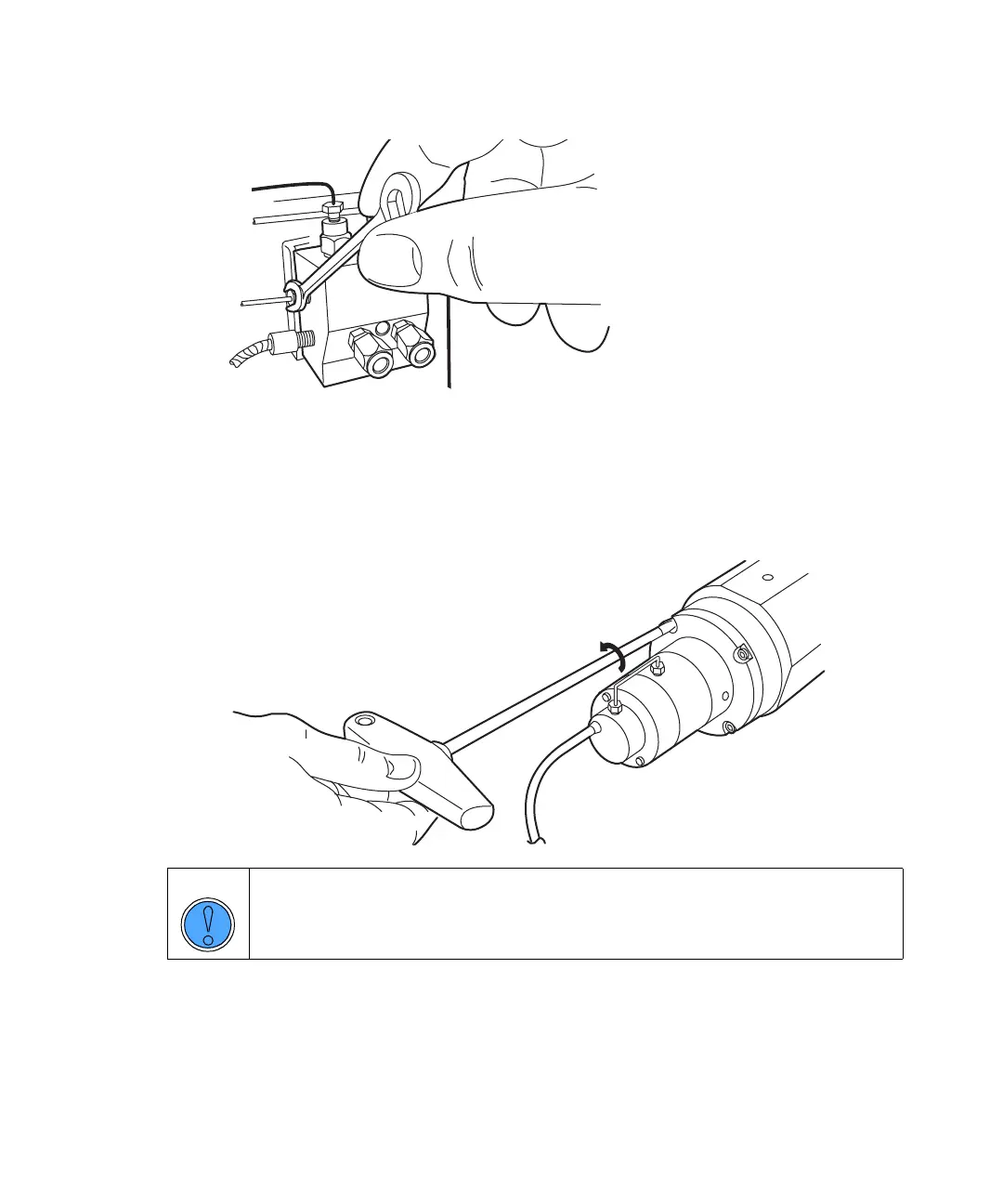

9. Disconnect the two seal-wash tubes from the sides of the pump head.
10. While supporting the pump head’s weight, use a T27 TORX driver to
remove the four screws in the support plate.
Removing the head assembly from the housing
11. Gently separate the pump head assembly from the housing.
12. Place the transducer face of the head assembly on a flat work surface.
Caution: Keep the pump head aligned with the plunger to avoid
damaging the plunger.
!
