Waters 2545 Binary Gradient Module - Page 55

Removing the pump head and seal-wash assemblies 3-9
14. Remove the seal-wash housing.

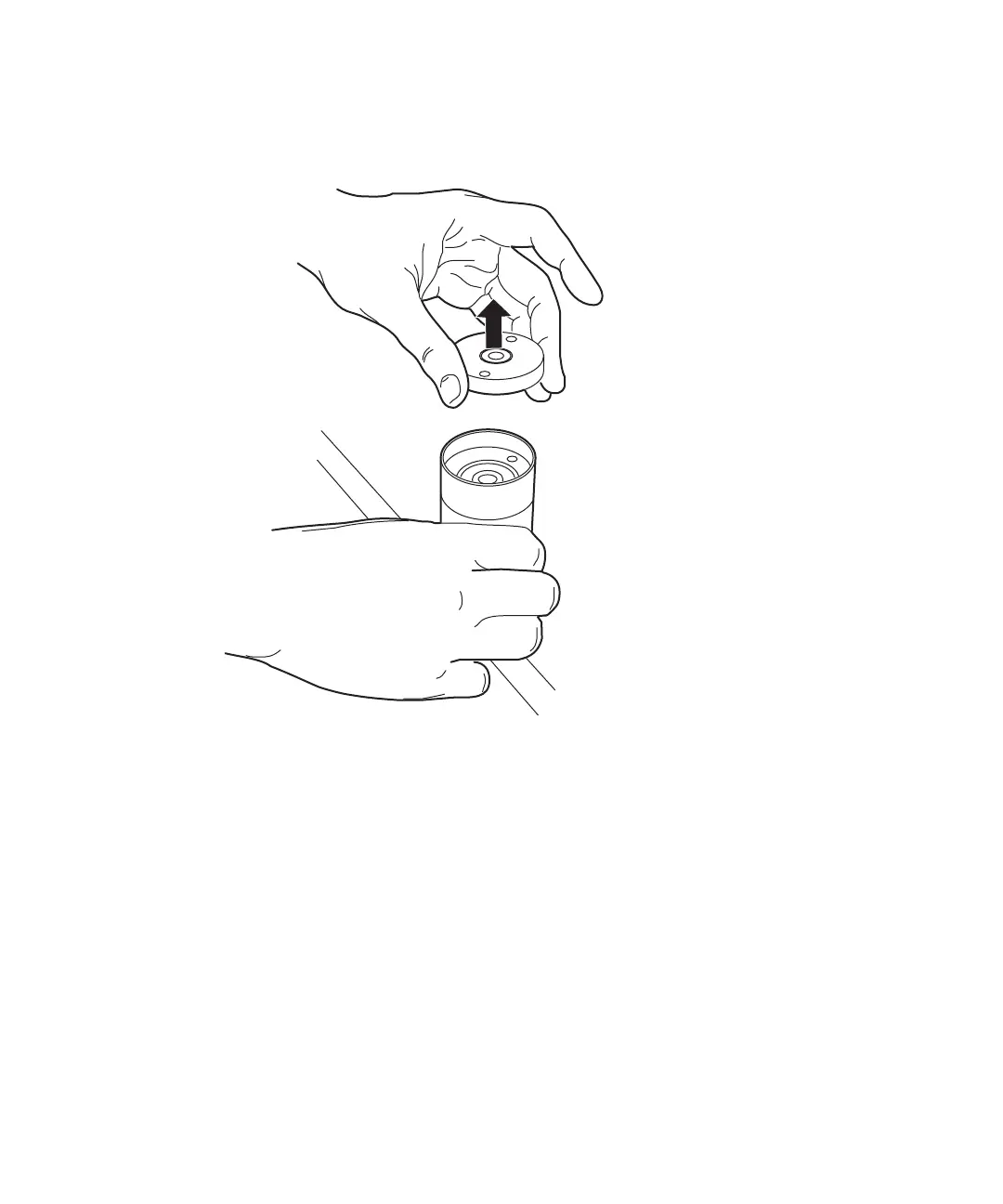

Removing the seal-wash housing
15. In the Manual Plunger Control dialog box, click Move Plunger Forward.
The plunger moves forward.
