5-34 Maintenance Procedures

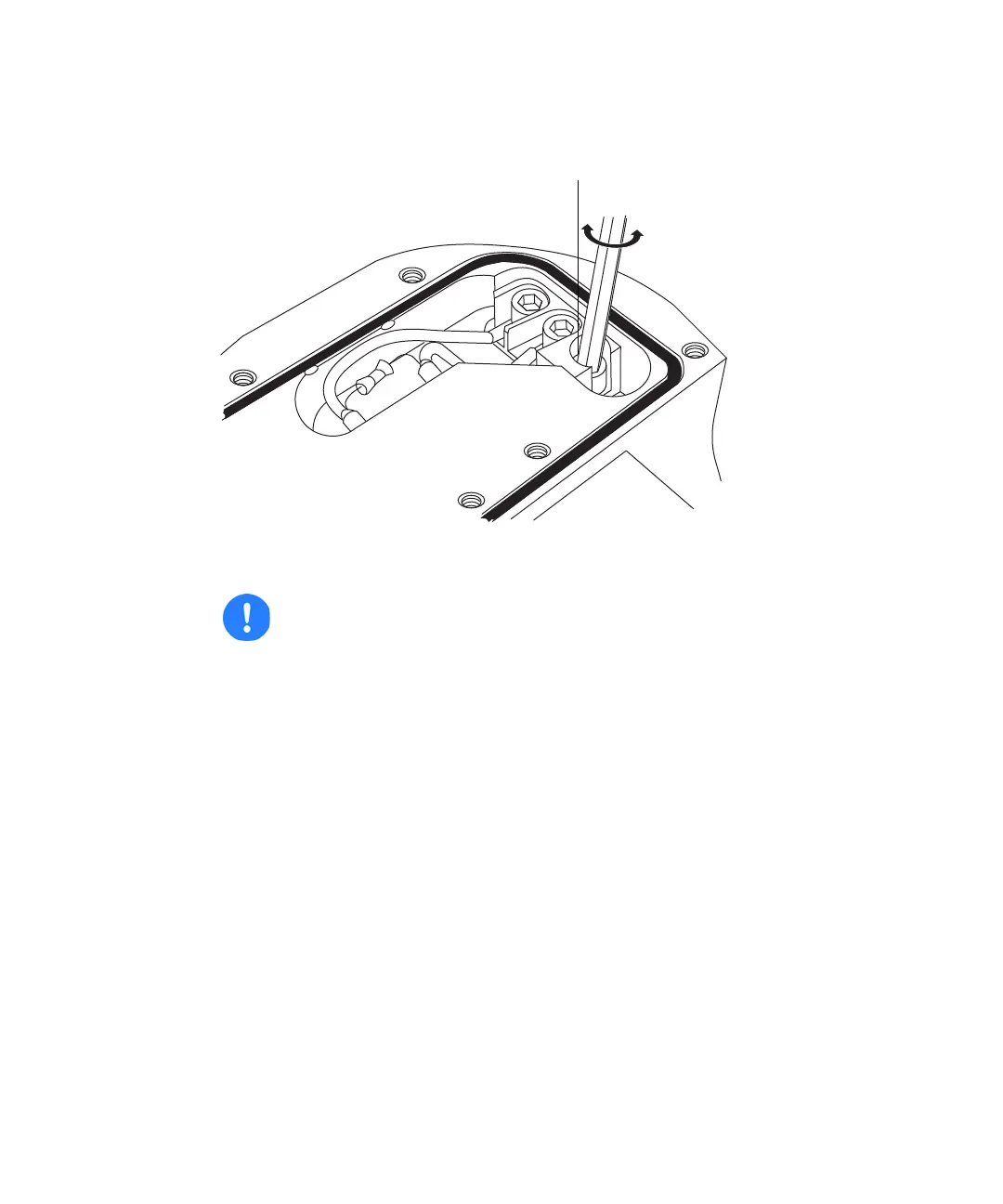

9. Use the 2.5-mm Allen wrench to loosen the captive PEEK terminal block
securing screw.
10. Use the needle-nose pliers to grasp the PEEK terminal block and
partially lift it out of the ion block.
Caution: To avoid damaging the heater cartridge assembly
wires, do not bend or twist them either side of the heater
cartridge assembly heat-shrink tubing when removing the
assembly from the ion block.
PEEK terminal block securing screw
