2-4 Installing the System

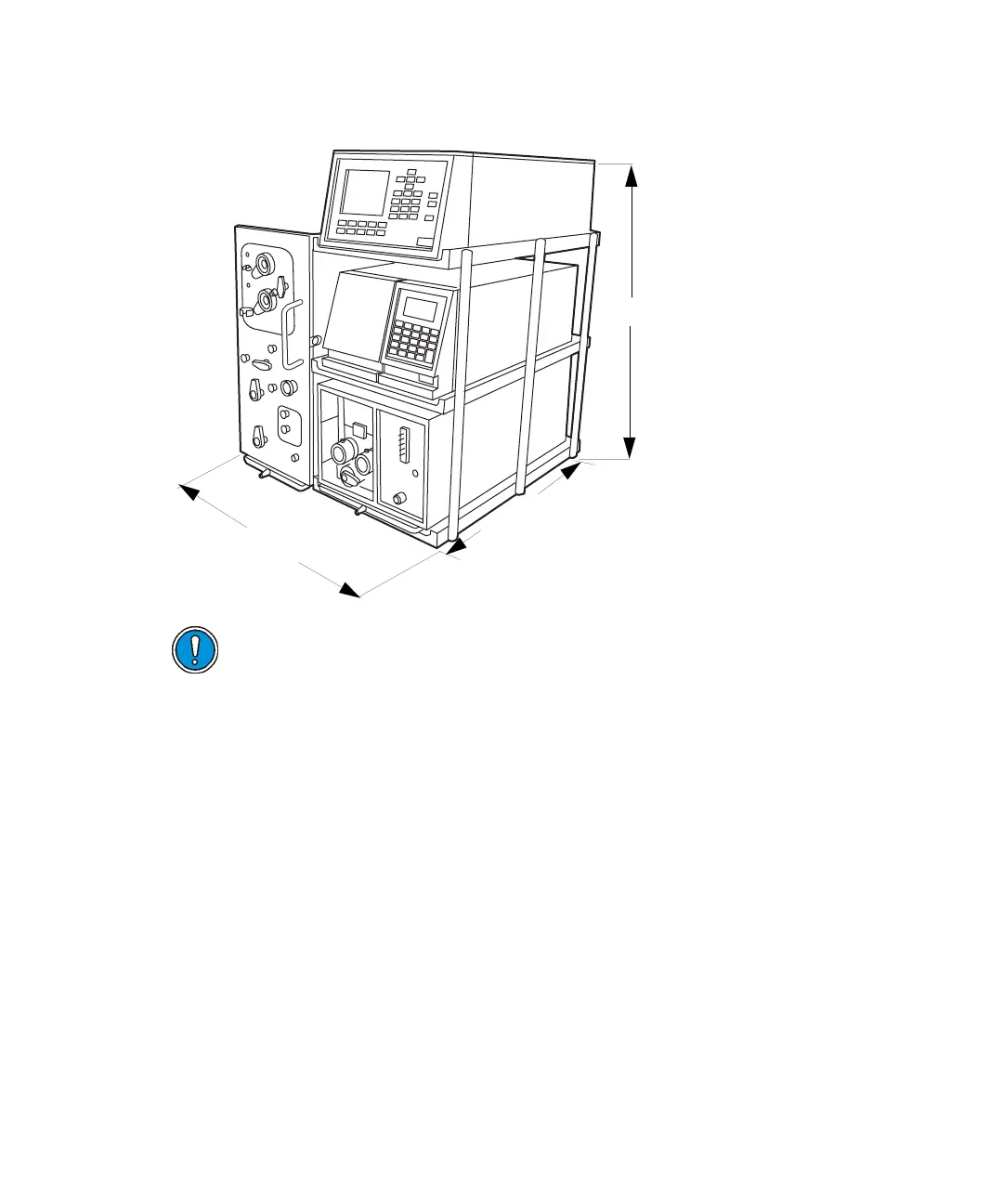

Waters Delta-Prep system dimensions
To install the shelf unit:
1. Bolt the column rack to the left side of the shelf unit with the 12 screws
and nuts that accompany the column rack. Place the assembly in
position on the bench.
2. Place the fluid handling unit in the bottom section of the shelf unit (see
the figure “Waters Delta-Prep system dimensions” on page 2-4).
Tip: Before installing the controller, determine whether you must
reconfigure the operating frequency and/or operating voltage selections
as outlined in “Electrical requirements” on page 2-5. Make any
necessary changes, then proceed with step 3.
3. Slide the controller into the top slot, leaving the middle slot for the
detector.
Caution: Do not stack fluid handling units and devices on top of
electronic units without providing leak protection.
TP02068
21.5 in
(54.61 cm)
23.7 in (60.2 cm)
22.0 in (50.88 cm)
