Setting up the plunger wash 2-39
The fluid handling unit connects to the column with a 0.040-inch ID tubing
(Startup Kit) installed between the pump outlet and the Inlet bulkhead
connector on the column rack’s front panel.

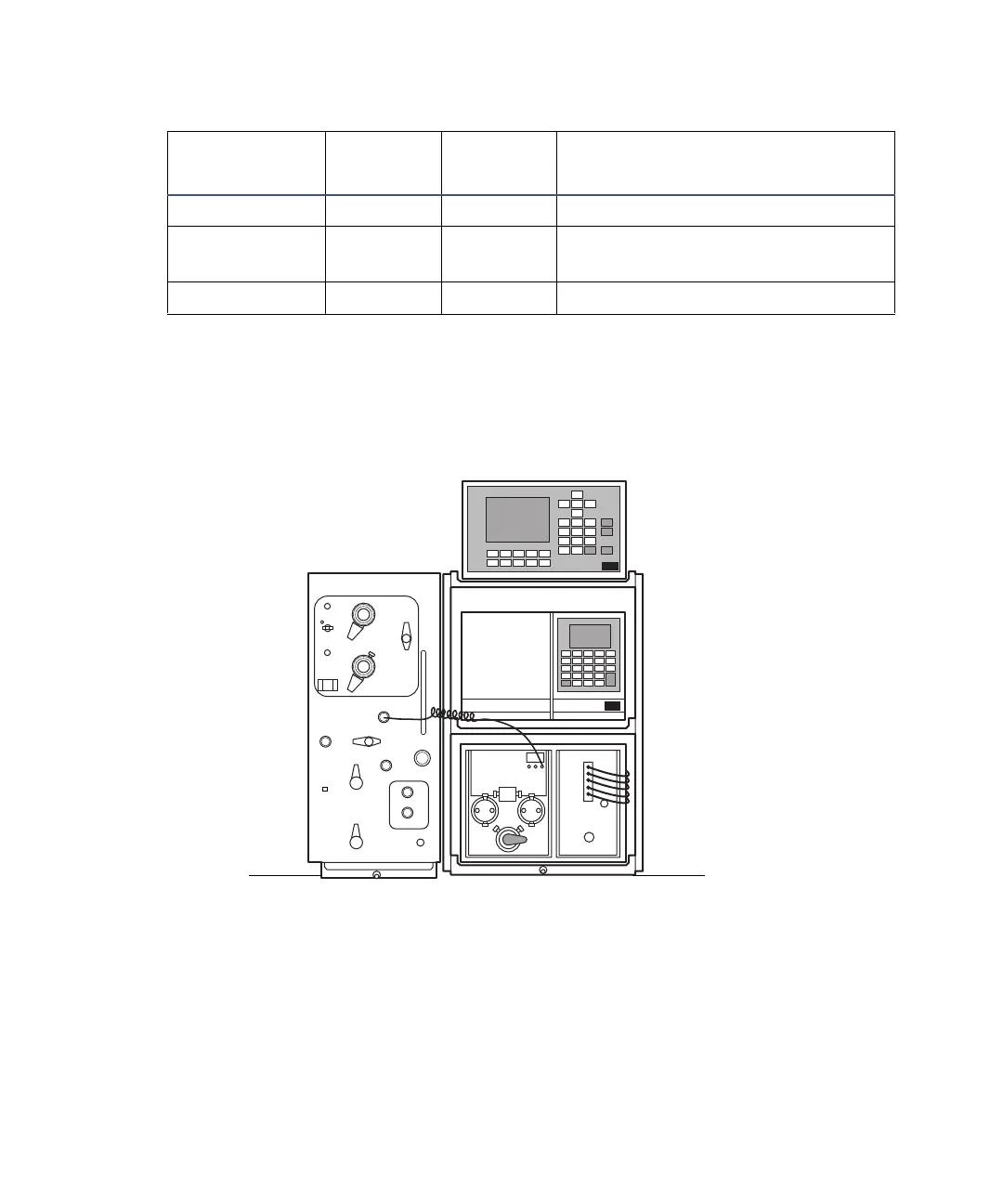

Pump outlet connection to the column rack inlet (Delta-Prep system)
To connect the pump and column rack:
1. Cut a length of 0.040-inch stainless steel tubing (Startup Kit) that
reaches from the pump outlet to the Inlet connector on the column rack’s
front panel.
Tip: Use excess tubing, forming it into several coils, as shown in the
figure “Pump outlet connection to the column rack inlet (Delta-Prep
Purge outlet Stainless 0.040 Waste container
Fraction
outlets
PTFE 0.062 Fraction containers
Waste PTFE 0.062 Waste container
Column rack connections (Continued)
Column rack
connection
Type of
tubing
Tubing ID Connect to
Drip tray
Column rack
Controller
Drip tray
2487 Detector
Fluid handling unit
