Watlow F4T Installation And Troubleshooting User’S Guide

Watlow F4T Install & Troubleshooting • 22 • Chapter 2 Install and Wire
Output Connections (cont.)

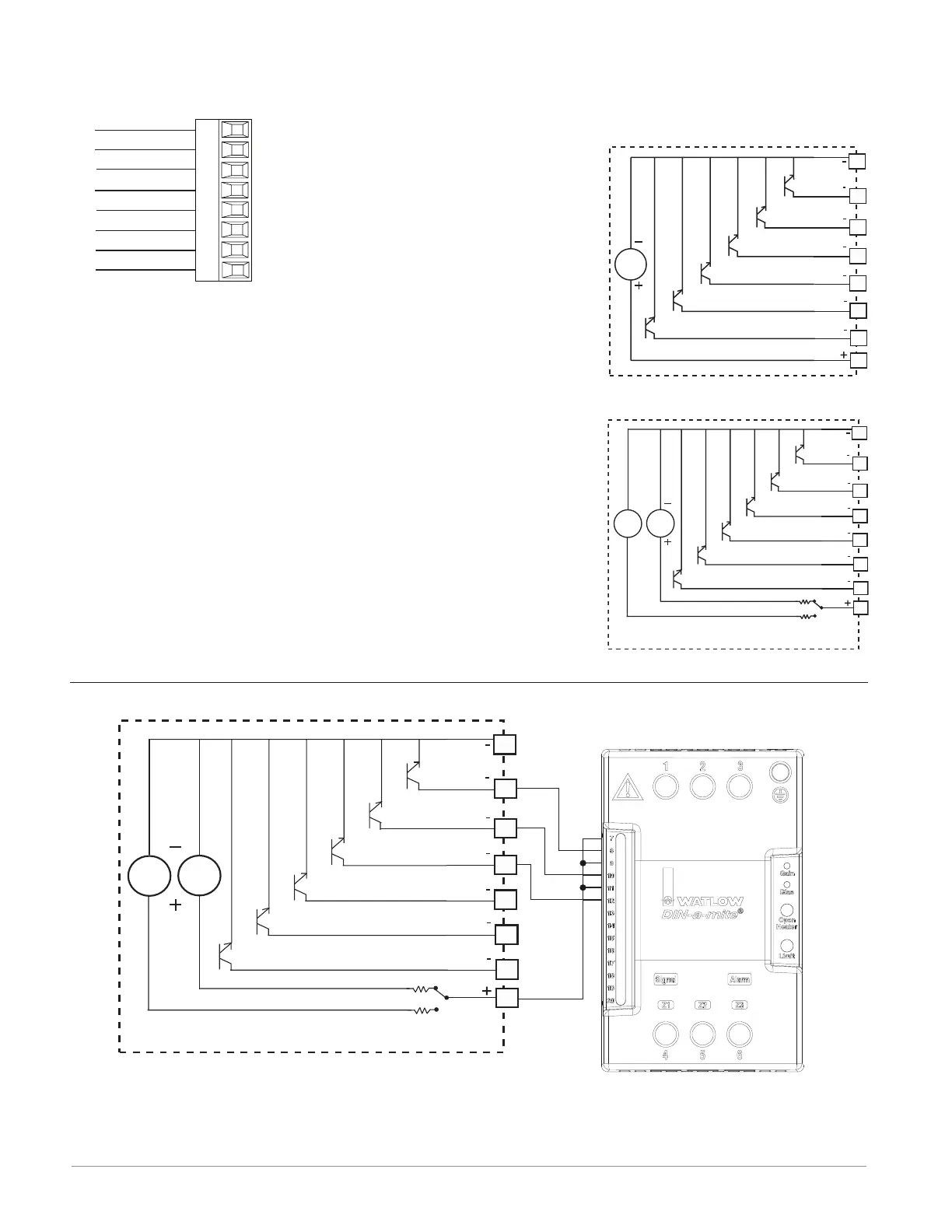

Six Digital Outputs (High Density) FMHA - CAAA - A _ _ _
Internal
Common
open collect
or/switched dc
B1
D1
D2
D3
D4
D5
D6
Z1
Supply
open collect
or/switched dc
open collect
or/switched dc
open collect
or/switched dc
open collect
or/switched dc
open collect
or/switched dc
Open Collector
• Maximum switched voltage is 32VÎ
(dc)
• 400mA, maximum open circuit volt-
age of 25VÎ
(dc), typical 8VÎ (dc)
at 80mA
• Maximum output sink current per
output is 1.5A (external class 2 or
*SELV supply required)
• Total sink current for all outputs not
to exceed 8A
• Do not connect outputs in parallel
• *Safety Extra Low Voltage
Switched DC
• User selectable voltage, 5VÎ (dc) at
130mA or 19 to 22VÎ (dc) at 80mA
Open Collector Outputs
B1
Z1
D6
D5
D4
D3
D2
D1
24Vdc
Switched DC Outputs
B1
Z1
D6
D5
D4
D3
D2
D1
5Vdc
24Vdc
User Selectable
Voltage
Digital Output - Switched DC Wiring Example
Note:
As a switched DC output; this output is a constant current output delivering 750 mW, cur-
rent limited to 150 mA. The internal supply is 5V(dc) open circuit. Pin Z1 is shared to all
digital outputs. This type of output is meant to drive solid state relays, not mechanical
Internal Supply
+
+
+
-
-
-
DC90-60C0-0000
Htr 3
Htr 2
Htr 1
B1
Z1
D6
D5
D4
D3
D2
D1
5Vdc
24Vdc
User Selectable
Voltage
Anderson-Bolds ~ 216-360-9800
www.anderson-bolds.com

Watlow F4T Specifications

General

Inputs	Thermocouple, RTD, mA, V
Outputs	Relay, SSR, mA, V
Communication	Ethernet, Modbus RTU
Data Logging	Yes
Certifications	CE, UL, cUL, RoHS
Control Modes	PID, On/Off
Power Supply	100 to 240 VAC
Operating Temperature	0 to 50°C
Enclosure Rating	IP65
Display	4.3 in. (109 mm) color touch panel LCD
Control Loops	Up to 4
