4-20mA Output (Universal+ model only)

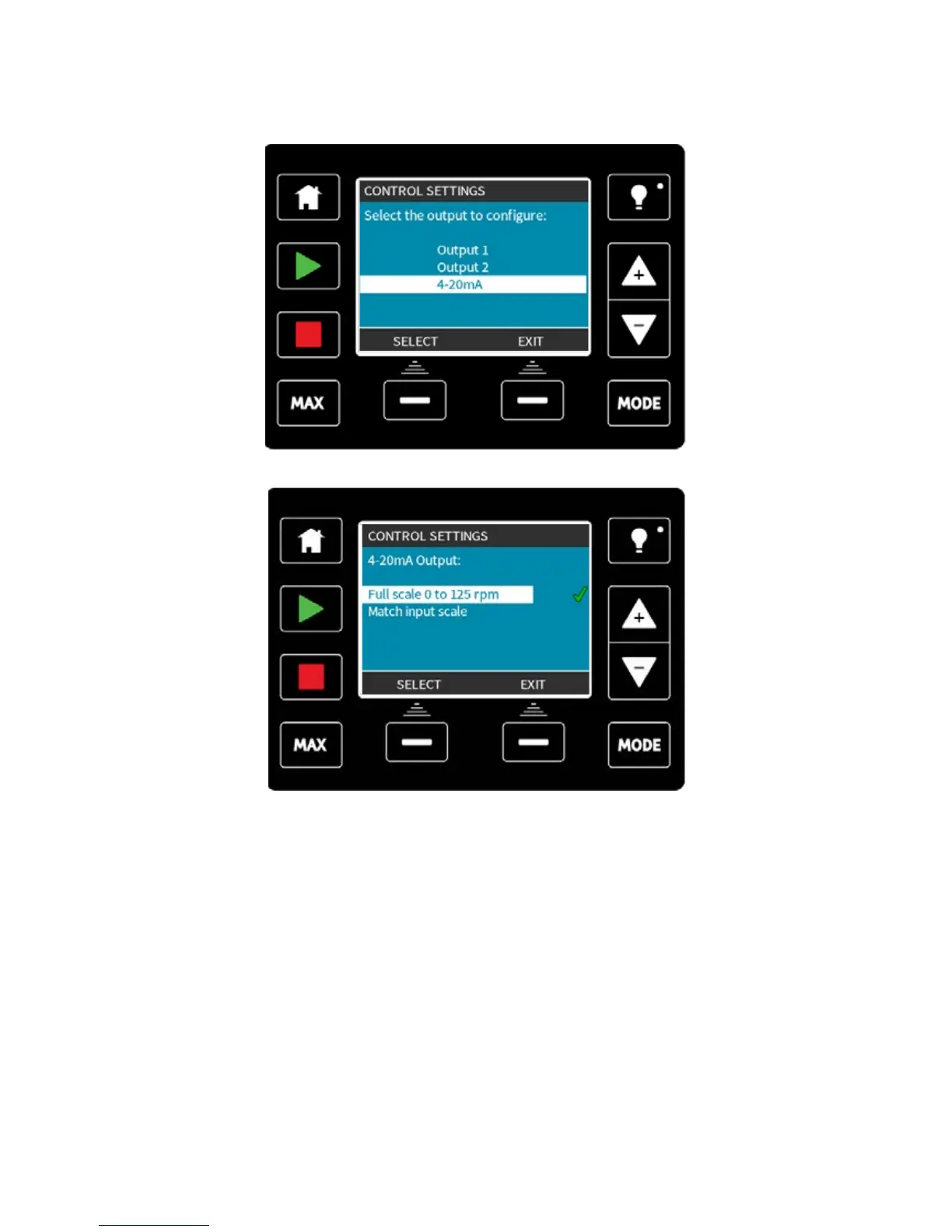

Select 4-20mA to configure the pumps 4-20mA output response.
Use +/- and SELECT to choose the required setting
Full scale – The 4-20mA output will be based on the full speed range of the pump. At 0 rpm
the pump will output 4mA. At maximum rpm the pump will output 20mA.
Match input scale – The 4-20mA output will be scaled to the same range as the 4-20mA
input. If the 4-20mA input has been scaled to provide 4mA=0 rpm and 20mA=20 rpm then
an input of 12mA will result in a set speed of 10rpm and an output of 12mA
