Configurable Start/Stop input

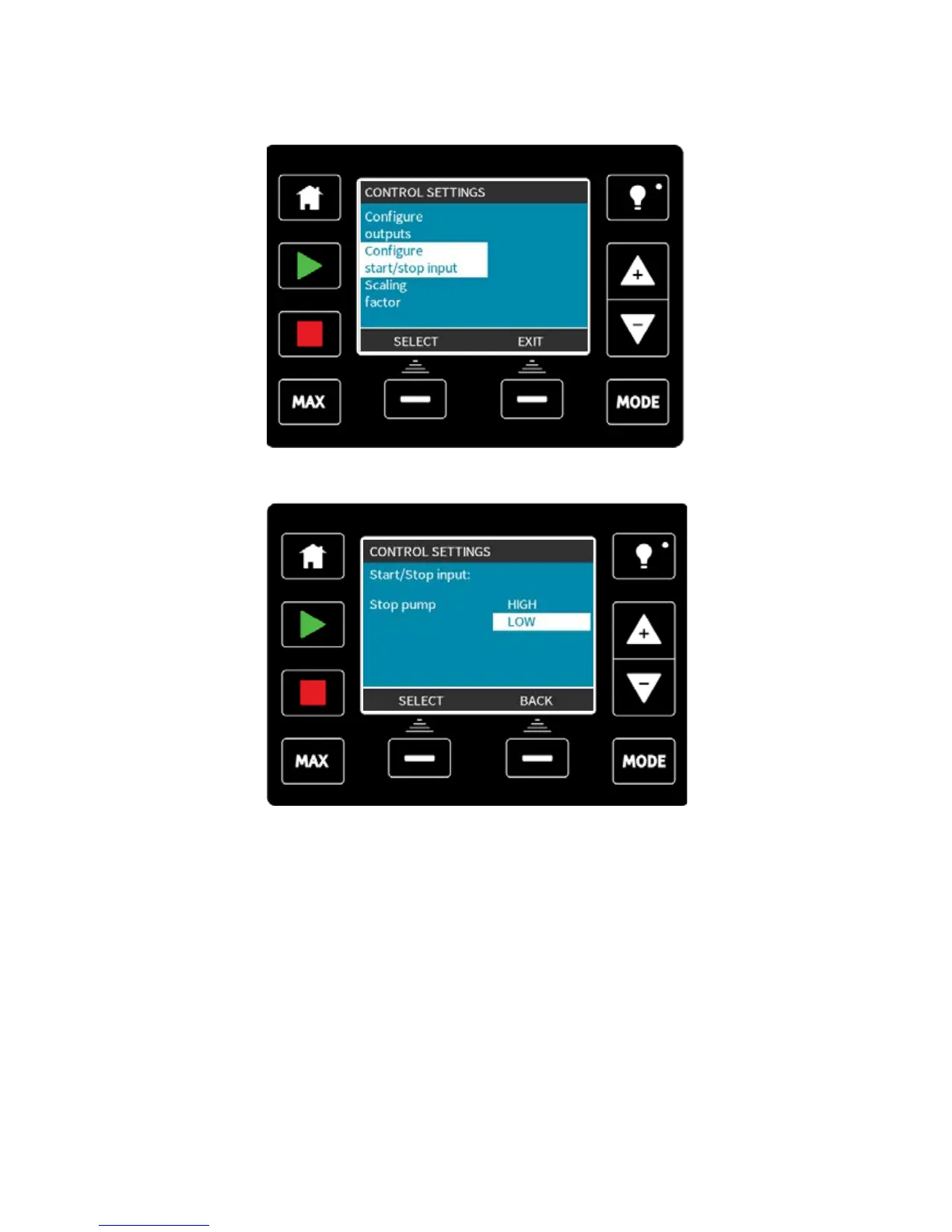

Select Configure start/stop input from the menu.

Use +/- and SELECT to configure the input setting. A low stop input is recommended as the

pump will be stopped in the event of any loss of input signal.
