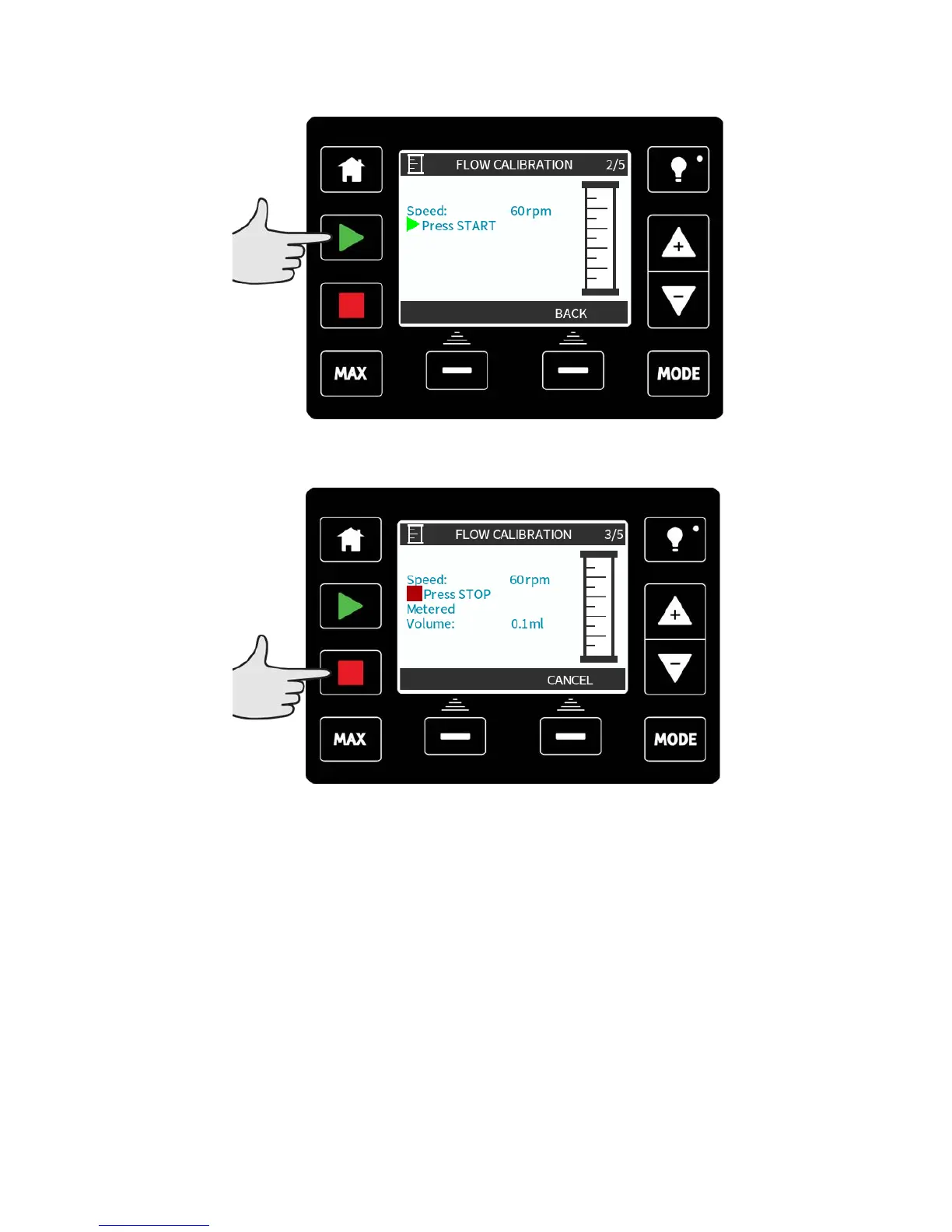

Press START to begin pumping a volume of fluid for calibration.

Press STOP to stop pumping fluid for the calibration.

m-qdos-en-02 65
