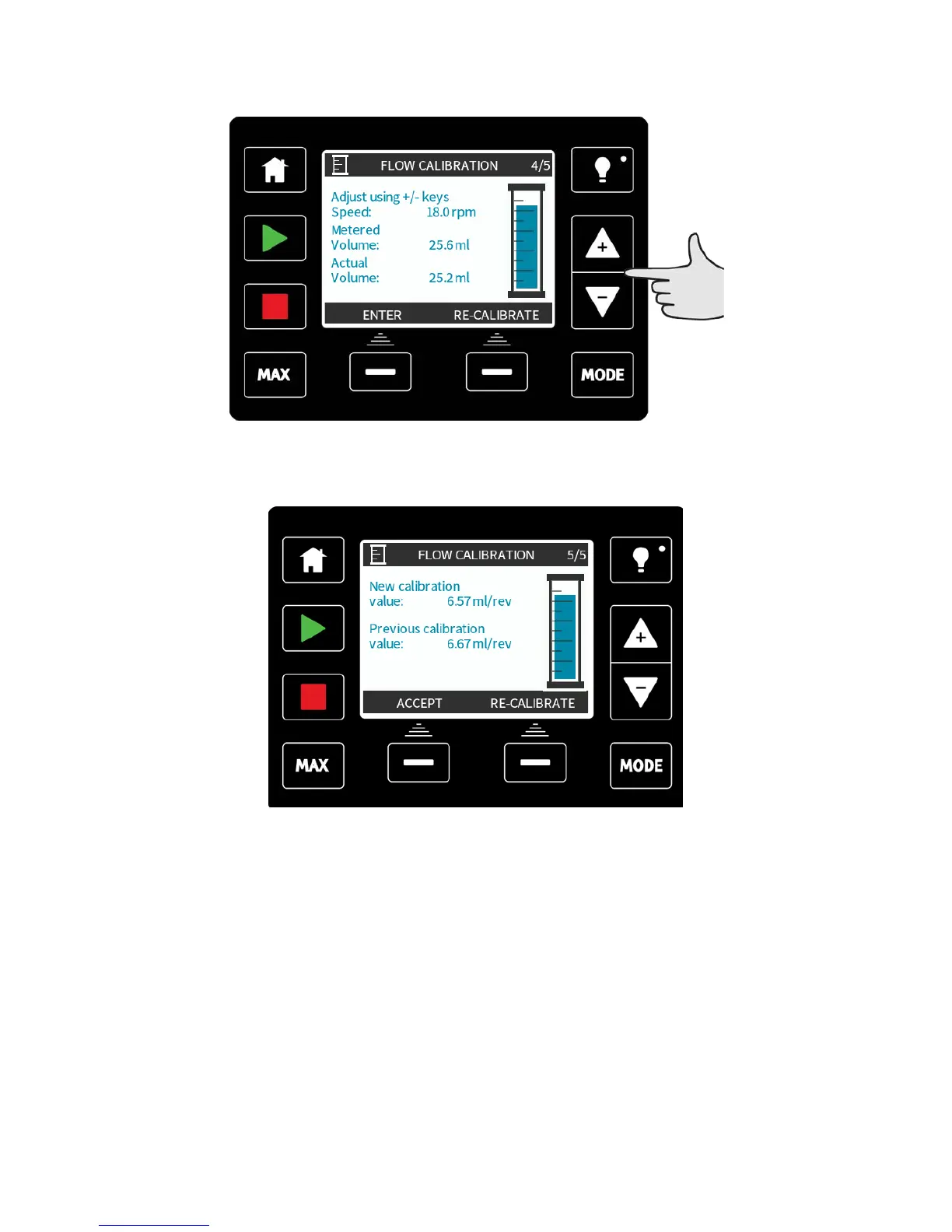

Using the +/- keys enter the actual volume of fluid pumped.

To accept the new calibration press ACCEPT or RECALIBRATE to repeat the procedure.

Press HOME or MODE to abort.

The pump is now calibrated.

m-qdos-en-02 66
