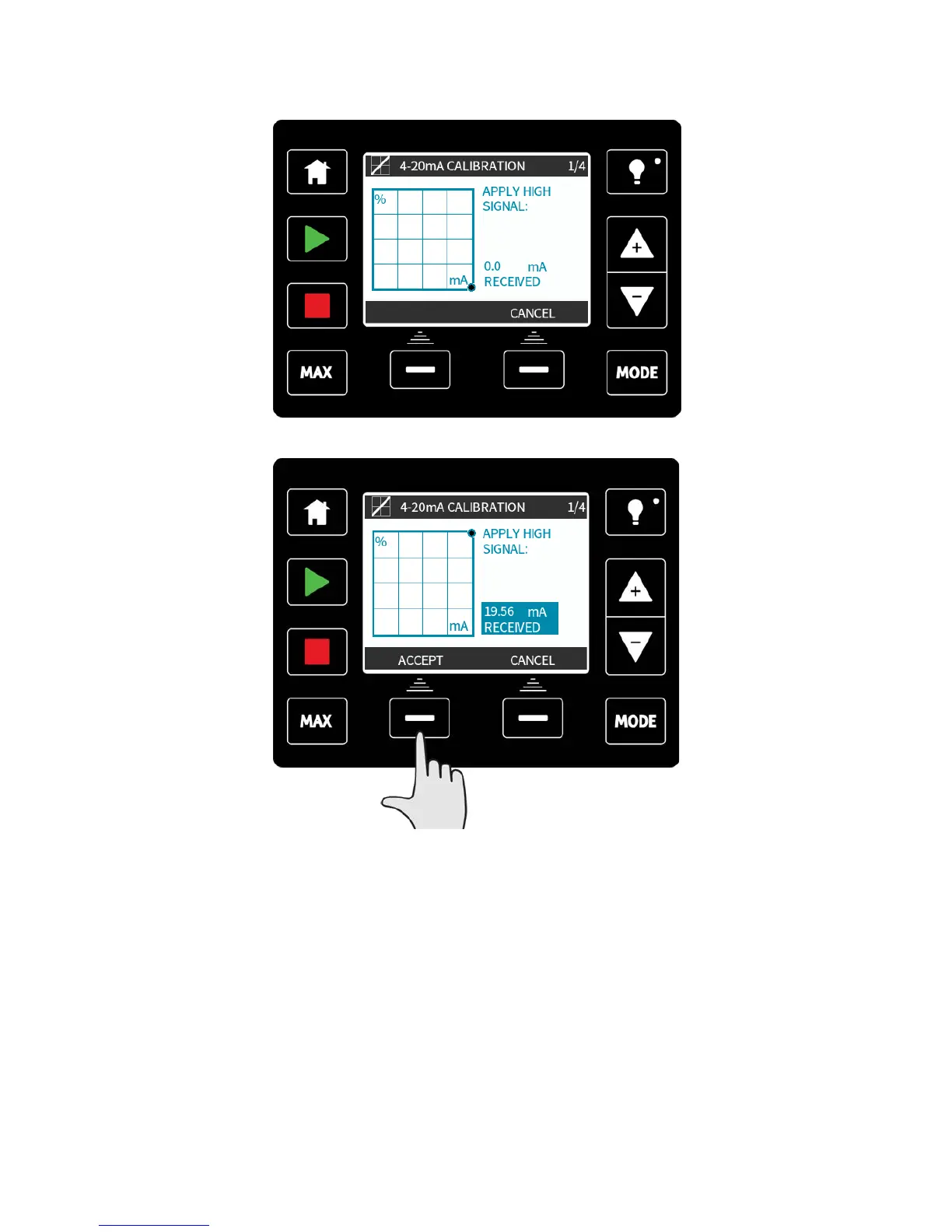

Setting a high signal

Send the high signal input to the pump, or enter the current value using the +/- keys.

ACCEPT appears when high mA signal is within tolerance limits. Press ACCEPT to accept

the high signal input or CANCEL to return to the previous screen.

m-qdos-en-02 73
