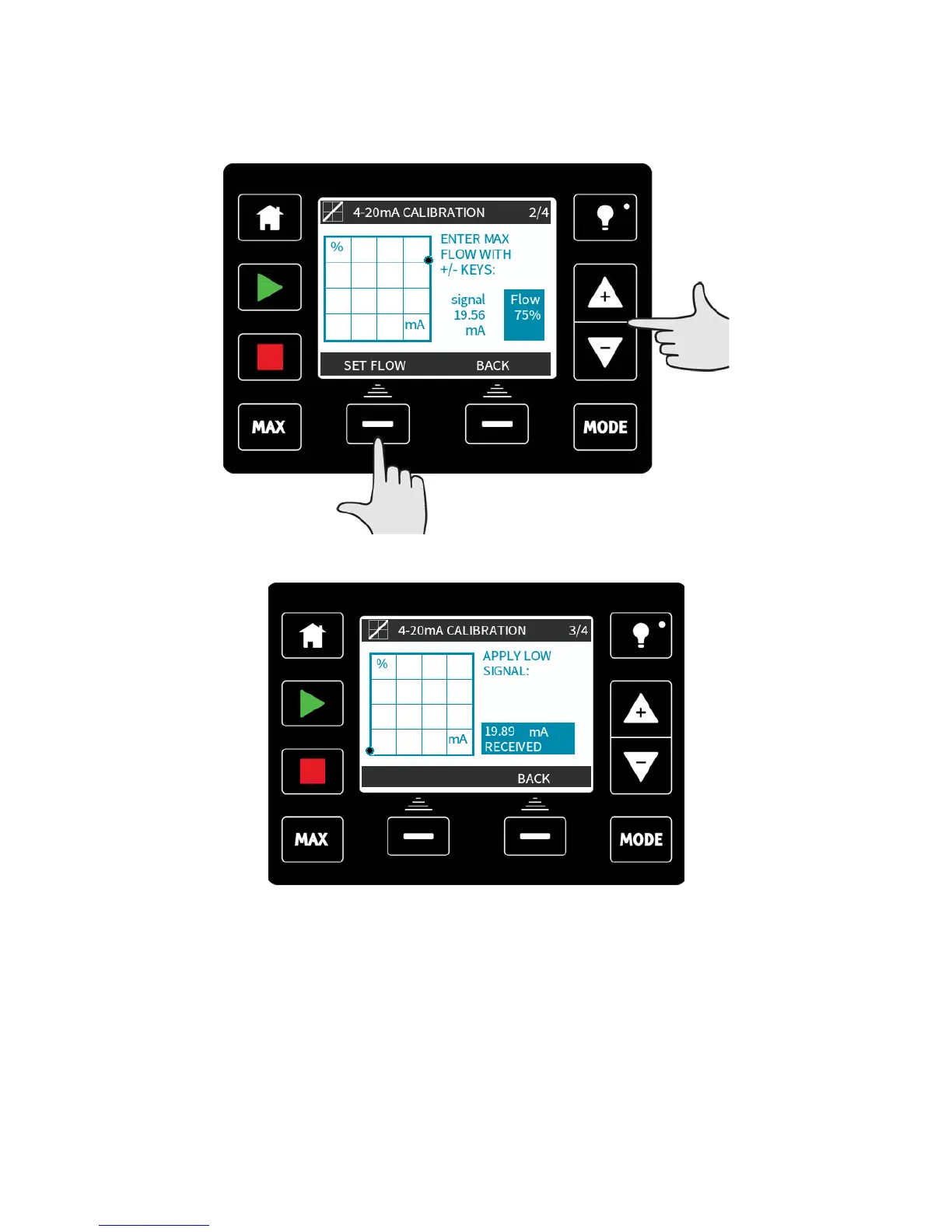

Setting high flow calibration

Using the +/- keys scroll to the desired flow rate. Select SET FLOW or press BACK to

return to the previous screen.

Setting a low signal

Send the low signal input to the pump, or enter the current value using the +/- keys.

m-qdos-en-02 74
