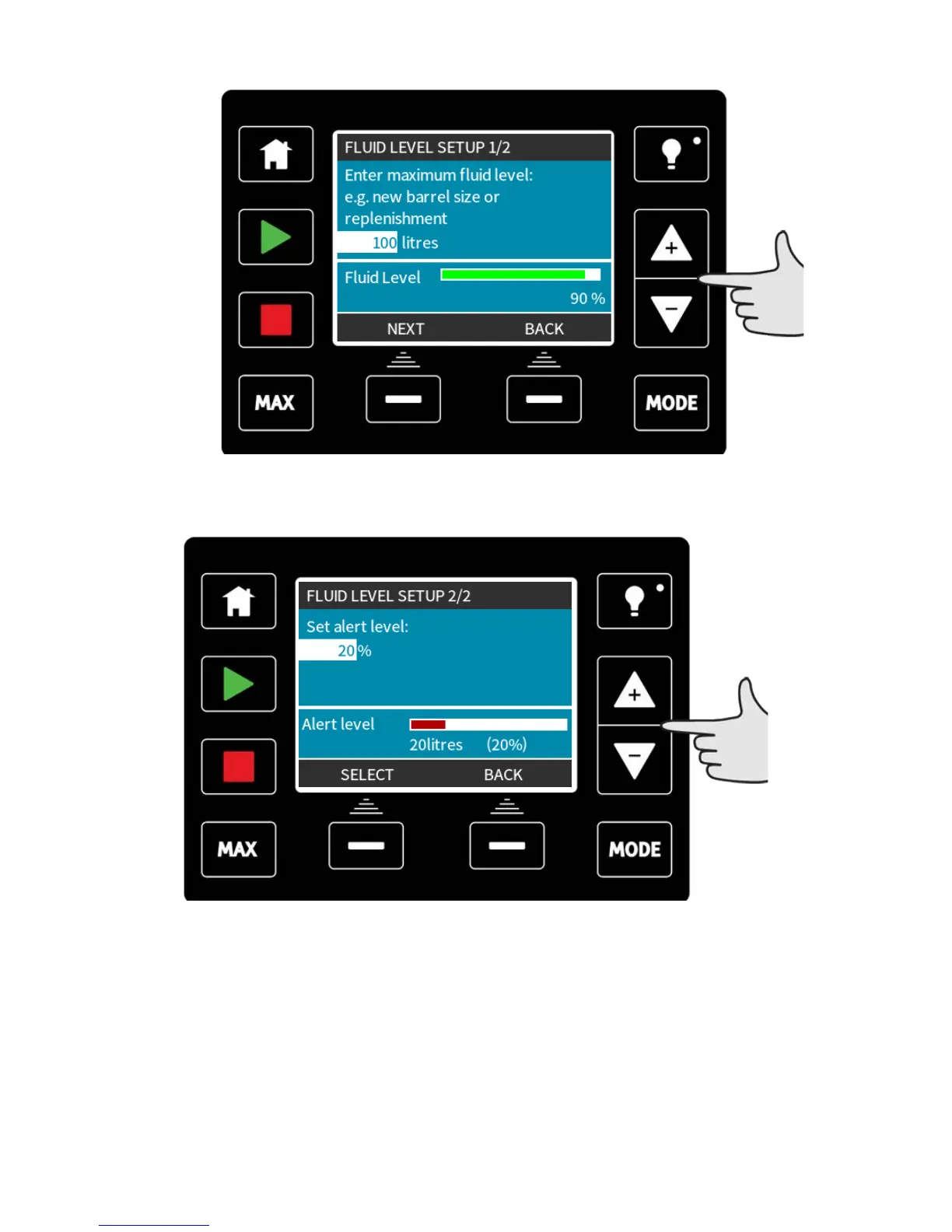

Enter the maximum level of your reservoir or supply container using the +/- keys to adjust

the volume.

Press NEXT when you are happy you have the correct volume.

Now use the +/- keys to set the alert level. In the screen above the alert level is set to

20%. Press SELECT to return to the fluid level monitor menu.

m-qdos-en-02 87
