Wazer Pro - Page 40

Quick Connect System
Make sure to fully seat the hose into the John-Guest Style fittings. You will feel a level
of resistance (the seal) that you need to push past until the hose is fully seated in the connection.
A total of about 1” (25mm) of hose should be inserted into the fitting.
Mark a line 1" (25mm) away from the end of the hose will help you seat the hose more easily.

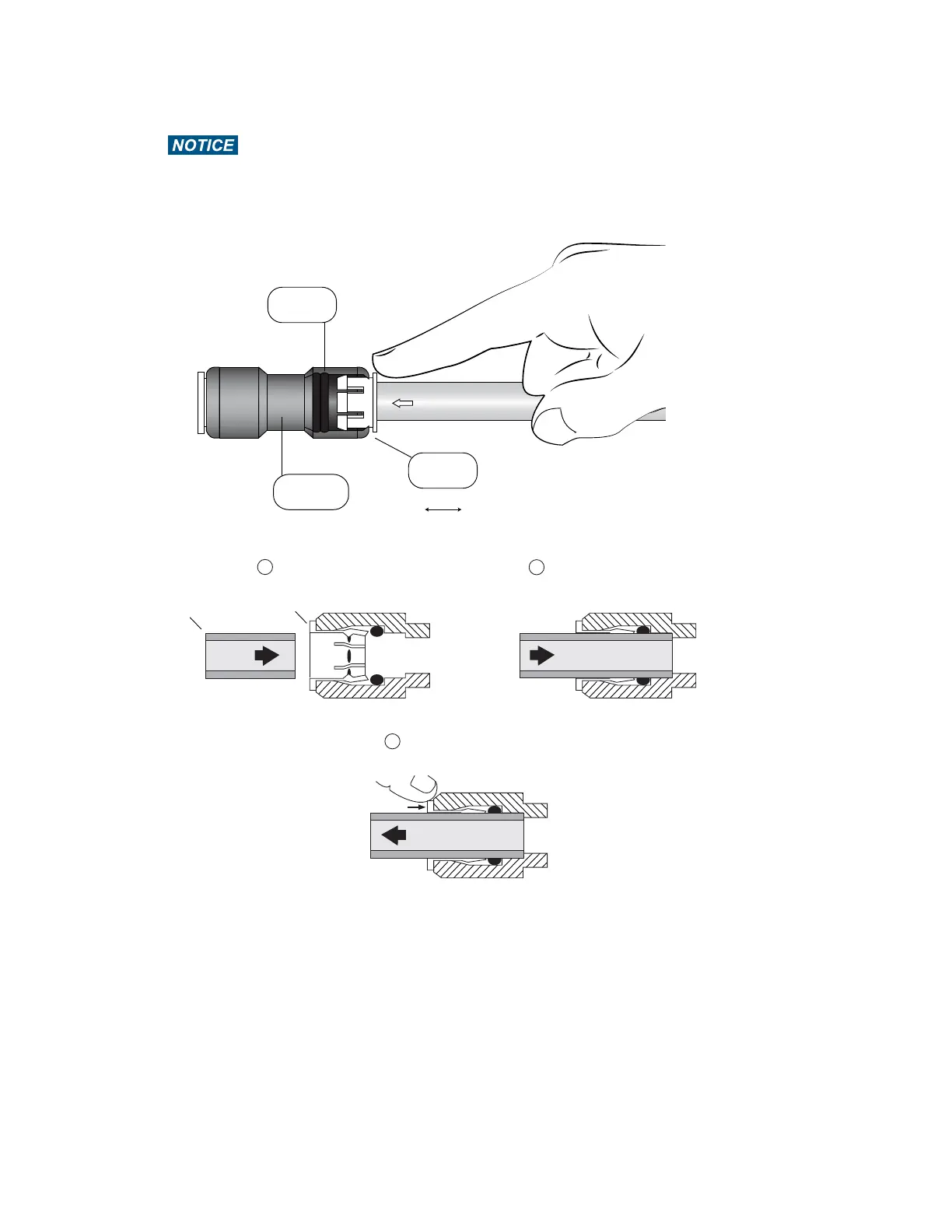

Hose
QC Fitting
Collet
push in to release
O-Ring
1
Push Hose straight
in as far as it will go.
2
Hose is secured
in position.
3
Push in collet to
release Hose.
Hose
Collet
