LPG CYLINDER INSTALLATION
WHERE DOES THE LPG
CYLINDER GO?

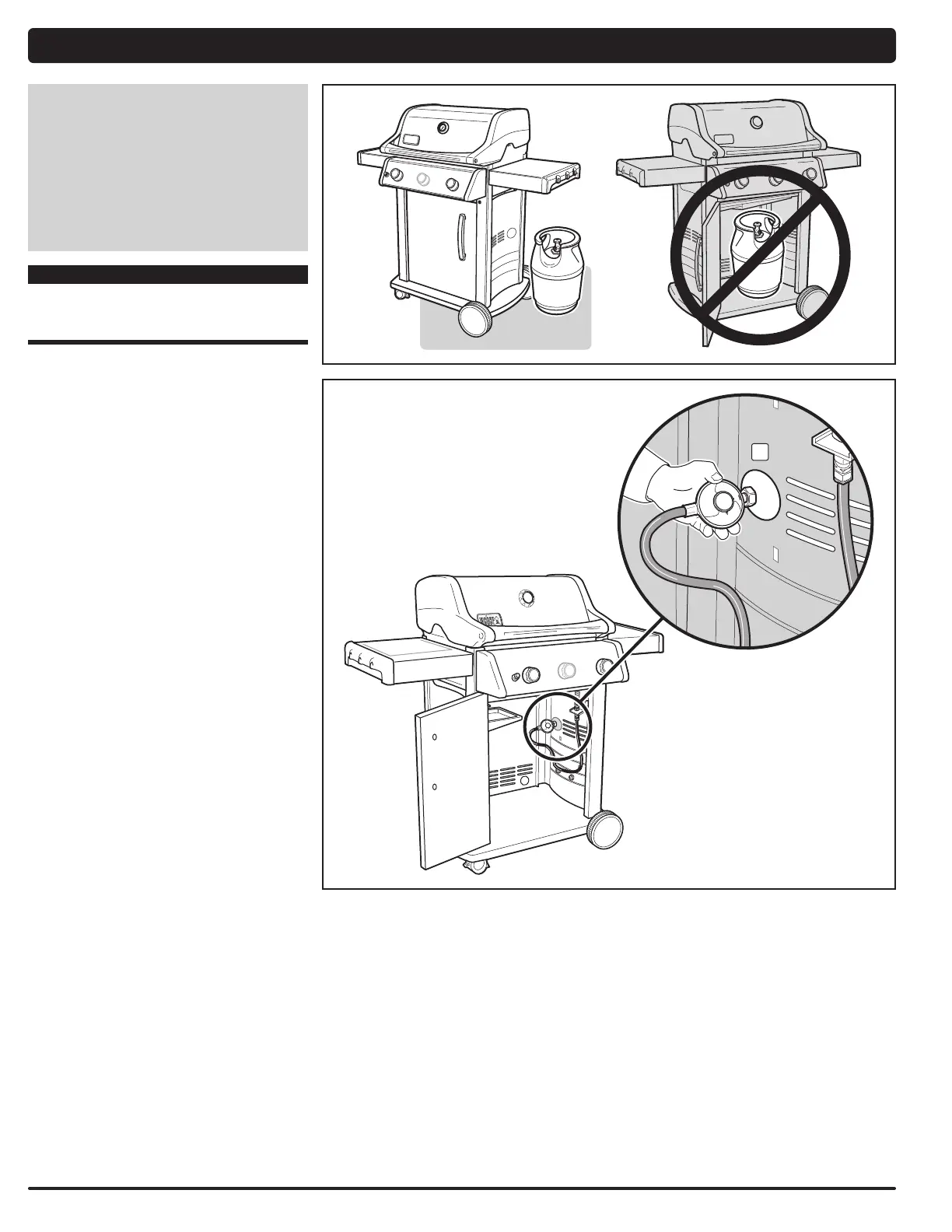

The cylinder must be placed
on the ground, towards the
rear, right-hand side of the
grill.
m DANGER
Do not store an extra (spare) or
disconnected gas supply cylinder under or
near this grill.
REQUIREMENTS FOR INSTALLATION
The maximum cylinder capacity is 13kg. The cylinder
must be placed on the ground towards the rear, right hand
side of the grill. Do not attempt to install a cylinder inside
the cabinet.
INSTALLATION ON GROUND
A) A hose and regulator should be supplied by your
retailer and must be connected to your grill. Follow
the instructions provided in your hosekit.
B) Open cabinet door.
C) Pass the hose and regulator out through the right
frame panel opening (1).
D) Place the cylinder on the ground, outside the cabinet,
on the right side of the grill.
E) Turn the LPG cylinder so the opening of the valve is
facing forward.
F) Connect the regulator to the cylinder. Refer to
“CONNECTING THE REGULATOR TO THE LPG
CYLINDER.”
1
