30 WWW.WEBER.COM
BURNER TUBE CLEANING
OR REPLACEMENT (continued)

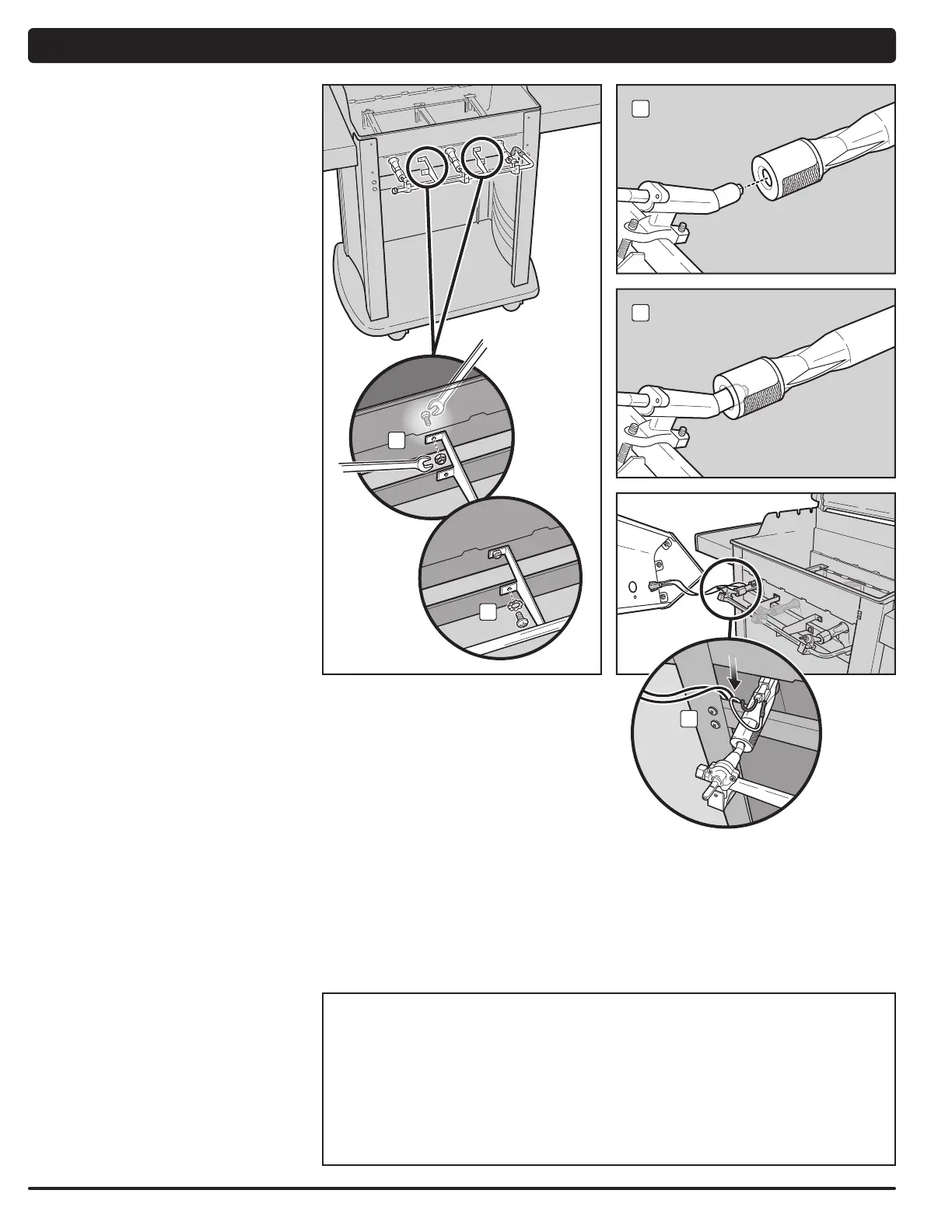

Reinstall Manifold
You will need: A Phillips screwdriver, two 7/16" spanners.
A) Align valves with burner tubes. Using two 7/16"
spanners, install bolts and nuts that secure manifold
to cookbox (1).
B) With a Phillips screwdriver, install screws and
washers that secure manifold to front cross brace (2).
If manifold was properly reinstalled, valves will now be
fully seated inside burner tubes.
m CAUTION: The burner tube openings (3)
must be positioned properly over the
valve orifices (4).
m WARNING: You should check for
gas leaks every time you disconnect
and reconnect a gas fitting. Refer to
CHECKING FOR GAS LEAKS.
C) Replace cookbox components (not pictured).
Reinstall Control Panel
You will need: A Phillips screwdriver.
A) Guide the two wires on back of control panel over
front cross brace and down into cabinet(5).
B) Align valve stems with holes in control panel. Position
top edge of control panel on tabs of frame assembly.
Push control panel down into position.
C) Fasten control panel with screws.
D) Place control knobs onto valve stems.
E) Connect the wires to the igniter module. Snap wires
back into wire clips on inside left panel. Refer to
“MAINTAINING THE ELECTRONIC CROSSOVER
™
IGNITION SYSTEM” for proper positioning.
m WARNING: Make sure that all parts
are assembled and hardware is fully
tightened before operating the grill.
Your actions, if you fail to follow this
product warning, may cause a fire, an
explosion, or structural failure resulting
in serious personal injury or death as
well as damage to property.
3
4
1
5
2
ANNUAL MAINTENANCE
STORAGE
For grills that have been stored for a while, it is important to follow these guidelines:
• The gas must be turned off at the LPG cylinder when the Weber
™
gas grill is not in use.
• If storing the Weber
™
gas grill indoors, first DISCONNECT the gas supply and store the LPG cylinder outdoors
in a well-ventilated space.
• Do not store a disconnected LPG cylinder in a building, garage, or any other enclosed area.
• If you do not disconnect the LPG cylinder from the Weber
™
gas grill, be sure to keep both the grill and the
cylinder outdoors in a well-ventilated area.
• Check that the areas under the control panel and the slide-out grease tray are free from debris that might
obstruct the flow of combustion or ventilation air.
