3
Installation and Connection
CF
W-
1
1 R
B | 3-5
C
B
A
D
D
A
B
C
D
Model
mm
(in)
mm
(in)
mm
(in)
mm
(in)
Fra
m
e Si
ze E
15
0
(5.91
)
250
(9.
8
4)
20
(
0
.78
)
80
(
3
.1
5
)
T
o
le
ra
nc
e: ±
1
.0 m
m (±0.03
9 in).

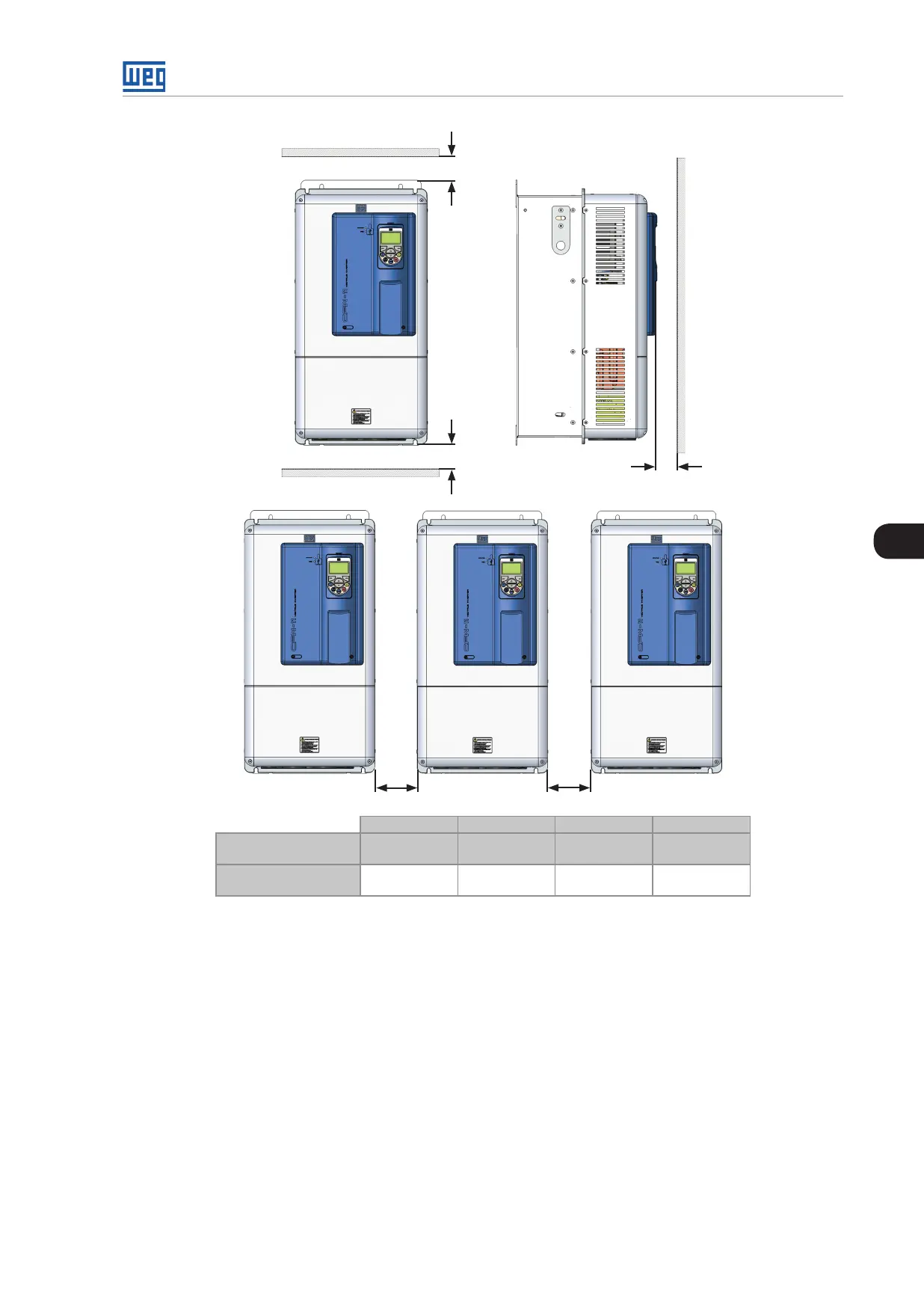

Figure 3.3:
Free spaces around converter for ventilation - frame size E
24
26
Table of Contents
Table of Contents
4
Safety Instructions
6
Safety Warnings in the Manual
6
Safety Warnings in the Product
6
Preliminary Recommendations
6
General Instructions
8
About the Manual
8
Terms and Definitions Used in the Manual
8
About the Cfw-11 Rb
10
Identification Labels for the Cfw-11 Rb
16
Cfw-11 Rb Model Specification (Smart Code)
19
Receiving and Storage
20
Installation and Connection
21
Mechanical Installation
21
Installation Environment
21
Mounting Considerations
22
Cabinet Mounting
27
Installation of the Converter Hoisting Eyes - Frame Size E
28
Access to the Control and Power Terminal Strips
29
Removal of the Cable Passage Plate - Frame Size E
31
HMI Installation at the Cabinet Door or Command Panel (Remote HMI)
31
Electrical Installation
32
Identification of the Power and Grounding Terminals
32
Pre-Charge Circuit
35
Power/Grounding Wiring and Fuses
37
Power Connections
45
Input Connections
46
Grounding Connections
46
Input Filter
47
Basic Definitions
47
How to Specify the Filter Model
48
Synchronism
49
Control Connections
50
Typical Control Connection
53
Installation According to the European Directive of Electromagnetic Compatibility
54
Conformal Installation
54
Standard Definitions
55
Emission and Immunity Levels
56
RFI Filters
57
Hmi
59
Integral Keypad - Hmi - Cfw-11 Rb
59
Parameters Organization
62
First Time Power-Up and Start-Up
63
Preparations for the Start-Up
63
Procedures for the First Time Power-Up/Start-Up
63
Start-Up
64
Password Setting in P0000
64
Oriented Start-Up
64
Setting Date and Time
66
Blocking Parameters Modification
66
How to Connect to a Pc
67
Flash Memory Module
67
Troubleshooting and Maintenance
68
Operation of the Faults and Alarms
68
Faults, Alarms, and Possible Causes
69
Solutions for the most Frequent Problems
71
Information for Contacting Technical Support
71
Preventive Maintenance
71
Cleaning Instructions
72
Option Kits and Accessories
74
Option Kits
74
VDC External Control Power Supply
74
Accessories
75
Technical Specifications
77
Power Data
77
Electronics/General Data
83
Codes and Standards
83
Mechanical Data
84
