WEG CFW-11 RB User Manual

3
Installation and Connection
CFW-11 RB | 3-11

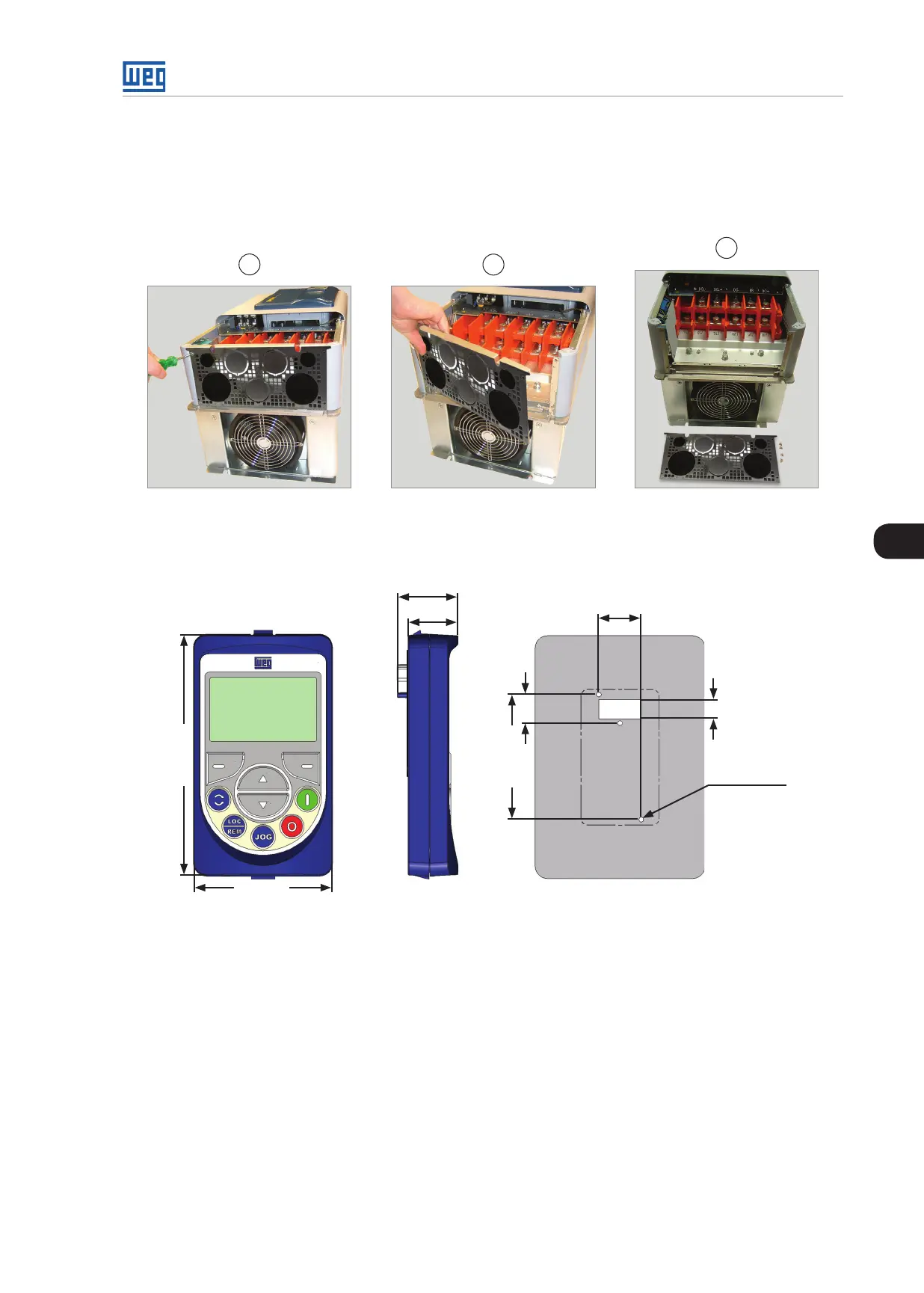

3.1.6 Removal of the Cable Passage Plate - Frame Size E
When it is not necessary neither IP20 nor Nema1 protection degree, the cable passage plate may be removed in
order to make the converter electric installation easier. Remove the four M4 screws, according to the procedure
presented in Figure 3.12 on page 3-11.
3
2
1
Figure 3.12: Removal of the cable passage plate - frame size E
3.1.7 HMI Installation at the Cabinet Door or Command Panel (Remote HMI)
28,5 [1.12]
23,5 [0,93]
35,0 [1.38]
16,0 [0.63]
103,0 [4.06]
23,4 [0.92]
113,0 [4,45]
65,0 [2.56]
Ø4,0 [0.16] (3X)
Figure 3.13: Data for the HMI installation at the cabinet door or command panel – mm [in]
The keypad frame accessory can also be used to fix the HMI as mentioned in the Table 7.1 on page 7-3.
