Frame Sizes F and G:
In order to get access to the control terminals, it is necessary to remove the HMI and the control rack cover, as
showed in Figure 3.9 on page 3-10.
1 2 3

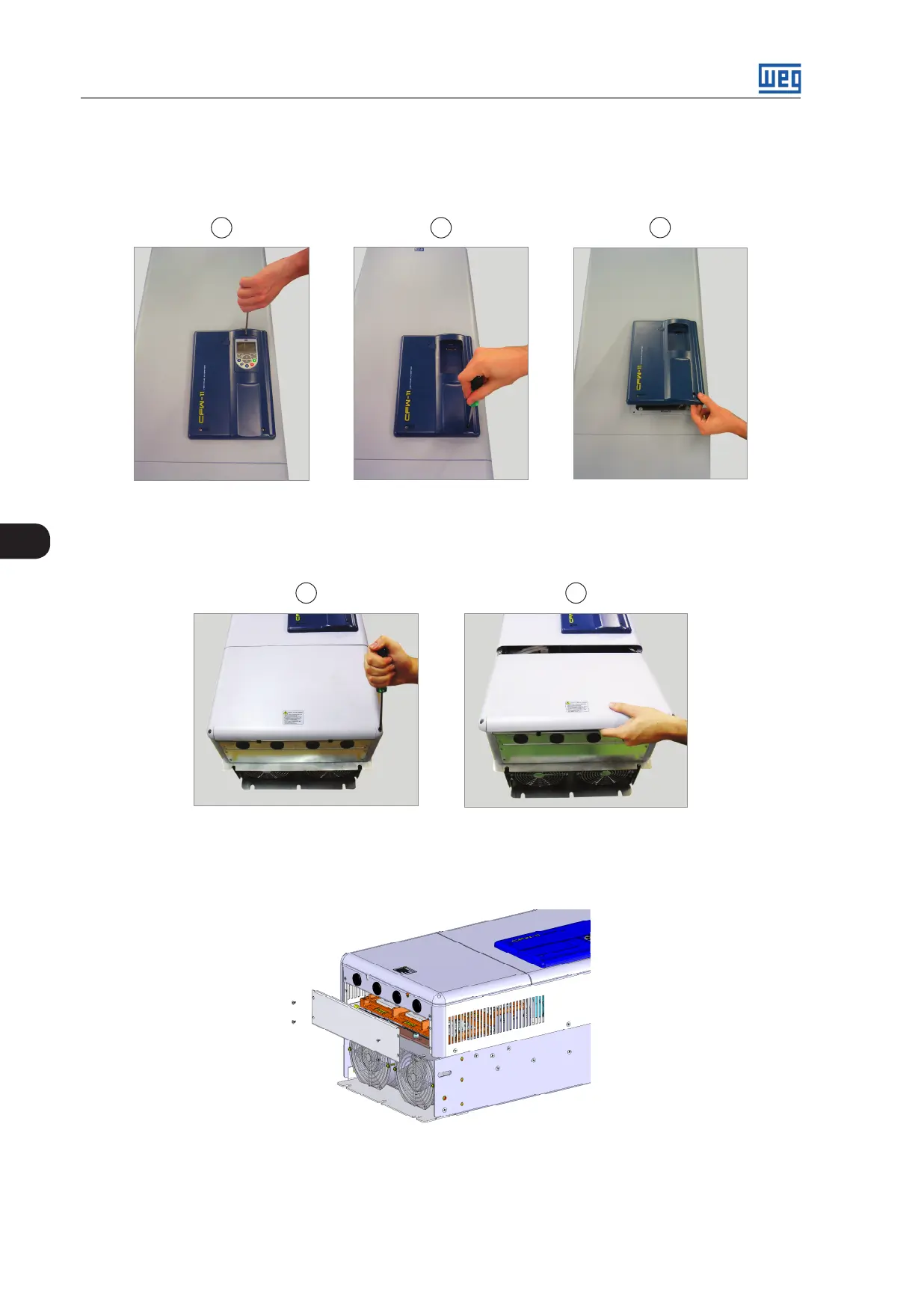

Figure 3.9: Removal of the HMI and the control rack cover - frame sizes F and G
In order to get access to the power terminals, it is necessary to remove the bottom front cover, as shown in
Figure 3.10 on page 3-10.
1 2
Figure 3.10: Removal of the bottom front cover to access the power terminals - frame sizes F and G
In order to connect the power cables (line and motor), remove the bottom plate, as shown in Figure 3.11 on page
3-10. In this case the protection degree of the converter bottom part will be reduced.
Figure 3.11: Removal of the bottom plate, to access the power terminals - frame sizes F and G
