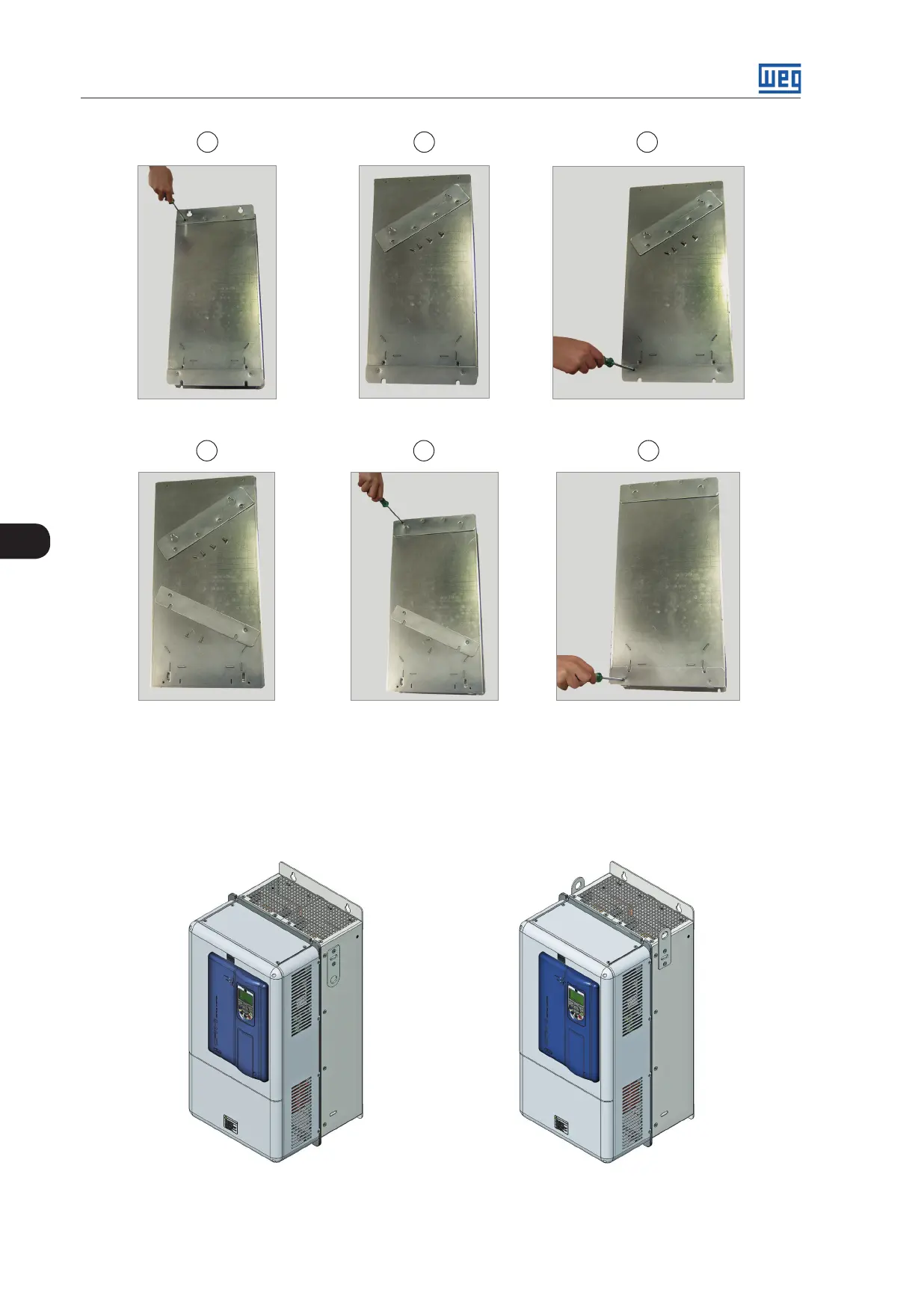

Figure 3.5: Repositioning the mounting supports - frame size E
3.1.4 Installation of the Converter Hoisting Eyes - Frame Size E
Two hoisting eyes for the converter lifting, which are mounted at the converter sides (rear part), are supplied. By
inverting their position, as shown in Figure 3.6 on page 3-8, two points for hoisting the converter, which are very
useful during the mechanical installation of the converter, are obtained.
Figure 3.6: Installation of the converter hoisting eyes frame size E
