Powering up and Startup
5-4 | CFW-11 RB
5.3 SETTING DATE AND TIME
Step Action/Result Display Indication Step Action/Result Display Indication
1
 Monitoring Mode
 Press "Menu" (“right
soft key”)
Run RB + LOC 618V
16:10 Menu
400 A
618 V
380 V
6
 Parameter “Day
P0194” is already
selected
 If needed, set P0194
according to the actual
day. To do so, press
“Select” and then
or to
change P0194 value
 Follow the same steps
to set parameters
"Month P0195" to
"Seconds P0199"
Run RB + LOC 618V
Return 16:10 Select
Day
P0194: 06
Mes
P0195: 10
2
 Group "00 ALL
PARAMETERS" is
already selected
Run RB + LOC 618V
Return 16:10 Select
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
7
 Once the setting of
P0199 is over, the Real
Time Clock is now
updated.
 Press "Return" (left
soft key)
Run RB + LOC 618V
Return 18:11 Select
Minutes
P0198: 11
Seconds
P0199: 34
3
 Group "01
PARAMETER
GROUPS" is selected
 Press "Select"
Ready RB + LOC 618V
Return 13:48 Select
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
8
 Press "Return"
Run RB + LOC 618V
Return 18:11 Select
20 DC Link Voltage
21 Control
22 HMI
23Analog Inputs
4
 A new list of groups is
displayed and group
"20 DC Link Voltage"
is selected
 Press until
you reach group "22
HMI"
Run RB + LOC 618V
Return 16:10 Select
20 DC Link Voltage
21 Control
22 HMI
23 Analog Inputs
9
 Press "Return"
Run RB + LOC 618V
Return 18:11 Select
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
5
 Group "22 HMI" is
selected
 Press "Select"
Run RB + LOC 618V
Return 16:10 Select
20 DC Link Voltage
21 Control
22 HMI
23Analog Inputs
10
 The display returns to
the Monitoring Mode
Run RB + LOC 618V
18:11 Menu
400 A
618 V
380 V

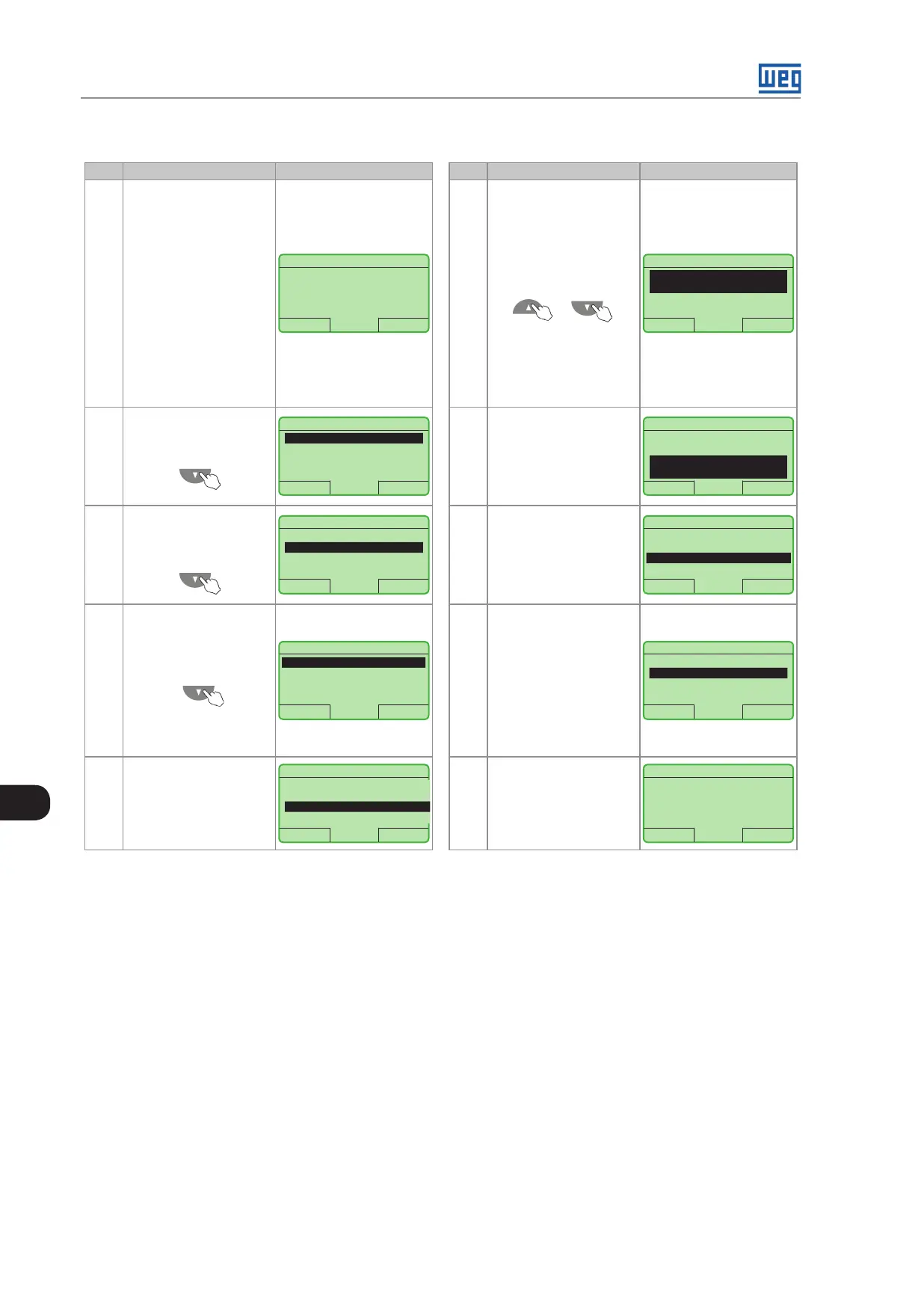

Figure 5.3: Setting date and time
5.4 BLOCKING PARAMETERS MODIFICATION
To prevent unauthorized or unintended parameters modification, parameter P0000 should be set to a value different
from 5. Follow the same procedures described in Item 5.2.1 Password Setting in P0000 on page 5-2 . Refer to
P0200 at the programming manual to know how to change the password.
