Installation and Connection
CFW-11 RB | 3-13
Grounding
Synchronism
terminal
(a) Terminals for AC power supply
DC-
DC+
(b) Terminals for output inverter conection

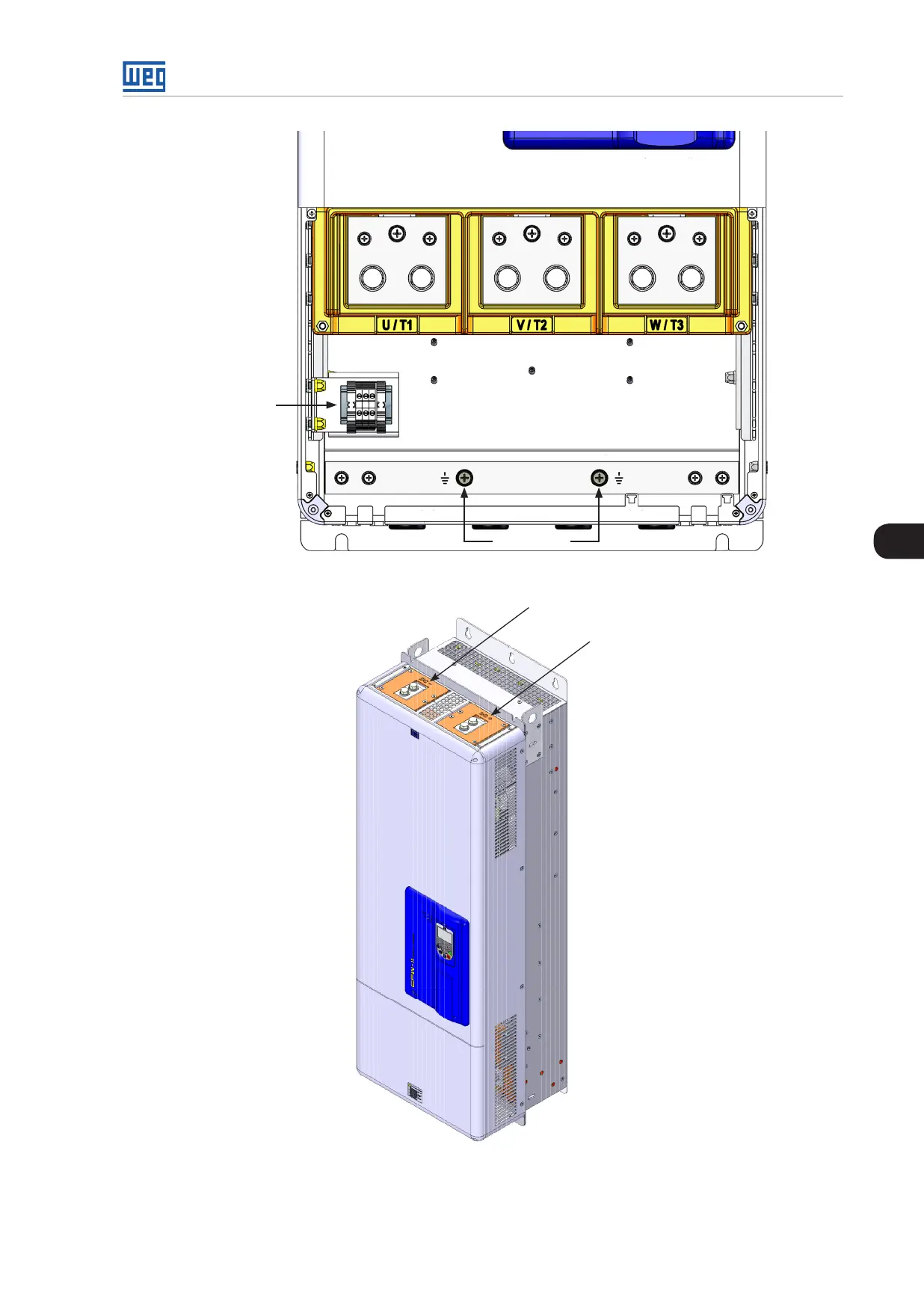

Figure 3.15: (a) and (b) - Grounding, synchronism and power terminals of frame size F models
