Weiler E1250 - ELECTRICAL COMPONENTS

WEILER E1250
1-11
General Information
1

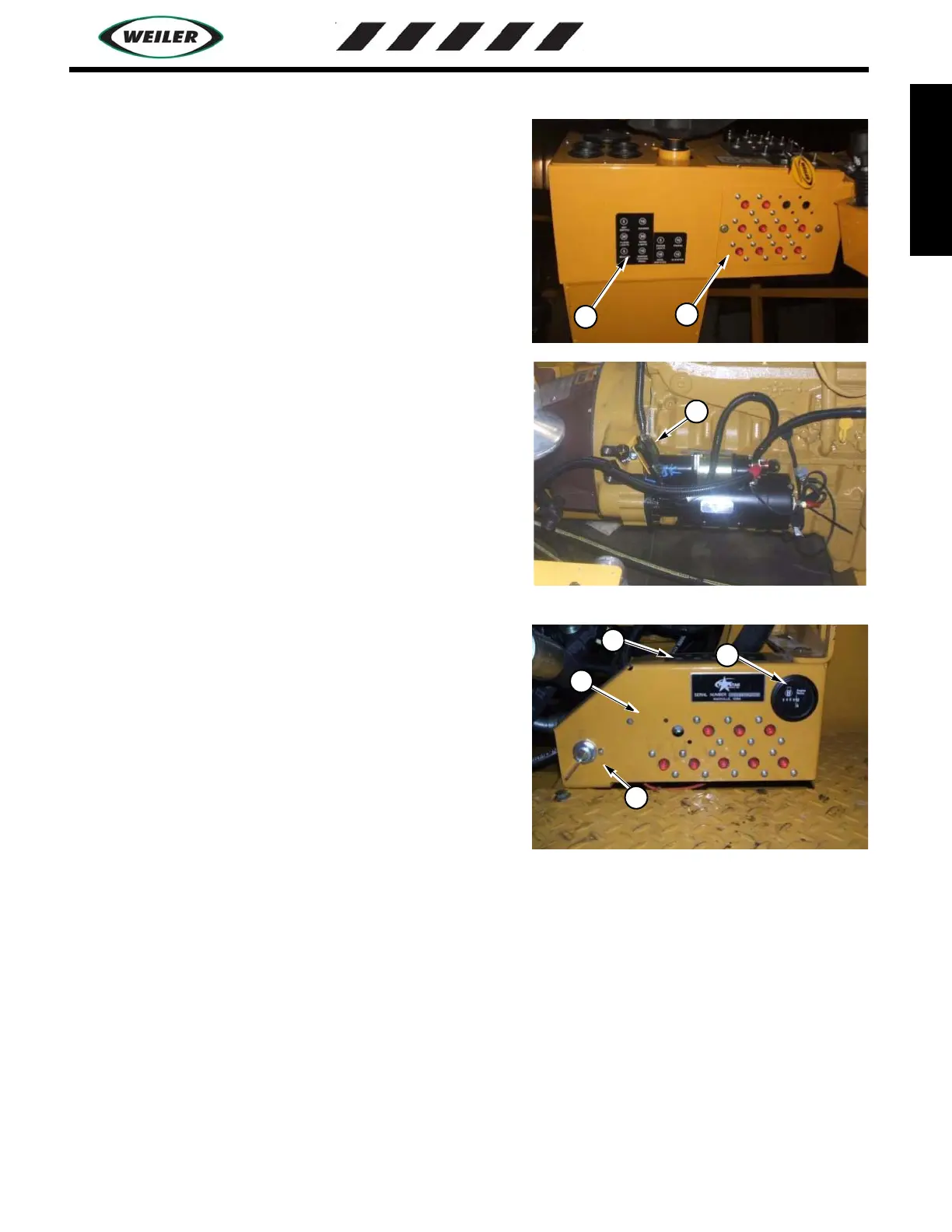

Electrical Components - Locations and Functions
1. Operators Station Circuit Breaker Panel
2. Operators Station Circuit Breaker Decal
3. Cold Start Circuit Breaker - Located on the front side of the
engine mounted to a bracket on the bell housing.
4. Main Circuit Breaker Panel
5. Main Circuit Breaker Panel Decal
6. Hour Meter
GROUND DISCONNECT SWITCH (7)
Located inside the right access door above the battery box on the
circuit breaker panel.
When in the “off” (vertical) position the ground circuit to the batteries is opened. Turn switch off and remove key
when the machine will be parked for long time periods or while servicing. To operate the machine turn switch on.
Operator station CB Panel
1
2
Cold Start CB
3
Main CB Panel and ground disconnect switch
4
5
6
7
