WEILER E1250
3-4
Maintenance
3
CHAIN ADJUSTMENT
ELEVATOR CHAIN

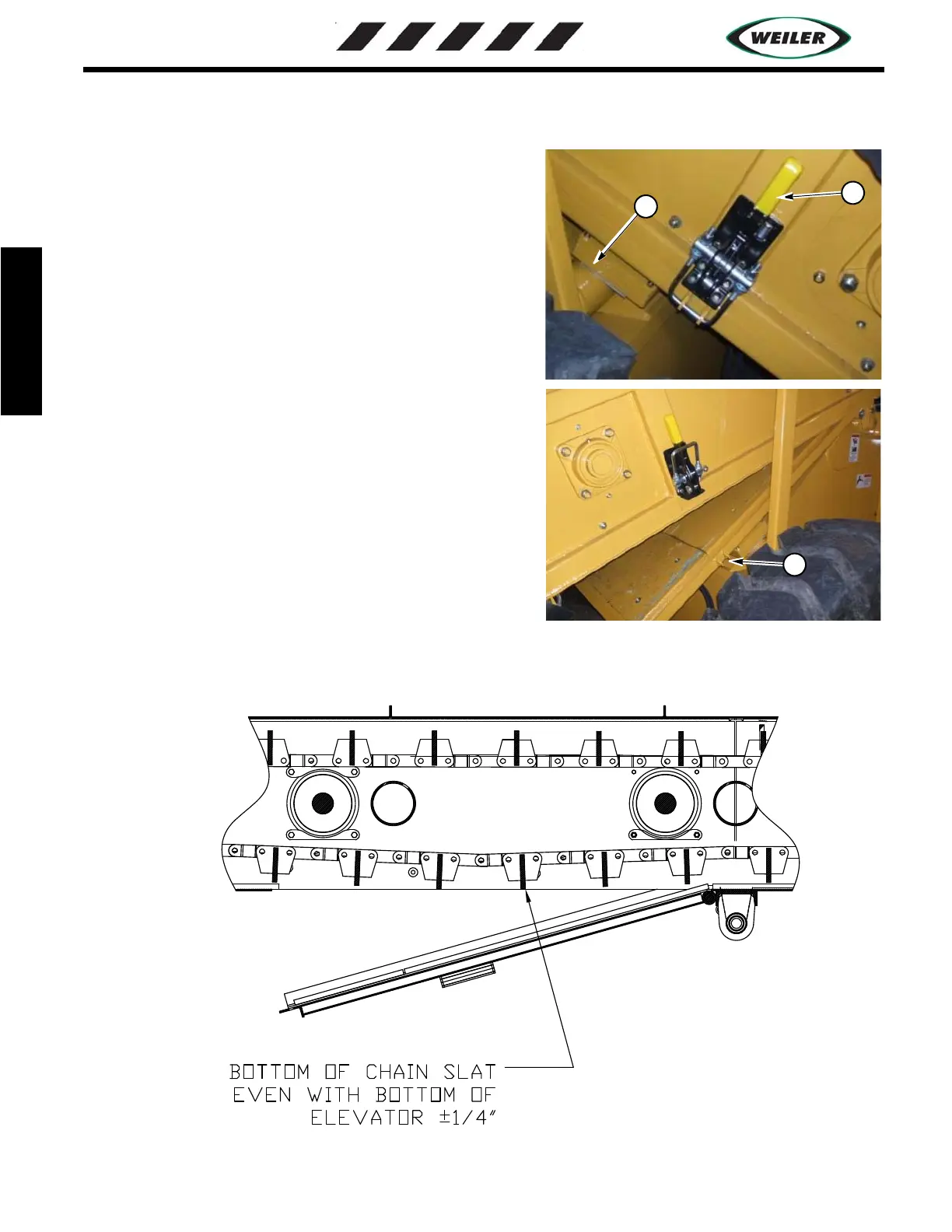

1. Open elevator clean out door, as described in the following
steps.
a. Lower elevator to ground (until stops (1) hit frame tube)
b. Loosen clean out latches (2).
c. Raise elevator to open door (3).
2. Chain slack in the door opening should be flush with the
bottom of the frame flange (+/- 1/4”) on the edge of the slat. See
detail.
