WEILER E1250
1-12
General Information
1
ENGINE COMPONENTS

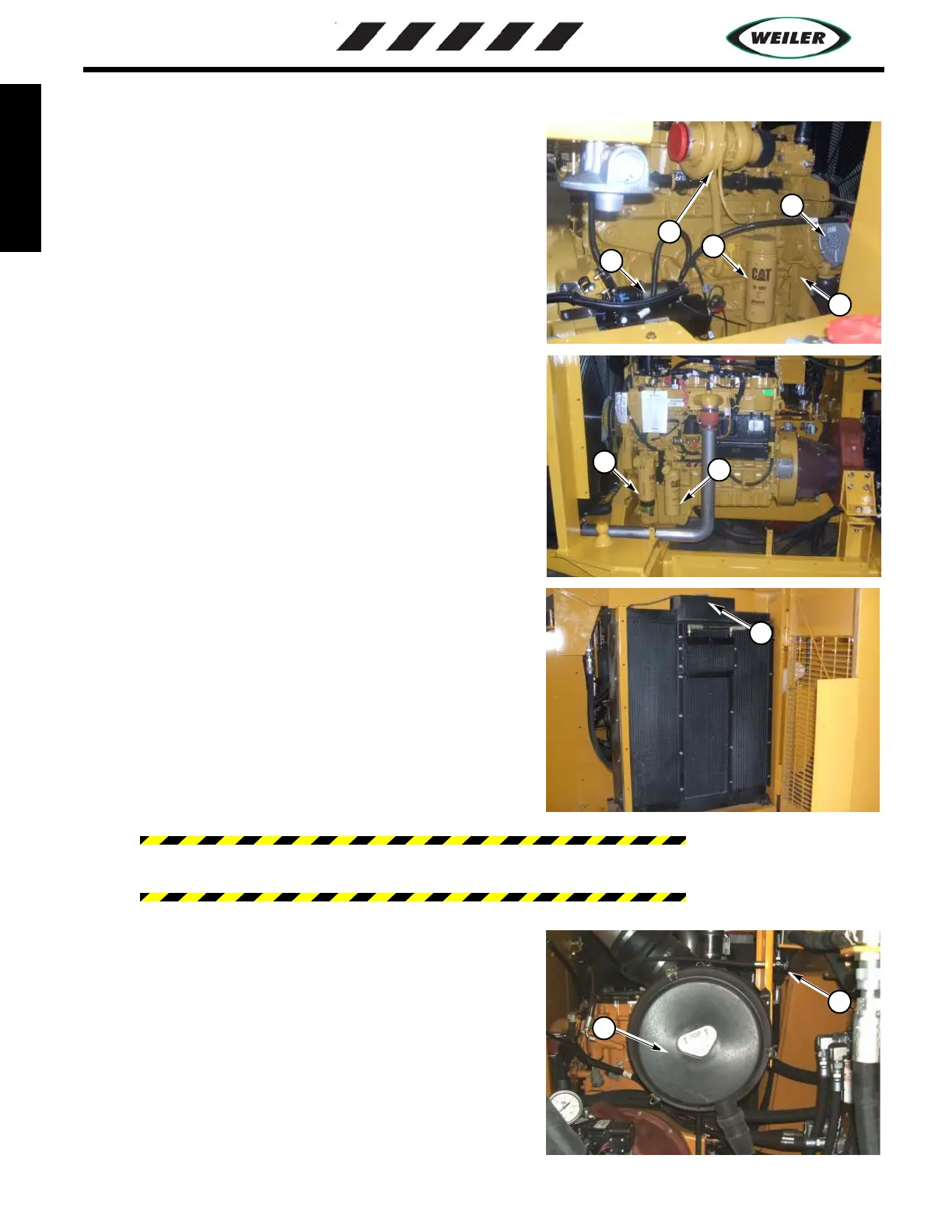

1. Engine Oil Dipstick
2. Engine Oil Filter
3. Alternator
4. Starter
5. Turbo
6. Fuel Filter
7. Fuel Water Separator Fuel Filter
8. Radiator Fill
CAUTION: Refill or check the radiator only when the engine is OFF. Turn cap slowly to the first
stop to relieve the pressure before removing the cap, if engine is hot.
9. Air Filter
10. Air Filter Service Indicator - Indicator will show “RED”
when filter change is needed. Press button the reset.
Front of Engine
3
5
2
1
4
Rear of Engine
7
6
Radiator Fill
8
Air Filter
9
10
