Weiler E1250 - HYDRAULIC SYSTEM

WEILER E1250
1-13
General Information
1

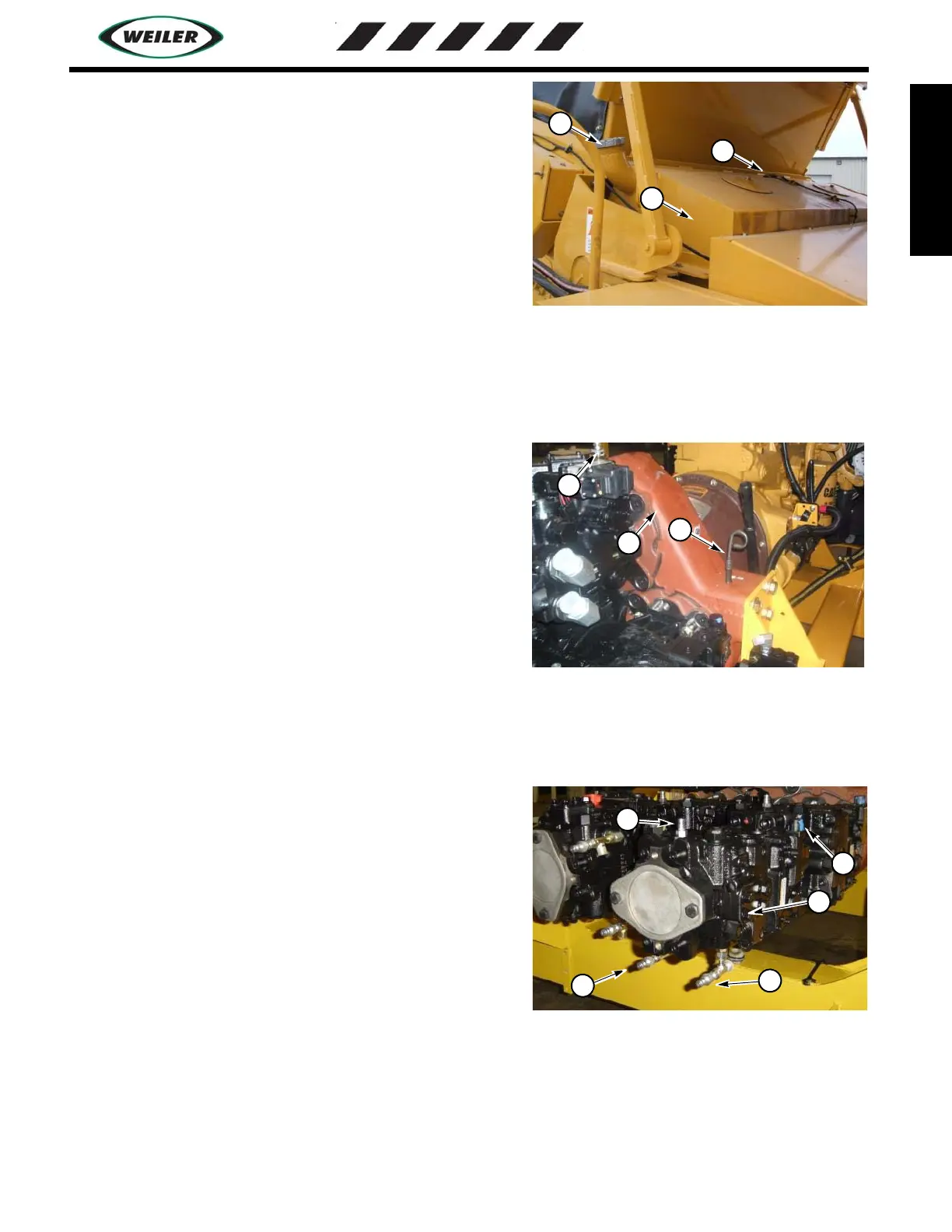

11. Fuel Tank
12. Fuel Level Sender
13. Locking Fuel Cap
HYDRAULIC SYSTEM
CLUTCH AND PUMP DRIVE
1. Clutch Engagement Lever - Push towards the engine to
engage. Pull away from the engine to disengage the clutch.
IMPORTANT: Warm the engine up before engaging the
clutch. When engaging the clutch, engage the clutch quickly to
avoid slipping of the clutch and clutch damage.
2. Pump Drive Gearbox
3. Pump Drive Gearbox Dipstick
4. Pump Drive Gearbox Vent
GROUND DRIVE PUMPS
1. Front Ground Drive Pump
2. Manual Overide - Front Ground Drive Pump
3. System Pressure Test Port - Front Ground Drive Pump.
Pressure should measure 350psi in neutral, with 6090 psi MAX
operating pressure.
4. Charge Pressure Test Port - Front Ground Drive Pump.
Pressure should measure 350psi
Fuel Tank
12
11
13
Pump Drive Picture
4
3
2
Front Ground Drive Pump Picture
1
3
3
4
2
