WEILER E1250
1-14
General Information
1

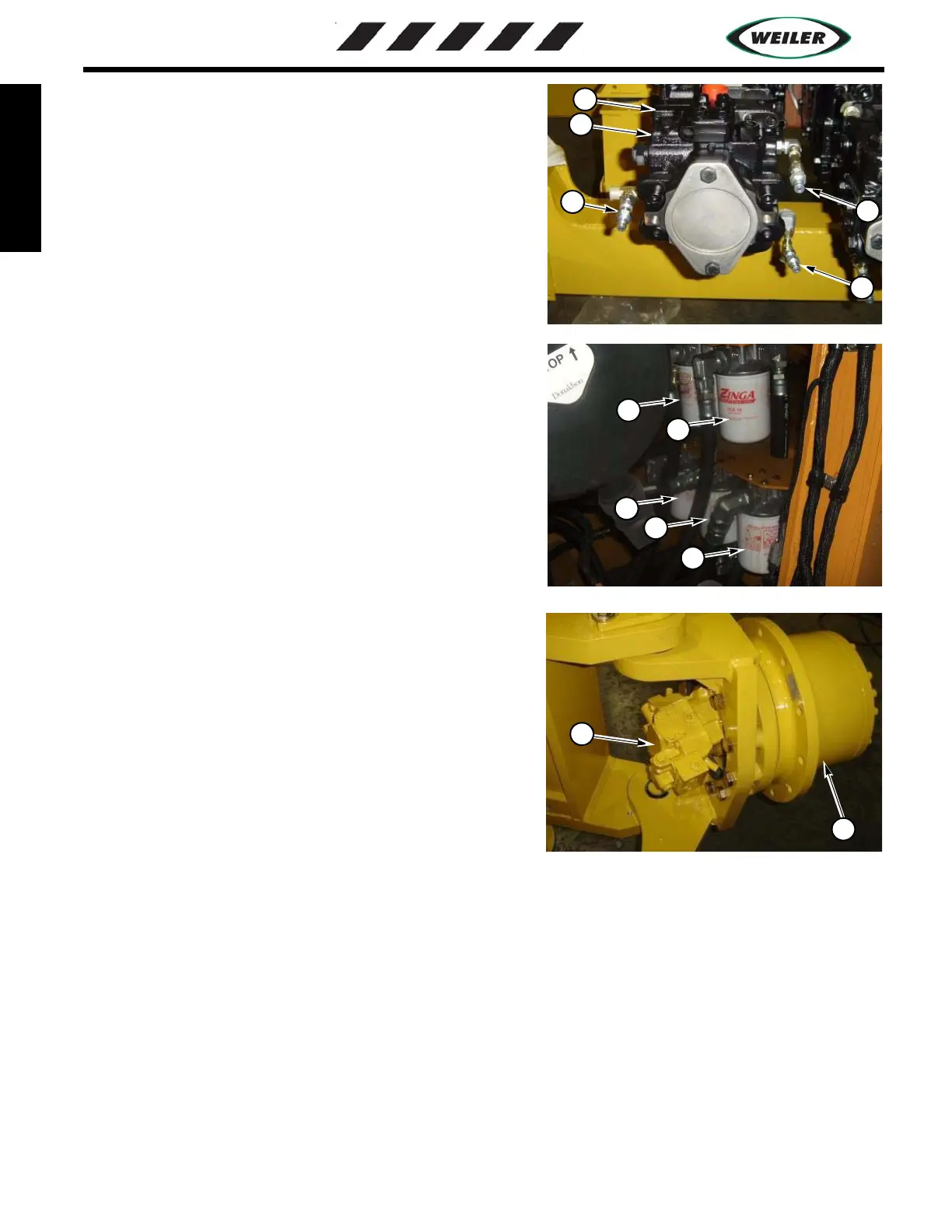

5. Rear Ground Drive Pump
6. Manual Overide - Rear Ground Drive Pump
7. System Pressure Test Port - Rear Ground Drive Pump.
Pressure should measure 350psi in neutral, with 6090 psi MAX
operating pressure.
8. Charge Pressure Test Port - Rear Ground Drive Pump. Pressure
should measure 350psi
9. Suction Filter - Front Ground Drive Pump
10. Suction Filter - Rear Ground Drive Pump
11. Suction Filter - Elevator Pump
12. Suction Filter - Conveyor Pump
13. Suction Filter - Remix Pump(Optional)
GROUND DRIVE MOTOR
1.. Ground Drive Motor - One motor powers each wheel.
2. Ground Drive Planetary- One planetary on each wheel.
Rear Ground Drive Pump Picture
5
7
7
6
8
Suction Filters
13
11
12
10
9
1
2
