WEILER E1250
1-15
General Information
1

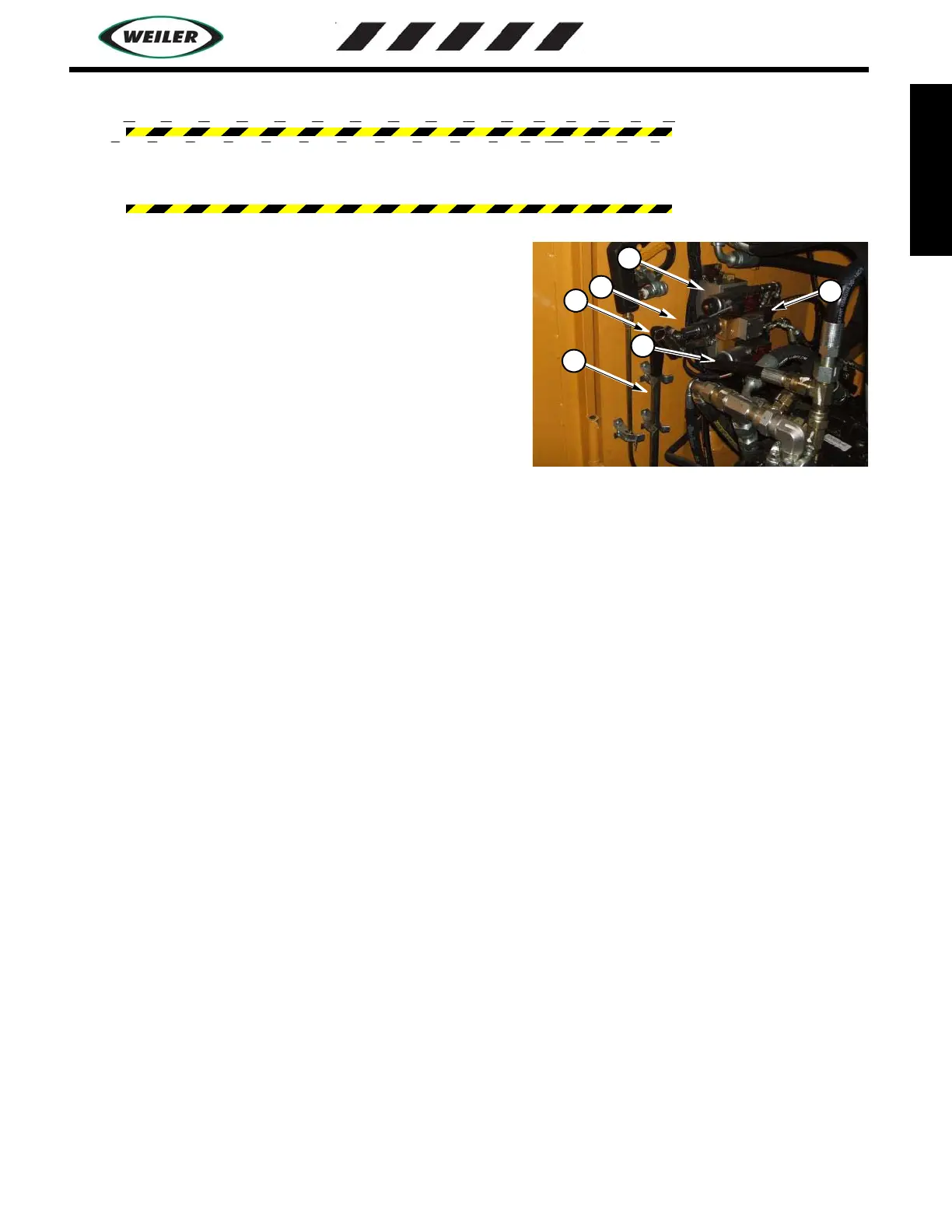

PARK BRAKE/2-SPEED VALVE
DANGER: Follow MachineTowing instructions regarding safe manual brake release. DO NOT
ATTEMPT to manually release brakes until machine is properly secured, or machine may roll and
cause injury.
1. Park Brake Release Spool
2. Park Brake Release Override Knob- Used when manually
realeasing park brakes.
3. Manual Brake Release Pump - Pump to release brakes
4. Manual Brake Release Relief Valve - 450 psi relief valve to
keep from over pressuring park brake circuit.
5. Manual Park Brake Handle
6. 2-Speed Shift Spool
Park Brake Valve
4
6
5
1
2
3
