WEILER E1250
1-16
General Information
1

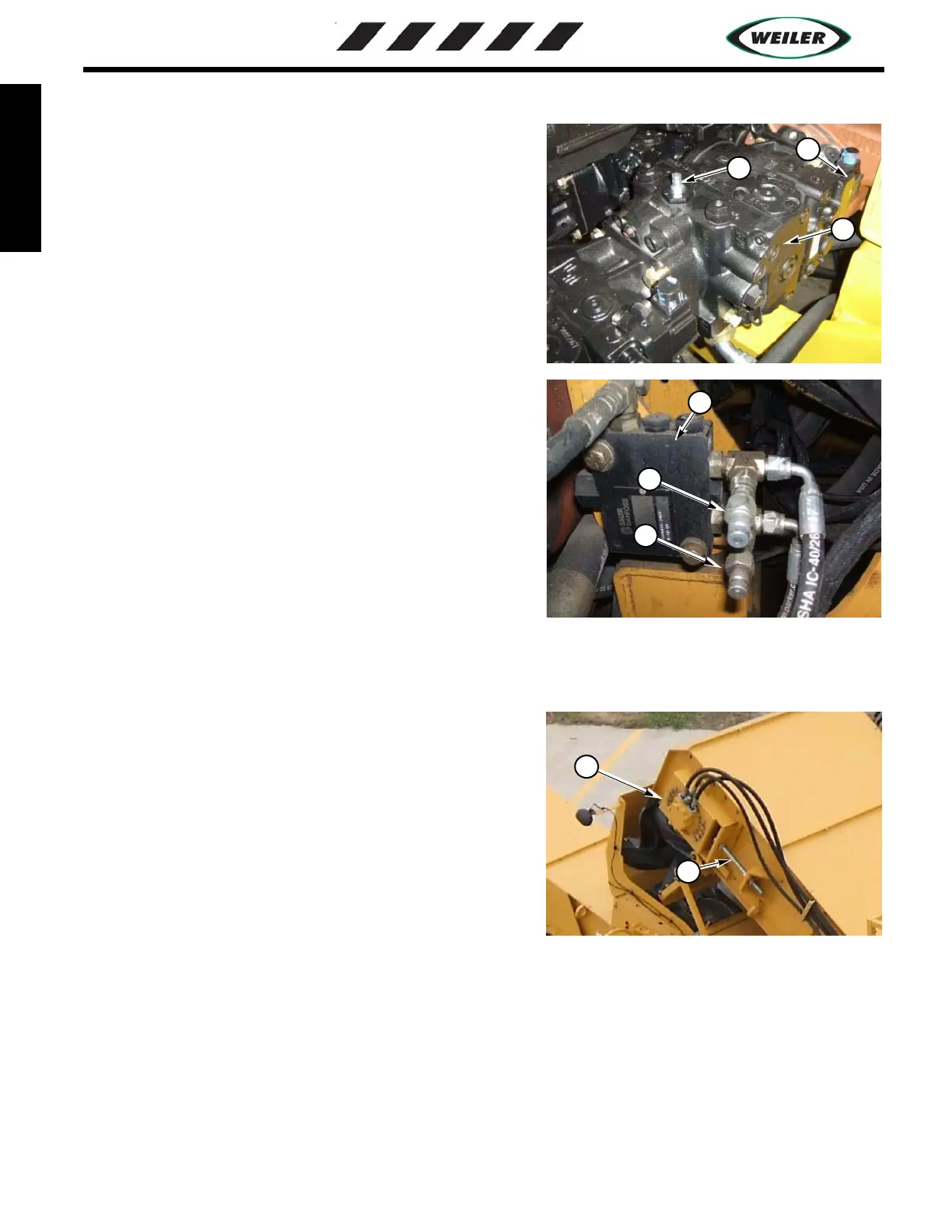

ELEVATOR PUMP
1. Elevator Pump
2. Manual Override - Elevator Pump
3. Charge Pressure Test Port Elevator Pump - Pressure should
measure 350psi
4. Loop Flush Valve - Elevator Pump
5.Pressure Test Port Elevator Pump - Pressure should measure
350psi in neutral, with 6090 psi MAX operating pressure.
ELEVATOR MOTORS
1. Elevator Motors - One on each side of elevator headshaft.
2. Take-up Adjustment - One on each side of the elevator. Used
for tensioning the chain.
Elevator Pump
3
1
2
Loop Flush Valve
5
5
4
Elevator Poclain
1
2
