WEILER E1250
1-17
General Information
1

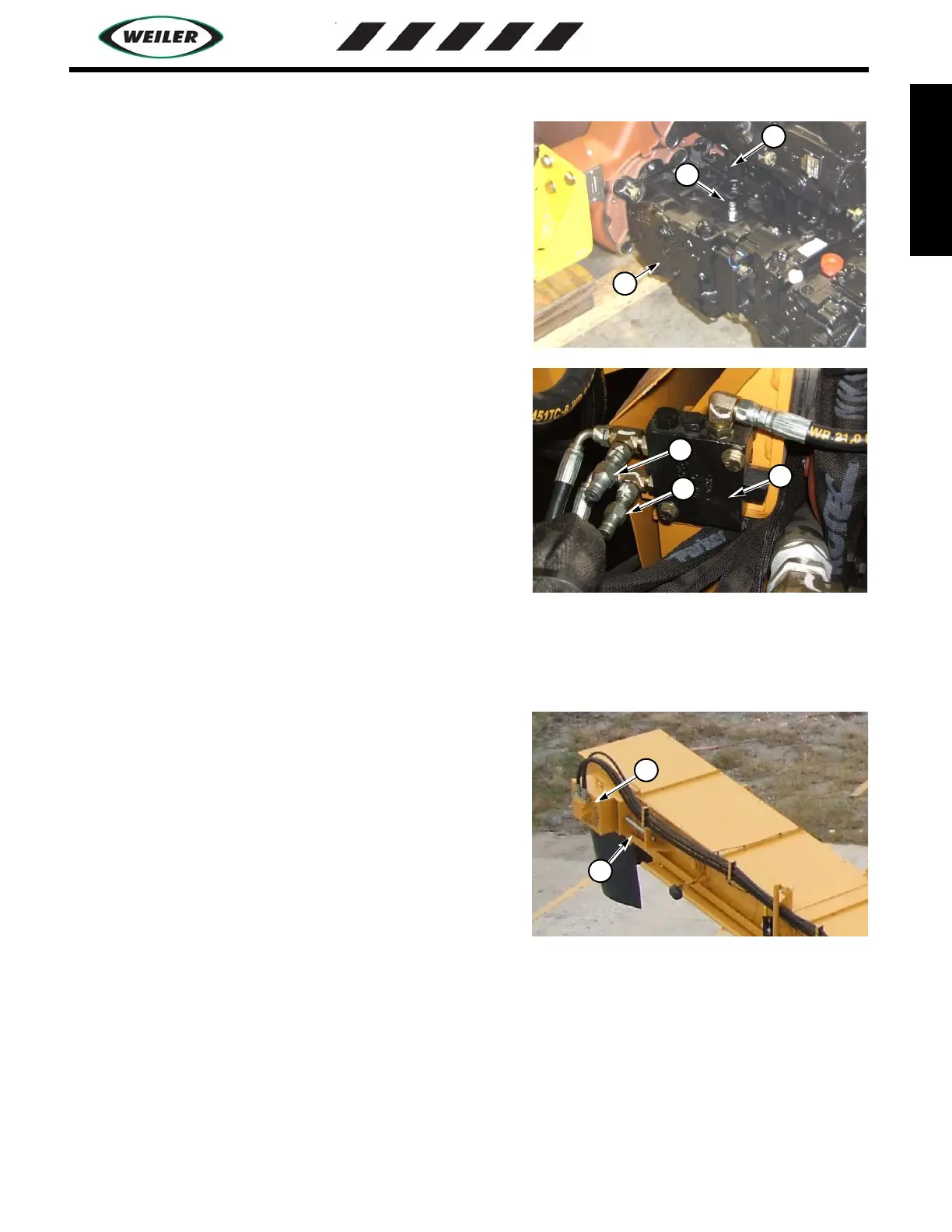

CONVEYOR PUMP
1. Conveyor Pump
2. Manual Override - Conveyor Pump
3. Charge Pressure Test Port Conveyor Pump -Pressure should
measure 350psi
4. Loop Flush Valve - Conveyor Pump
5.Pressure Test Port Elevator Pump - Pressure should measure
350psi in neutral, with 6090 psi MAX operating pressure.
CONVEYOR MOTOR
1. Conveyor Motor
2. Take-up Adjustment - One on each side of the elevator. Used
for tensioning the chain.
Conveyor Pump
1
3
2
Loop Flush Valve
5
5
4
Conveyor Poclain
1
2
