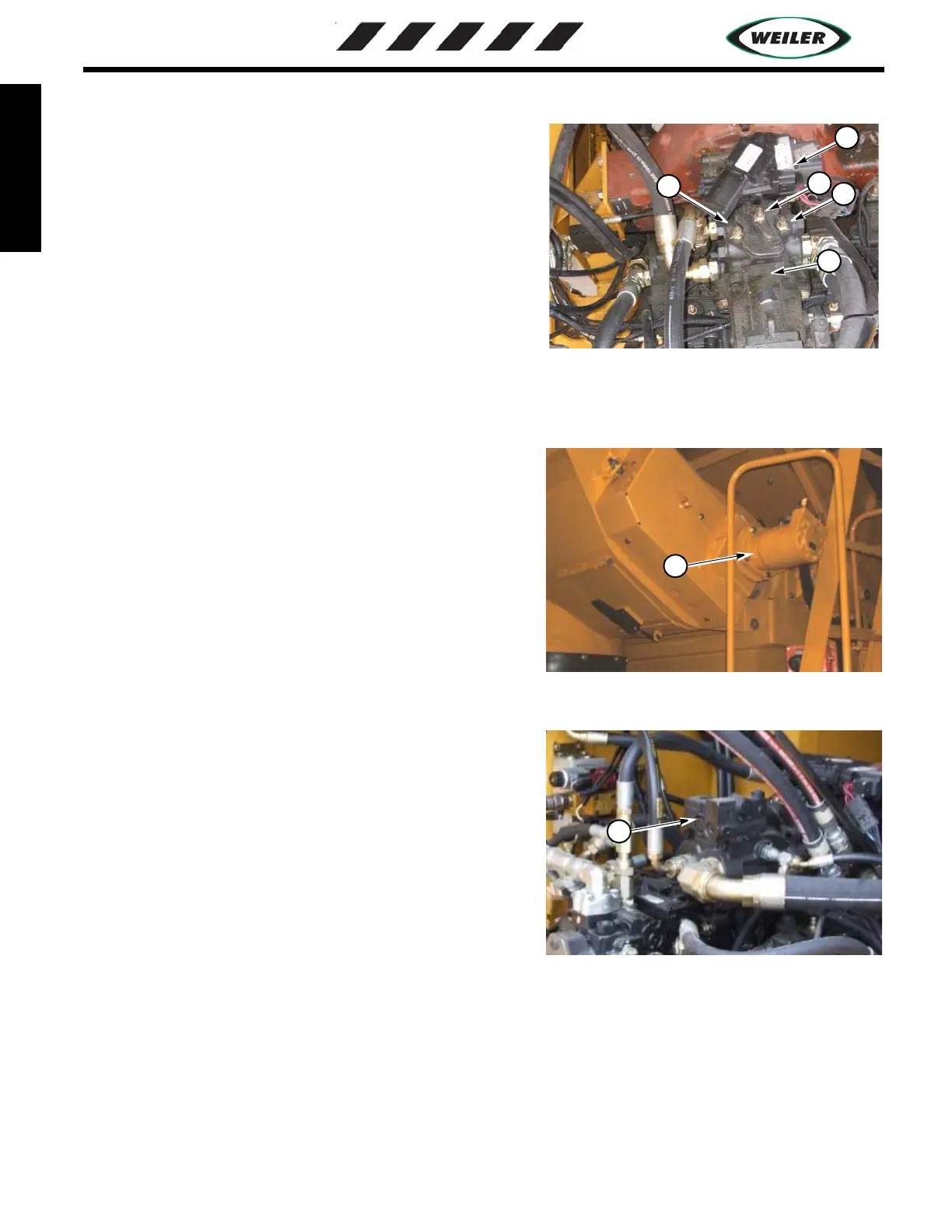

REMIX PUMP (Optional)
1. Remix Pump
2. Charge Pressure Test Port Remix Pump - Pressure should
measure 300psi
3. Pressure Test Port Remix Pump - Pressure should measure
300psi in neutral, with 5000 psi MAX operating pressure.
4. Manual Override - Remix Pump
REMIX MOTOR (Optional)
1. Remix Motor
AUXILIARY PRESSURE COMPENSATED PUMP
1. Pressure Compensated Pump- This pump supplies oil to the
auxillary hydraulic circuits such as lift cylinders, steering
cylinders and vibrator motor.
REMIX PUMP
1
3
2
3
4
REMIX MOTOR
1
PC PUMP
1
