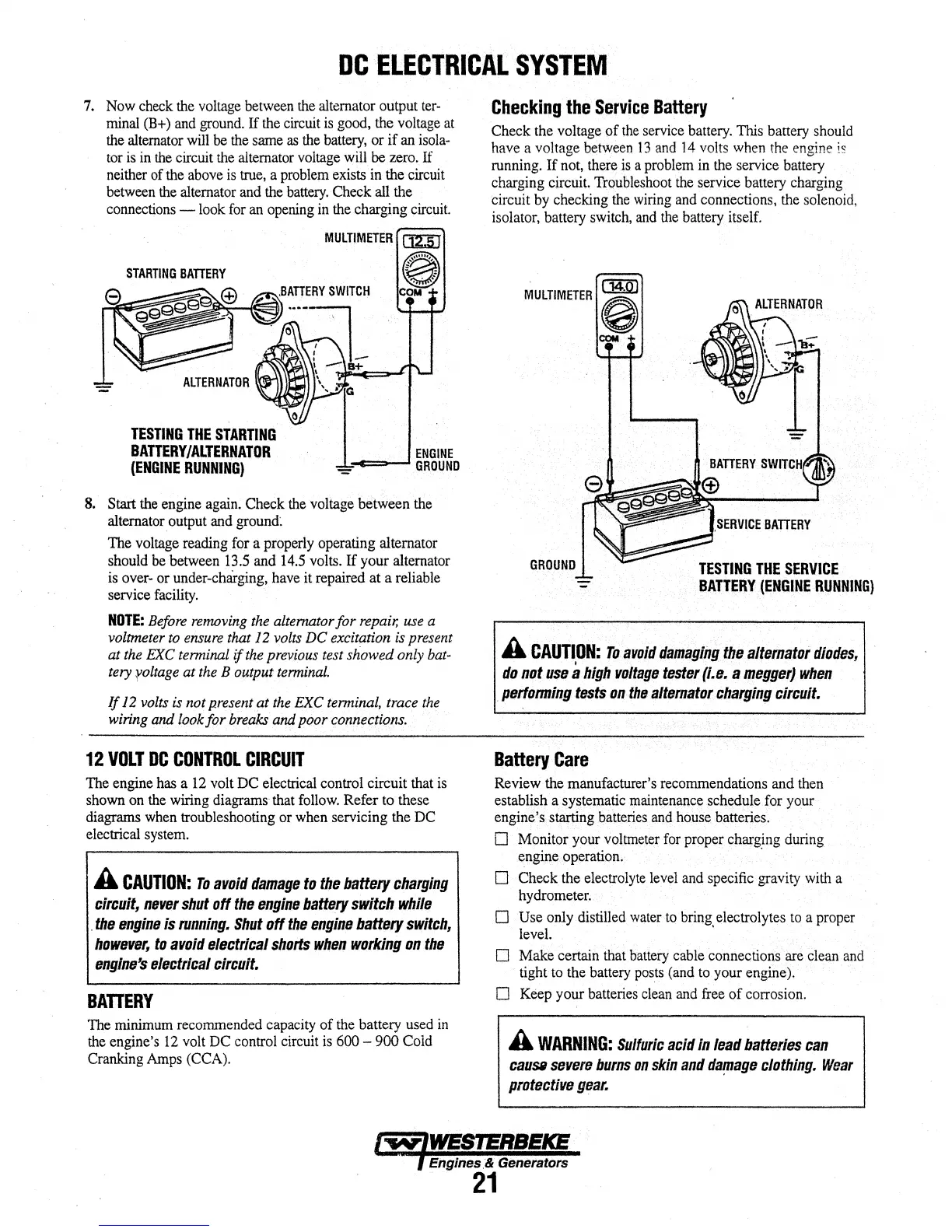

DC
ELECTRICAL
SYSTEM
7.
Now
check
the
voltage
between
the
alternator output
ter-
minal
(B+)
and
ground.
If
the
circuit
is
good,
the
voltage
at
the
alternator
will
be
the
same
as
the
battery,
or if
an
isola-
tor
is
in
the
circuit
the
alternator
voltage
will
be
zero.
If
neither
of
the
above
is
true,
a
problem
exists·
in
the
circuit
between
the
alternator
and
the
battery.
Check
all
the
connections
- look
for
an
opening
in
the
charging
circuit.
TESTING
THE
STARTING
BATTERY/ALTERNATOR
(ENGINE
RUNNING)
MULTIMETER
az5J
e
OM
ENGINE
-c:::=---'
GROUND
8.
Start the engine
again.
Check
the
voltage between
the
alternator output
and
ground;
The
voltage
reading
for
a properly operating alternator
should
be
between
13.5
and
14.5
volts.
If
your alternator
is
over-
or under-cha!ging,
have
it
repaired at a reliable
service
facility.
NOTE:
Before
removing
the
alternator
for
repair,
use
a
voltmeter
to
ensure
that
12
volts
DC
excitation
is
present
at
the
EX.C
tenninal if
the
previous
test
showed only
bat-
tery
yoltage
at the B
output
tenninal.
If
12
volts
is
not
present
at
the
EXC
tenninal
1
trace
the
wiring
and
look
for
breaks
and
po()r
r;ont)et;tions.
12
VOLT
DC
CONTROL
CIRCUIT
The
engine
has
a
12
volt
DC
electrical control circuit that
is
shown on
the
wiring diagrams that
follow.
Refer
to
these
diagrams
when
troubleshooting
or
when
servicing the
DC
electrical
system.
A
CAUnON:
To
avoid
damage
to
the
battery
charging
circuit,
never
shut
oU
the
engine
batte.ry
switch.
while
.
the
engine
Is
running.
Shut
oU
the
engine
battery
switch,
hOWBVIIr,
to
avoid
electrical
shorts
when
working
on
the
engine's
electrical
circuit.
BAnERY
The
minimum
recommended capacity of the battery
used
in
the
engine's
12
volt
DC
control circuit
is
600-900
Coid
Cranking
Amps
(CCA).
Checking
the
Service
Battery
Check
the
voltage of
the
service
battery.
This battery
should
have a voltage
between
13
and
14
volts
when
the
engine
i~
running. If not, there
is
a
problem
in
the
service battery
charging circuit.
Troubleshoot
the
service battery charging
circuit
by
checking
the
wiring
and
connections,
the
solenoid,
isolator, battery
switch,
and
the
battery itself.
MULTIMETER
CKID
TESTING
THE
SERVICE
8A,rl~RY
(ENGINE
RUNNING)
A
CAUTION:
To
avoid
damaging
.t/Je
altematoi
diodes,
do
not
use
a
high
voltage
test11r
(I.e.
a
111egger}
when
.
pertonning
tests
on
the
alternator
charging
circuit.
Battery
Care
Review the manufacturer's recommendations and
then
establish a systematic
maintenance
schedule for your
engine's starting
batteries
and
hou.se
batteries.
0 Monitor your
voltmeter
for
proper
charg~ng
during
.engine.operation.
0 Check the electrolyte
level
and
specific gravity
with
a
hydrometer.
0 Use
only
distilled
water
to
bring
electrolytes
to
a
proper
level. ·
0 Make certain that
batter)'
cable connections
are
clean
and
tight
to
the
battery
posts
(and
to
your engine).
0
Keep
your batteries
clean
and
free
of corrosion.
A
WARNING:
Sulfuric
acid
In
lead
batteries
can
cauu
severe
burns
on
skin
and
da~age
clothing.
Wear
protective
gear.
