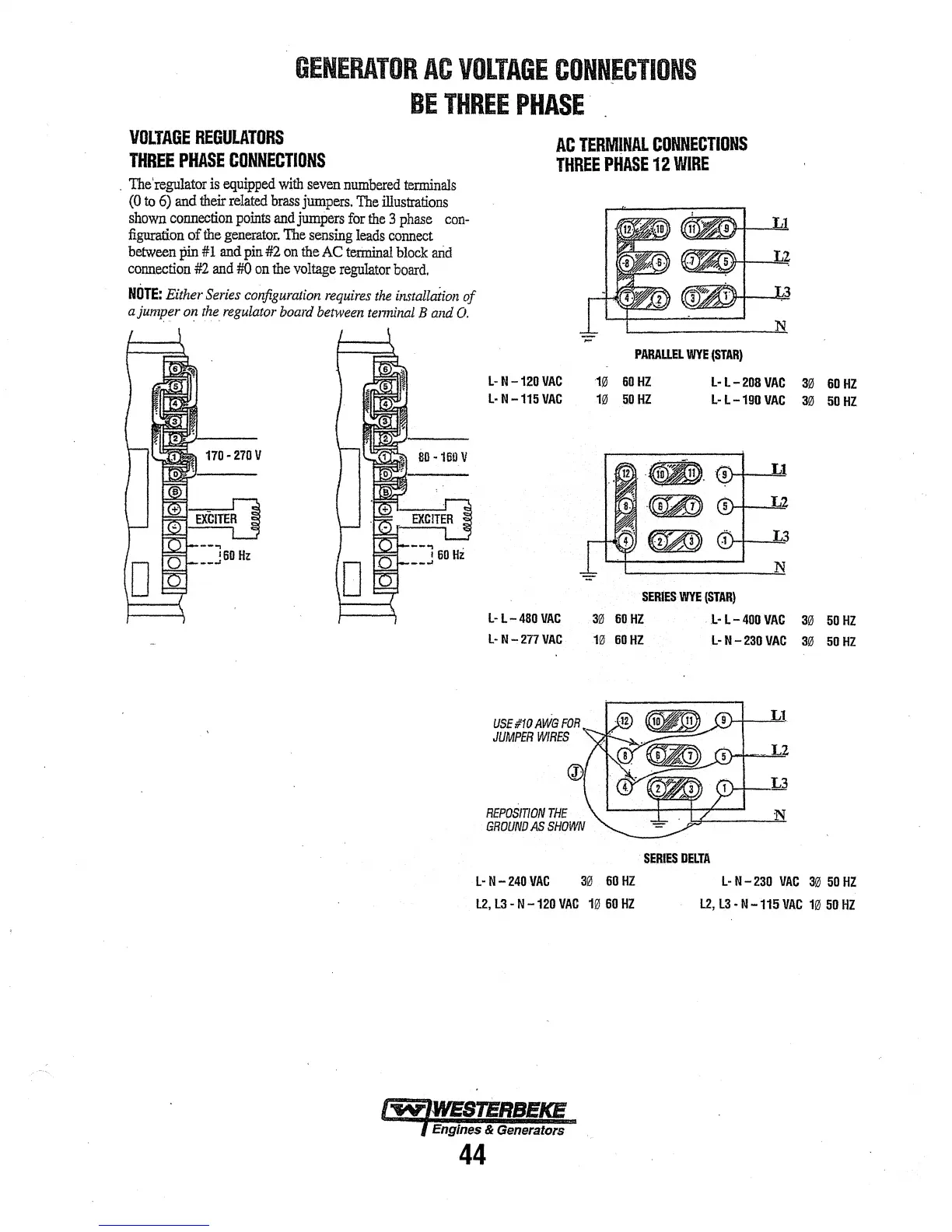

GENERATOR AC VOLTAGE CONN~CTIONS
BE THREE PHASE . .
VOLTAGE REGULATORS
THREE PHASE CONNECTIONS
. The'regulator is equipped with seven numbered terminals
(0 to 6) and their related brass jumpers. The illustrations
shown connection points and jUlllJ?ers for the 3 phase con-
figuration of the generator. The sensing leads connect
between pin #1 and pin #2. on the AC terminal block arid
connection #2 and #0 on the voltage regulator board.
NOTE: Either Series configuration requires the installation of
a jumper Of! the regulator board between temzinal B and 0.
170-27UV
---.
__ j60 Hz
AC TERMINAL CONNECTIONS
THREE PHAsE 12 WIRE
PARALLEL wYE (STAR)
L-N-120VAC 10 60HZ
l· N -115 VAC 10 50 HZ
L·l-208VAC 30 60HZ
l· L-190 VAC 30 50 HZ
$ERIES WYE {STAR)
L-l-480 VAC 30 60HZ
L-N-,2nVAC 10 60HZ
US~ #10 AWG FOR
JUMPER WIRES
1- L-400 VAC 30 50 HZ
L- N-230 VAC 30 50 HZ
SERIES DELTA
L·N-240VAC 30 60HZ
L2,l3 • N-120 VAC 10 6D HZ
L· N-230 VAC 30 50 HZ
L2,L3-N-115VAC 1050HZ
44
