INSTALLATION AND MAINTENANCE MANUAL
LYNX E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
PAGE 5-12 SECTION 5: APPENDICES
Appendix C - Rear Panel Data Connectors
The following figures illustrate the pin structure for all rear panel data connections. All figures are
oriented as a customer would view them, facing the rear panel. DC power connection information is
found in Section 3.7 of the manual.

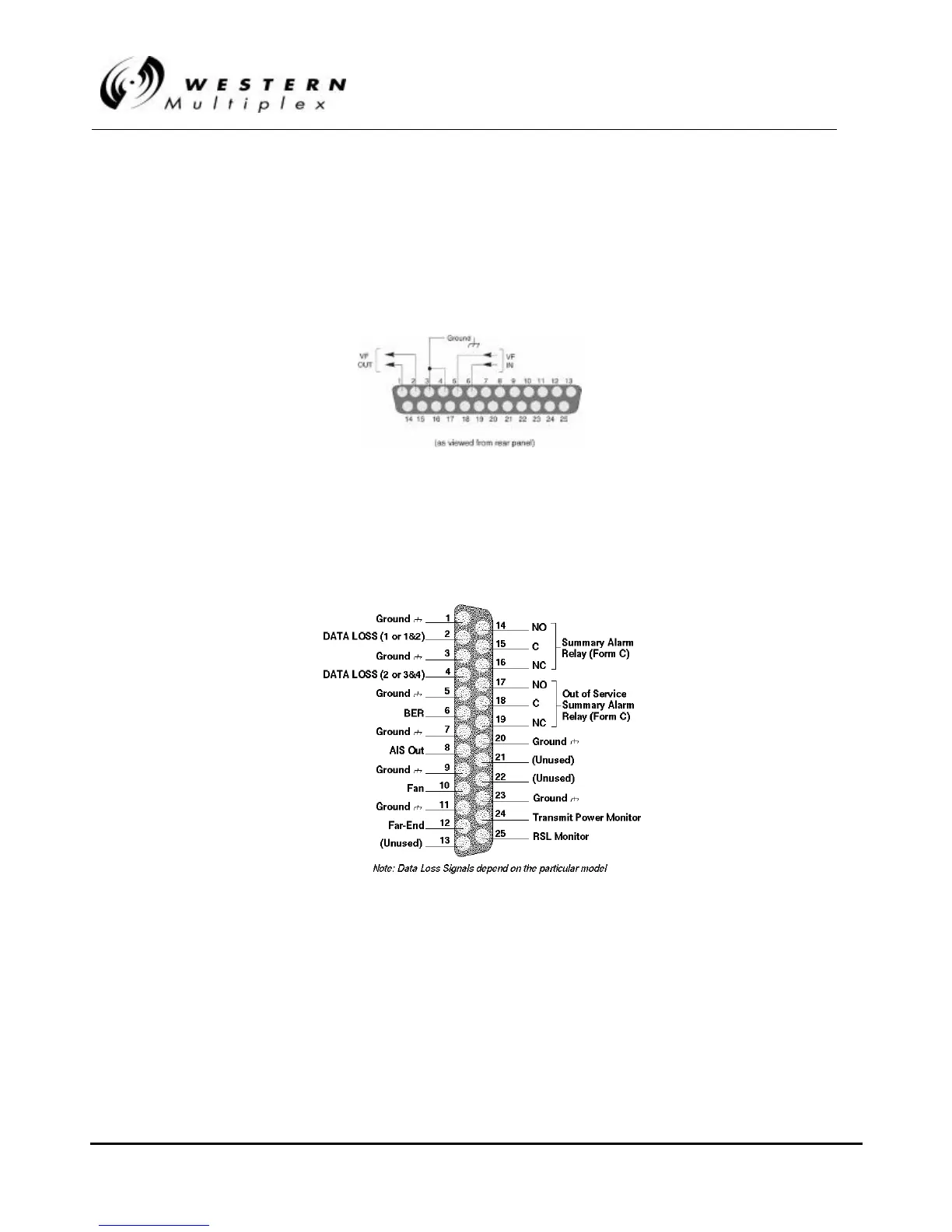

Figure CFigure C-- 1: VF Port Connection 1: VF Port Connection
Figure CFigure C-- 2: Alarm Port Connections 2: Alarm Port Connections
