INSTALLATION AND MAINTENANCE MANUAL
E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
SECTION 5: APPENDICES PAGE 5-13

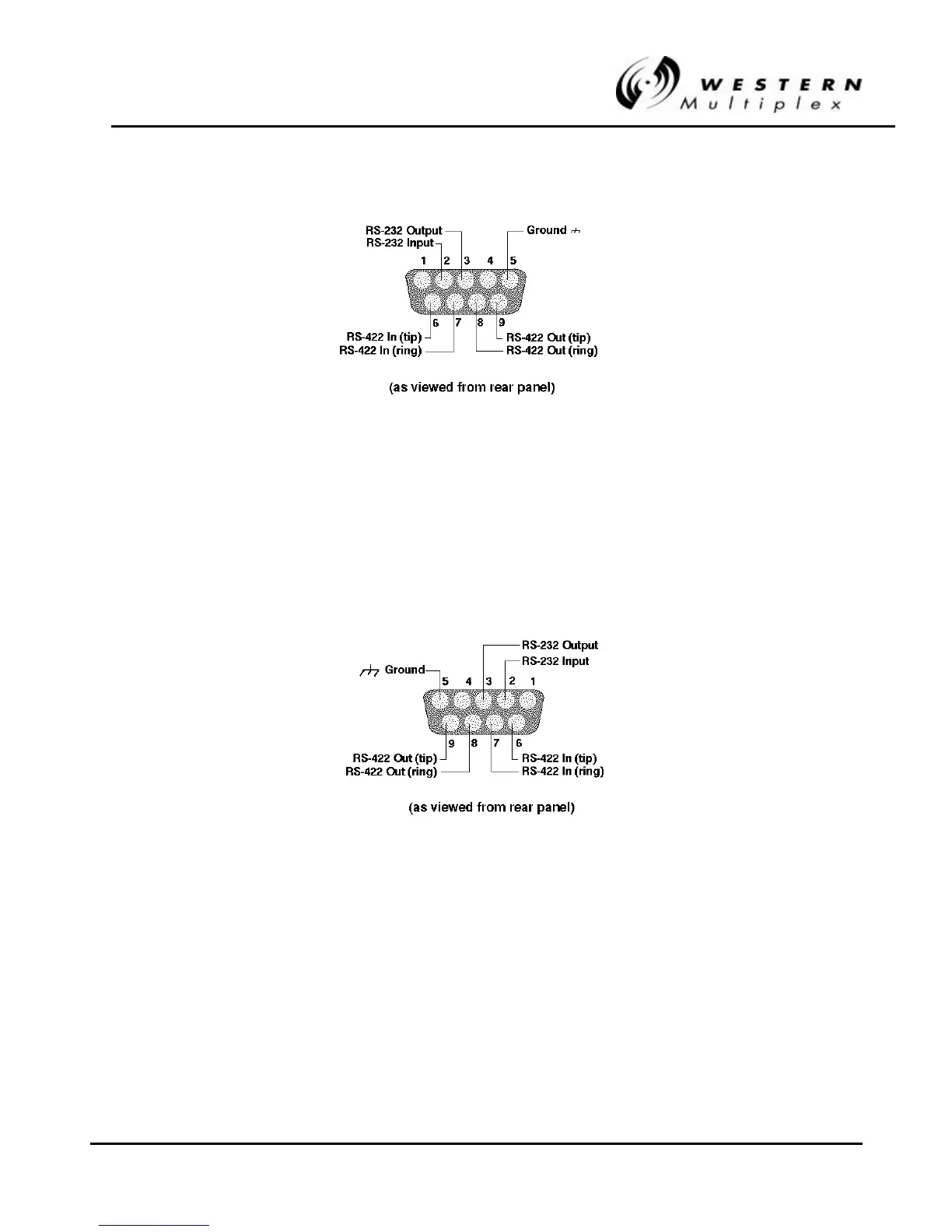

Figure CFigure C-- 3: Diagnostic Po3: Diagnostic Port 9rt 9-- Pin DPin D-- Style Connector Style Connector
Do NOT use both the RS-232 and RS-422 connections at the same time!
Figure CFigure C-- 4: AUX DATA Port 94: AUX DATA Port 9-- Pin DPin D-- Style Connector Style Connector
Do NOT use both the RS-232 and RS-422 connections at the same time!
