INSTALLATION AND MAINTENANCE MANUAL
E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 3-65

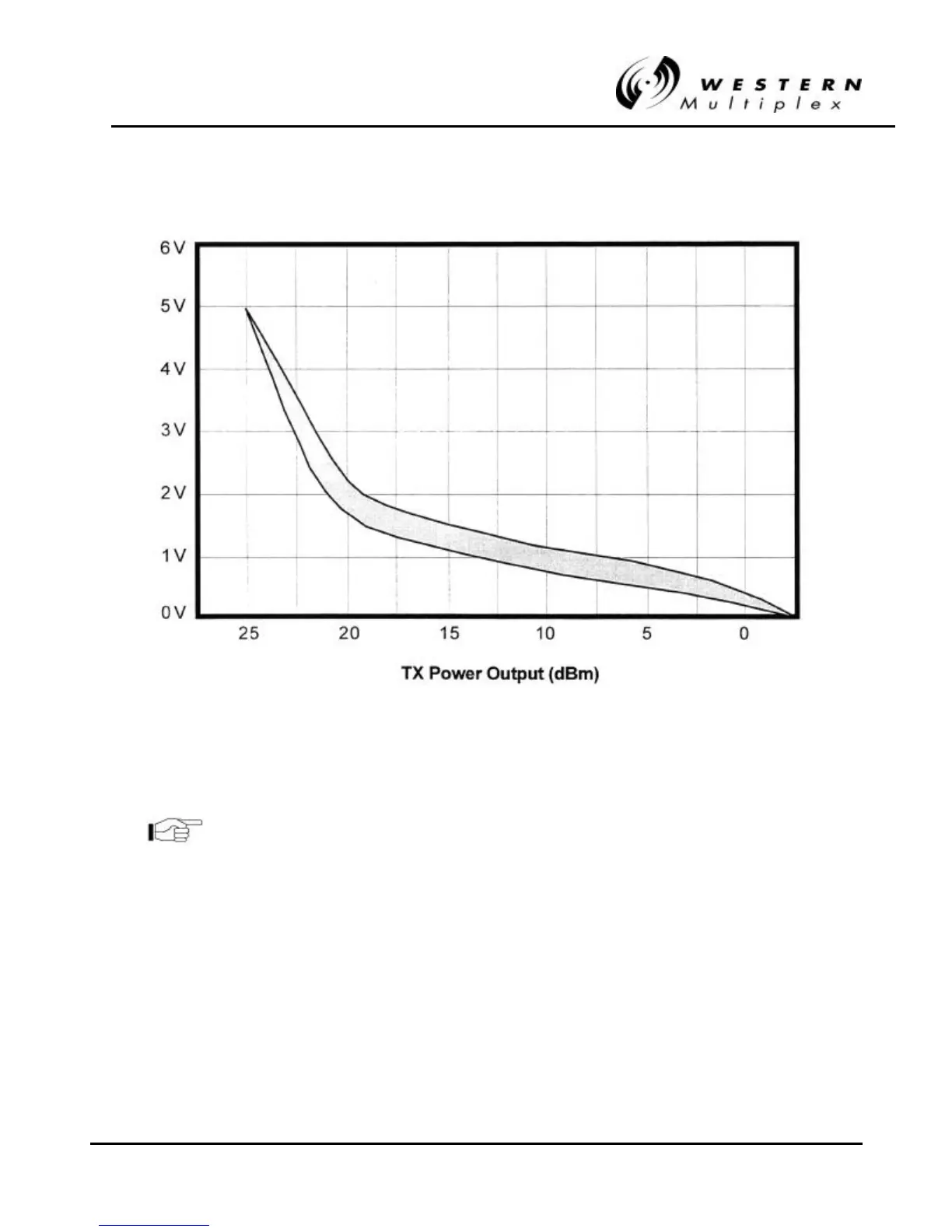

Figure 3Figure 3-- 17: Typical RF Output Power17: Typical RF Output Power versus PWR Voltage, 5.8 GHz Models versus PWR Voltage, 5.8 GHz Models
Use the Lynx Factory Test Data sheet to determine more
precisely the voltage corresponding to the RF output power.
