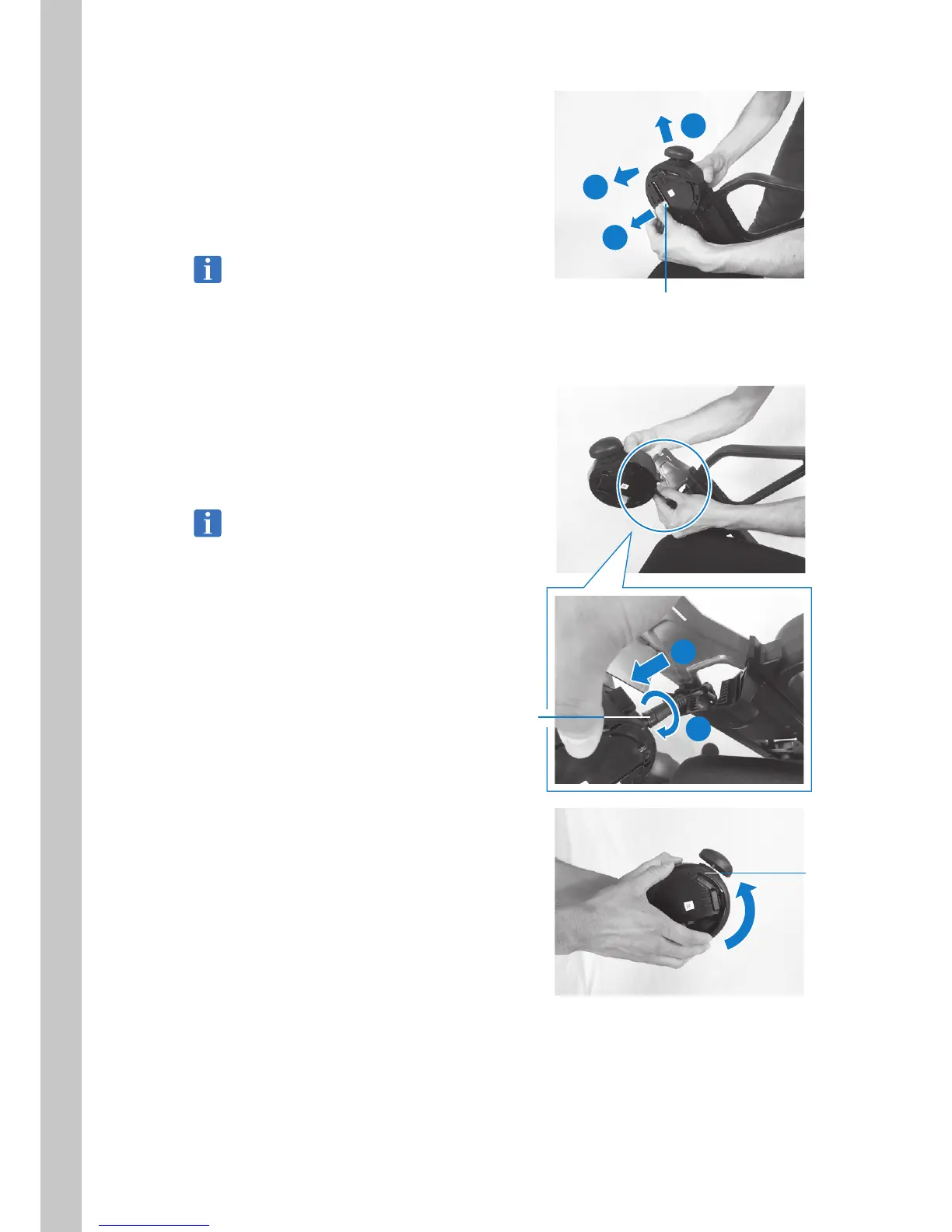

4. Remove the directional controller assembly
or control pad.
1) Press down the white lever on the inside
of the control assemblies.
2) Slide up the control assemblies.
3) Slide the box toward the inside to remove
it.
When removing the control assemblies from
the arm, do not pull forcefully on it. There is a
risk of breaking the cable that is connected to
it.
5. Disconnect the connector.
1) Rotate the connector base lock
counterclockwise to loosen it.
The lock is released.
2. Pull out the connector.
When disconnecting the connector, do not pull
forcefully on control assemblies. There is a risk
of breaking the cables.
6. Rotate the outside ring-shaped cover
counterclockwise and remove it.
Lever
2
3
1
Unlock
2
1
Cover
