WinGD X35-B - Page 465

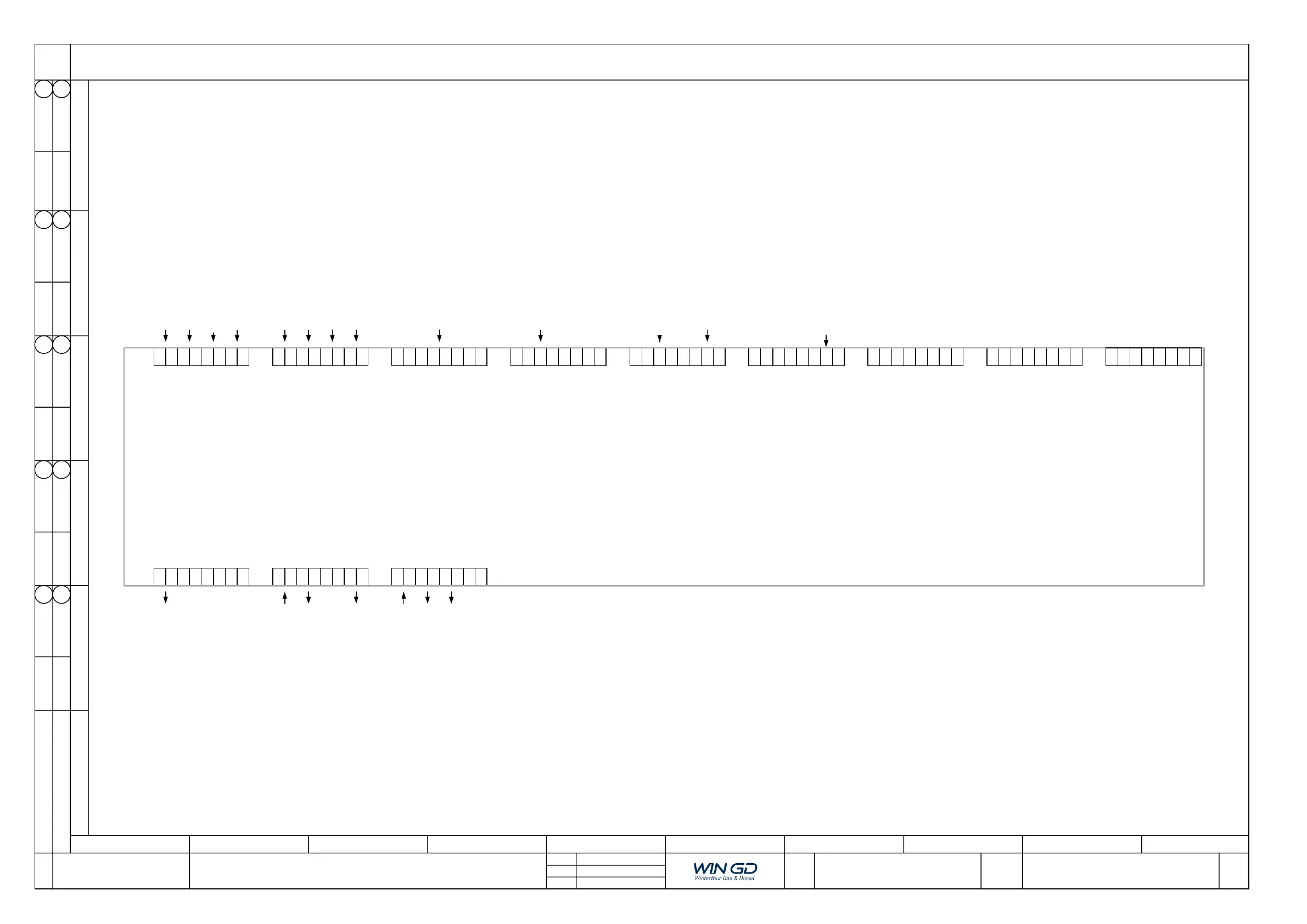

Electric Connection Diagram
System Layout
W-X35-B
W-X40-B
FEDCBA
Winterthur Gas & Diesel Ltd. retains all rights to this drawing. By taking possession of the drawing, the recipient recognizes and honors these rights. Neither the
whole nor any part of this drawing may be used in any way for construction, fabrication or marketing or any other purpose nor copied in any way nor made
accessible to third parties without the previous written consent of Winterthur Gas & Diesel Ltd. In case of violation, the recipient will be liable to damages.
Mod.
0
1 2 3 4 5 6 7 8 9
3 / 3
Exhv. Ctrl Vlv Cyl #1 CV740nC
X31 X32
X33 X34 X35
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
X21
1 2 3 4 5 6 7 8
X22
1 2 3 4 5 6 7 8
X23
1 2 3 4 5 6 7 8
X24
1 2 3 4 5 6 7 8
X25
1 2 3 4 5 6 7 8
X12
1 2 3 4 5 6 7 8
PSS_2 + PSS_2 - CAN_2_H CAN_2_L Speed_2 + Speed_2 - Phase_2 + Phase_2 -
Controller Supply B System Bus 2 Gear Wheel Sens B/D Engine BDC signal Controller Supply A System Bus 1 Gear Wheel sens A/C Engine TDC signal
PSS_1 + PSS_1 - CAN_1_H CAN_1_L Speed_1 + Speed_1 - Phase_1 + Phase_1 -
HSD_1 + HSD_1 - HSD_2 + HSD_2 - LSD_1 LSD_2 DR_GND DR_GND
Driver Supply B
PSD_2 + PSD_2 - PWM_4 + PWM_4 - PWM_5 + PWM_5 - PWM_6 + PWM_6 -
ST5132/34C
ZS5124C
ST5131/33C
ZS5123C
PSD_1 + PSD_1 - PWM_1 + PWM_1 - PWM_2 + PWM_2 - PWM_3 + PWM_3 -
Driver Supply A
CV744nC CV746nC
Start Pilot Valve CV724nC
DI/O_E + DI/O_Ref - ID_5 ID_4 ID_3 ID_2 ID_1 ID_Ref
Module ID
FAI_3_E + FAI_3_Piezo FAI_3_mA FAI_3_Ref - DI/O_1 DI/O_3 DI/O_2 DI/O_4
Cylinder Press Cyl #nPT360nC
FAI_1_E + FAI_1_Piezo FAI_1_mA FAI_1_Ref - FAI_2_E + FAI_2_Piezo FAI_2_mA FAI_2_Ref -
PT313nC ZT542nC
Ref - Ref - SAI_3_E + SAI_3_S SAI_3_C (-) SAI_4_E + SAI_4_S SAI_4_C (-) Link Link SAI_1_E + SAI_1_S SAI_1_C (-) SAI_2_E + SAI_2_S SAI_2_C (-) TC_IN1 + TC_IN1 - TC_IN2 + TC_IN2 - TC_IN3 - TC_IN3 + TC_IN4 - TC_IN4 +
TE370nA
CCM-20 Common connections Diesel Part
Fuel Inj. SV1 Cyl #n Fuel Inj. SV2 Cyl #n
Cyl Lub Oil Press Cyl #n
Exh Vlv Pos Cyl #n
Exh Gas Temp Cyl #n
X15
1 2 3 4 5 6 7 8
TC_IN13 + TC_IN13 - TC_IN14 + TC_IN14 - TC_IN15 - TC_IN15 + AI DIF - AI DIF +
CV713nCCyl. Lub. Vlv Cyl #n
