5.4.4 Local maneuvering stand for UNIC
The local maneuvering stand has the local control panel (001, Figure 5-23) and is attached to the
engine at the free end. The local control panel has the components necessary for engine operation.
Some components can look different because the remote control manufacturer supplies the local
control panel (001).
For data about maneuvering instructions, refer to section 8.8 Maneuver the ship - general.

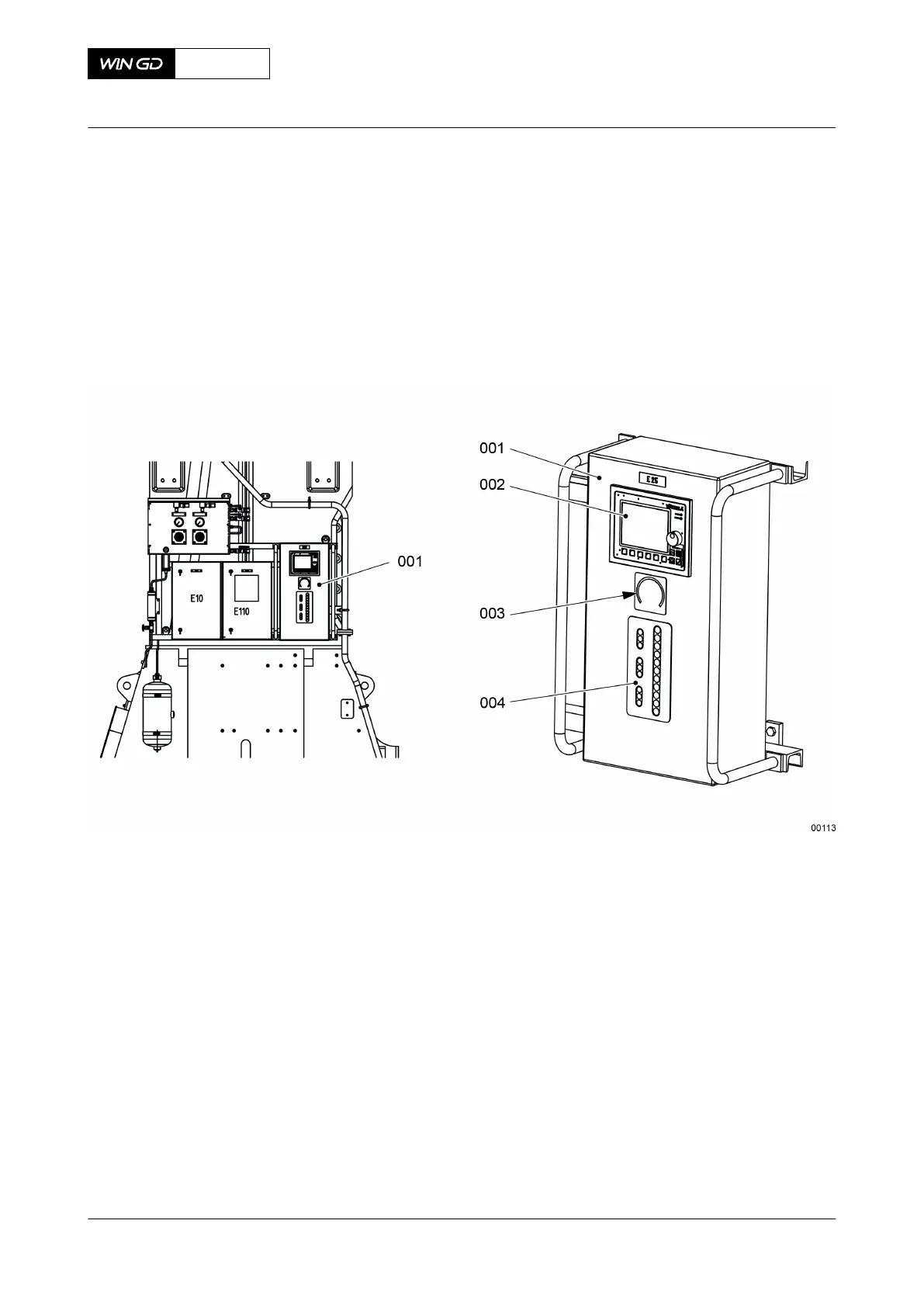

Fig 5-23 Local maneuvering stand (generic)
Legend
001 Local control panel 003 Main engine tachometer
002 LDU-20 004 Telegraph receiver
X92-B
AA00-4618-00AAA-043A-A
Operation Manual Local maneuvering stand for UNIC
Winterthur Gas & Diesel Ltd.
- 158 - Issue 002 2021-11
