WinGD X92-B User Manual

5.5.6 Exhaust valve control unit
The exhaust valve control units (VCU) control the servo oil to the exhaust valve of the related
cylinders. The exhaust valve control units are attached to the servo oil rail.
When the solenoid valve operates, servo oil is released to the slide rod (001, Figure 5-31). This
releases servo oil to the piston (003). Thus servo oil from the servo oil outlet (004) opens the
exhaust valve.

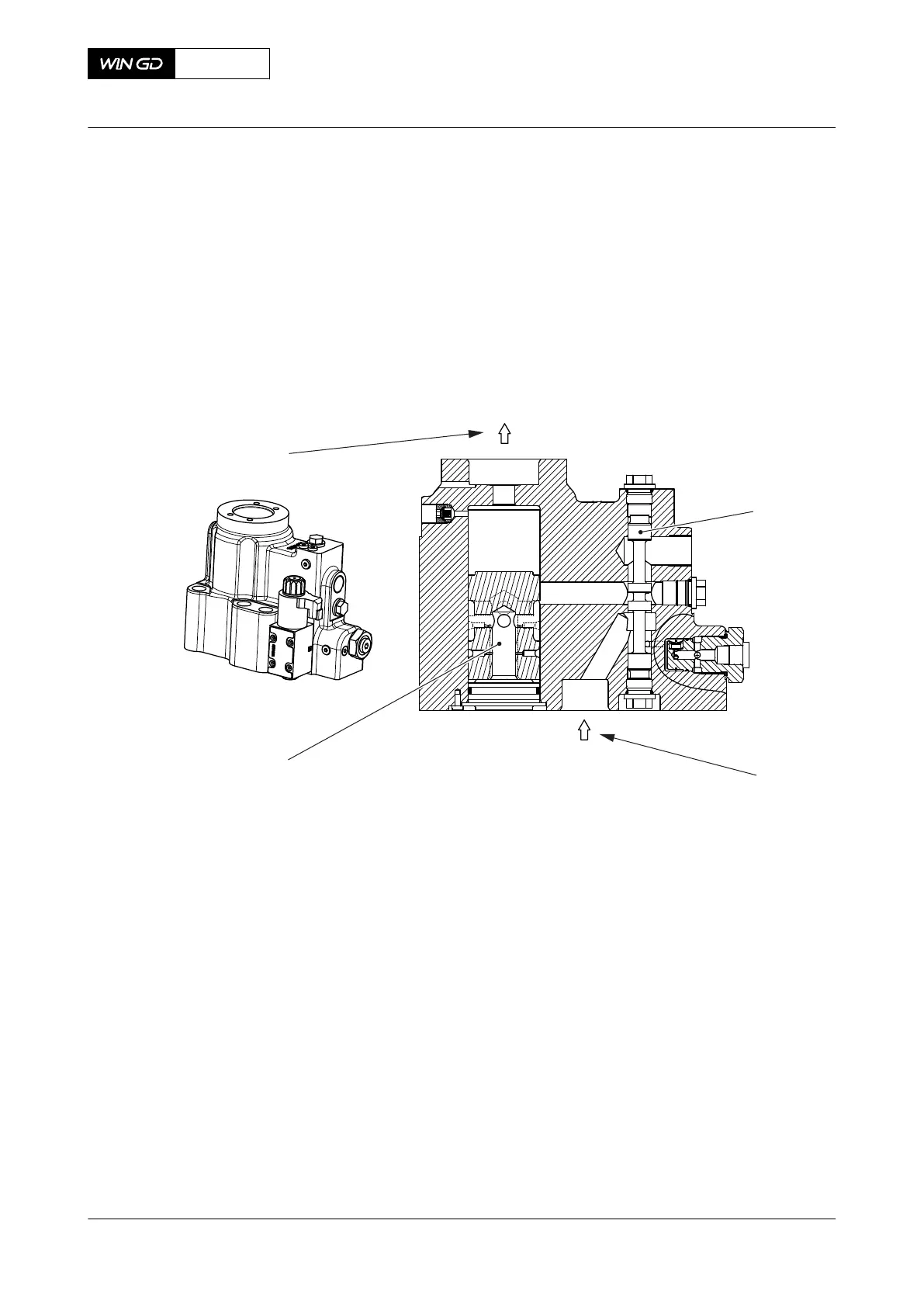

Fig 5-31 Exhaust valve control unit (VCU) (example)
001
002
003
004
Legend
001 Slide rod 003 Piston
002 Servo oil inlet 004 Servo oil outlet
X92-B
AA00-5612-00AAA-043A-A
Operation Manual Exhaust valve control unit
Winterthur Gas & Diesel Ltd.
- 172 - Issue 002 2021-11
