WinGD X92-B - Viscosity; Temperature diagram

To Next Page

To Previous Page

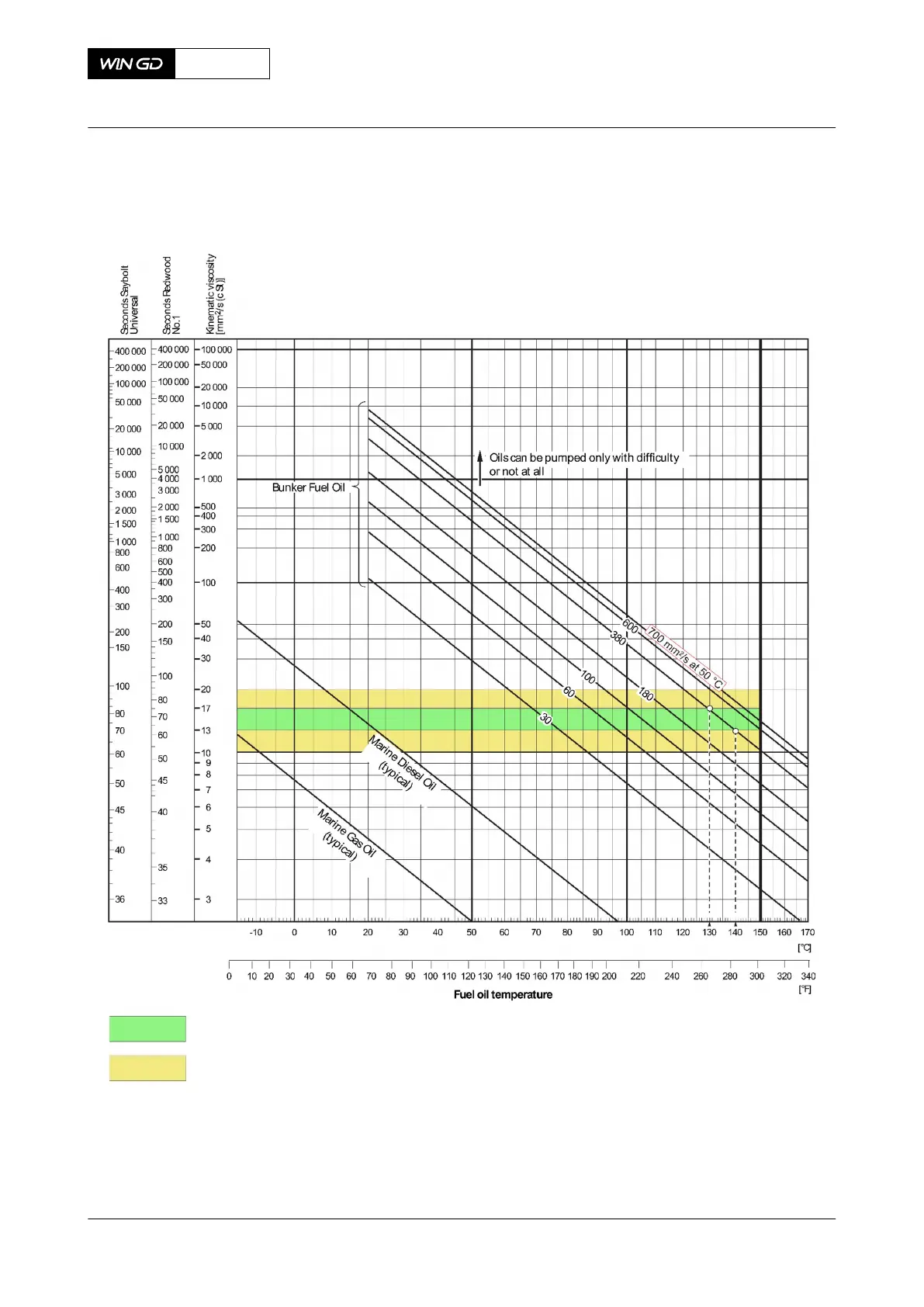

Fig 12-1 Viscosity / Temperature diagram

00099

Recommended viscosity range for Generation X, X-DF and RT-flex engines

Required viscosity range for Generation X, X-DF and RT-flex engines

X92-B

AA00-0000-00AAA-030A-A

Operation Manual Diesel engine fuels

Winterthur Gas & Diesel Ltd.

- 446 - Issue 002 2021-11
