WinGD X92-B - Numbering of items

•
A LEFT engine has the exhaust side (ES) on the left side of the engine (seen from the driving
end).
NOTE: In the Spare Parts Catalogue parts that have the mark (LEFT) are only applicable for a
LEFT engine. Parts that are applicable for the two engines types (Standard and LEFT)
have no mark.
1.7.4 Numbering of items
WinGD uses the definitions for the numbering of items as follows (refer to Figure 1-2):
•
In axial direction the numbering starts from the flywheel.
•
In radial direction the numbering starts from the center of the flywheel.

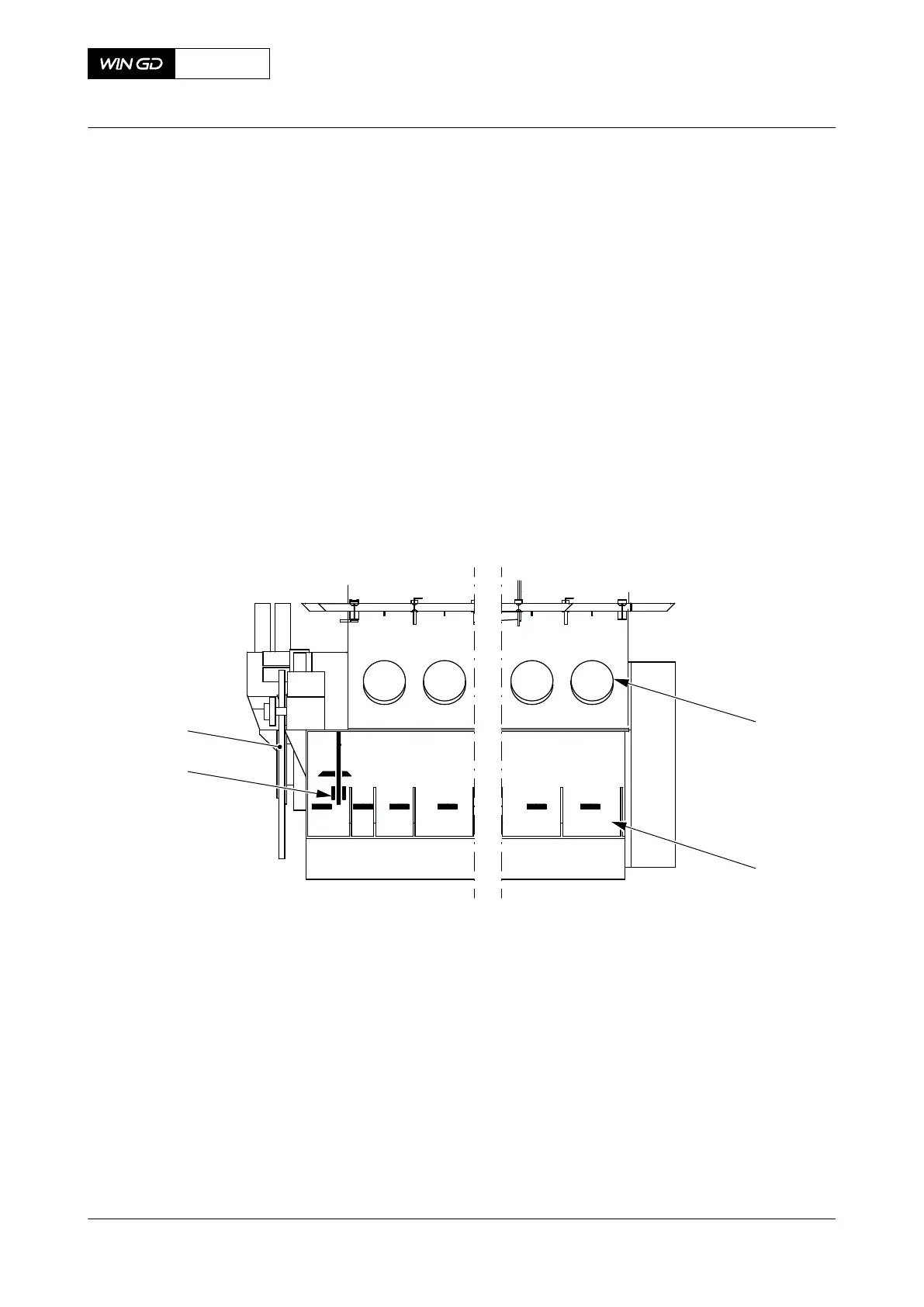

Fig 1-2 Engine numbering (generic)
FEDE
n
n
004
003
001
002
n-1
n-1
4321
2
1
Legend
FE Free end DE Driving end
001 Cylinder number 003 Thrust bearing
002 Main bearing number 004 Flywheel
X92-B
AA00-0000-00AAA-018L-A
