23 Do a function test of the new control module e.g. connection to sub-systems, DCM and
remote control system.
Tab 10-65 GTU - Control module configuration
Software image download Configuration image download Normal Boot up without download
B:RI: ethernet ring initiated B:RI: ethernet ring initiated B:RI: ethernet ring initiated
U:CK: software and config im-
age check initiated
U:CK: software and config image
check initiated
U:CK: software and config image check
initiated
U:PU: pull update check initi-
ated
U:PU: pull update check initiated U:PU: pull update check initiated
U:SI: push single update initi-
ated
U:SI: push single update initiated SM:I: USM state "Initialization"
U:SW: software update initiat-
ed
U:CF: config update initiated SM:R: USM state "Ready"
Reboot Reboot Blank

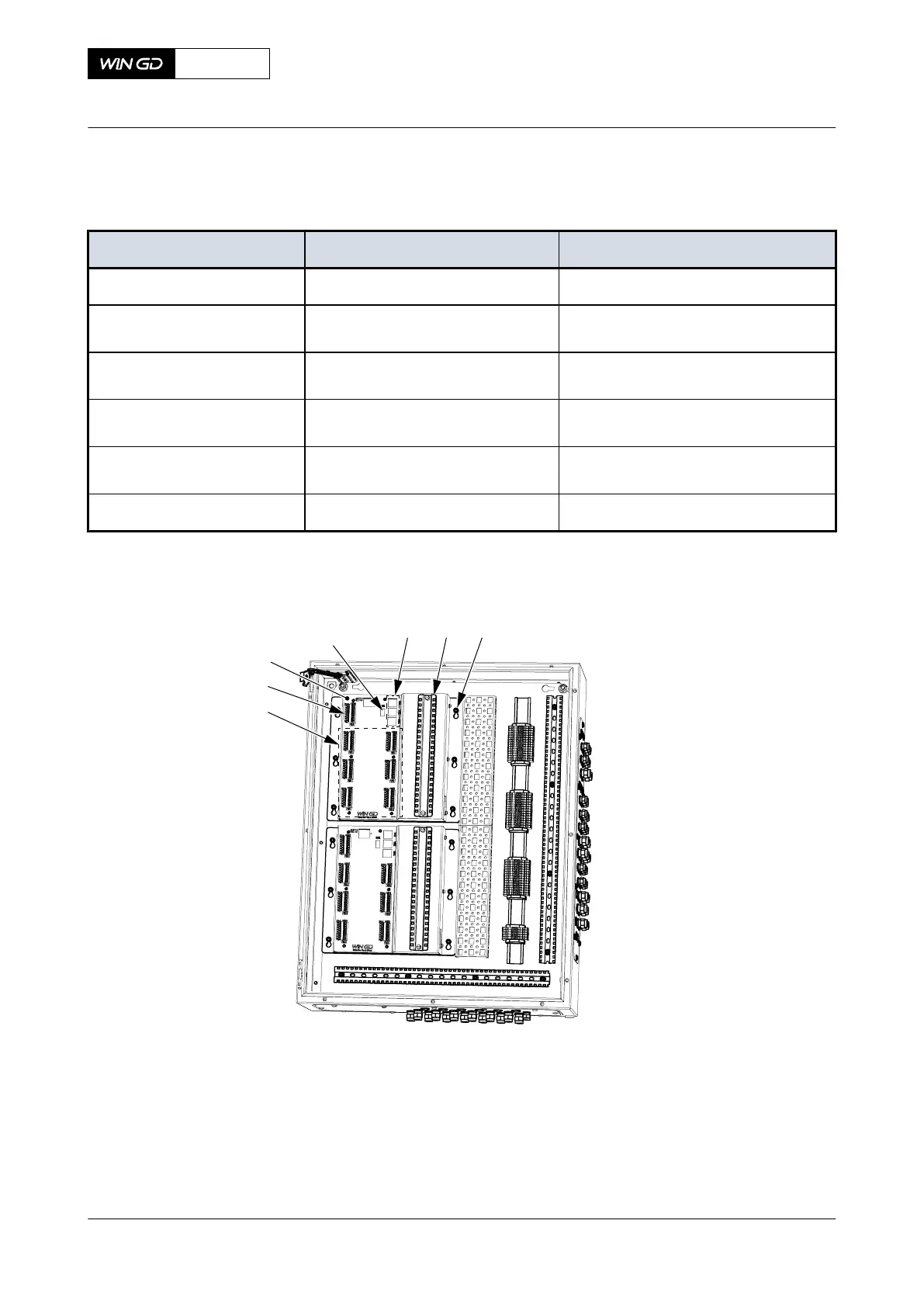

Fig 10-13 WiCE - Gateway Unt (GTU) replacement
006
007
001
002 003 004
005
