Cable transition STV-KÜ-T1 FT (sash part)
To transmit the current from the frame to the sash, so-called cable transitions (de-
tails in the following text) or so-called tappet contacts (see separate installation,
operating and maintenance instructions for tappet contact) can be used.
CAUTION!
The cable transitions must be installed in the safe area (e.g. installed concealed in
the airgap) and protected against manipulation.

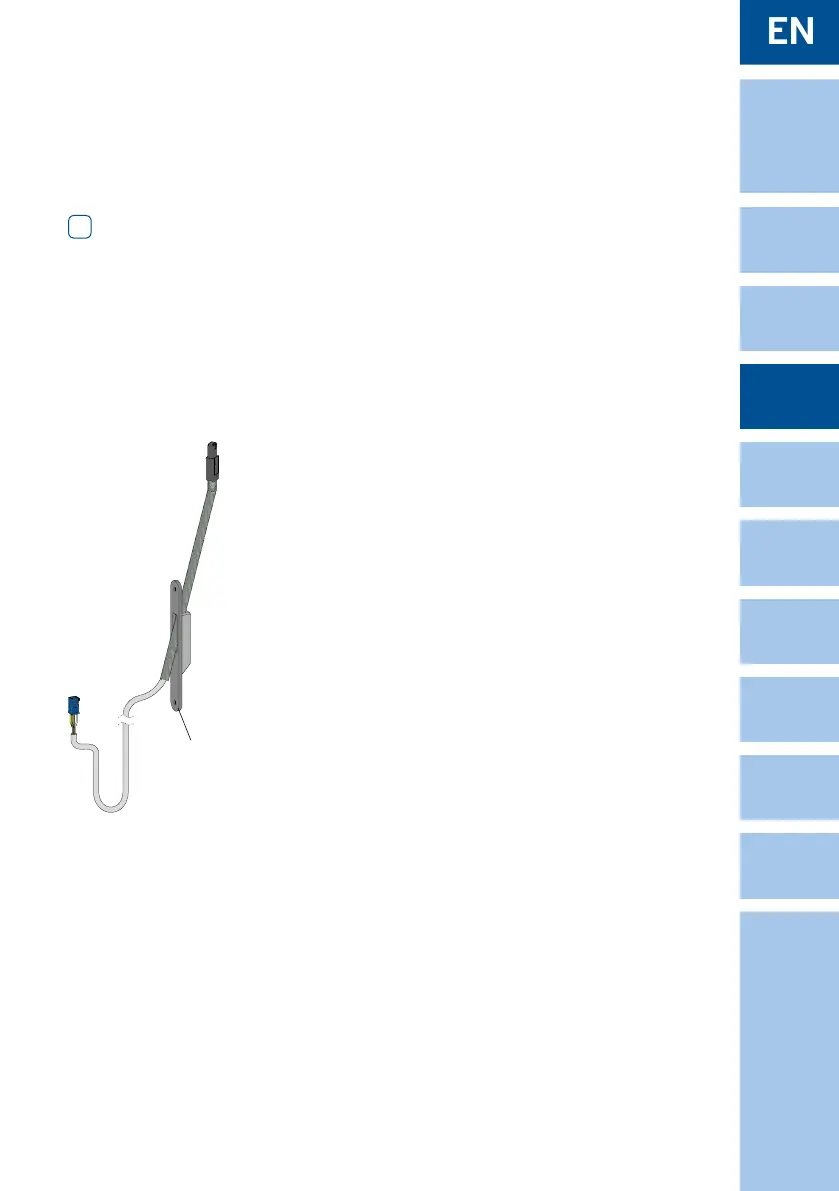

Plug-in and concealed in cable transition
• Inserted by plug-in function, with retaining screws 3 x 20 mm
(contained in packaging sash part)
• Sash part with spring sleeve in dierent versions
1)
STV-KÜ-T1 FT 2 M with 2 m cable + plug for motor
2)
STV-KÜ-T1 FT 3,5 M with 3.5 m cable + plug for motor
3)
STV-KÜ-T1 SET FT INTEGR-EAV FT 1 M + KABEL 3 M with 1 m
cable, end of the cable with 8-pole plug (for control unit ekey
home integra) + connecting cable for motor 3-wire
4)
STV-KÜ-T1 SET FT ZK-EAV FT 4 M + KA 3,5 M with 3.5 m
cable + 5-pole plug for connection with Y-cable INSIDE EAV
0.5 m + Y-Kabel INSIDE EAV 0.5 m
5)
STV-KÜ-T1 SET FT ZK-SO + EAV FT 1M + KABEL 3 M, Set
with sash part KÜ-T1-SOMMER-EAV + connecting cable for
motor SOMMER 3 m
• Frame part 1 with 4 m cable and cable end sleeves or alternatively frame part 2
with 0.6 m cable and plug for frame power supply
• Installed concealed in the airgap
• Electric interface between sash and frame with 6 wires
• Colour silver/grey
• No routing for > 11 mm airgap needed, suitable for PVCu and aluminium entrance
doors (depends on the system), with appropriate routing it is suitable for wooden
doors
• Recommendation: It is recommended that the cover plate (depends on the face-
plate and the material type of timber, PVCu/plastic or aluminum) conceals the
routing for the required cable reserves to prevent possible cable damage.
