Machines with automated powder dosing
37
19 Machines with automated powder dosing

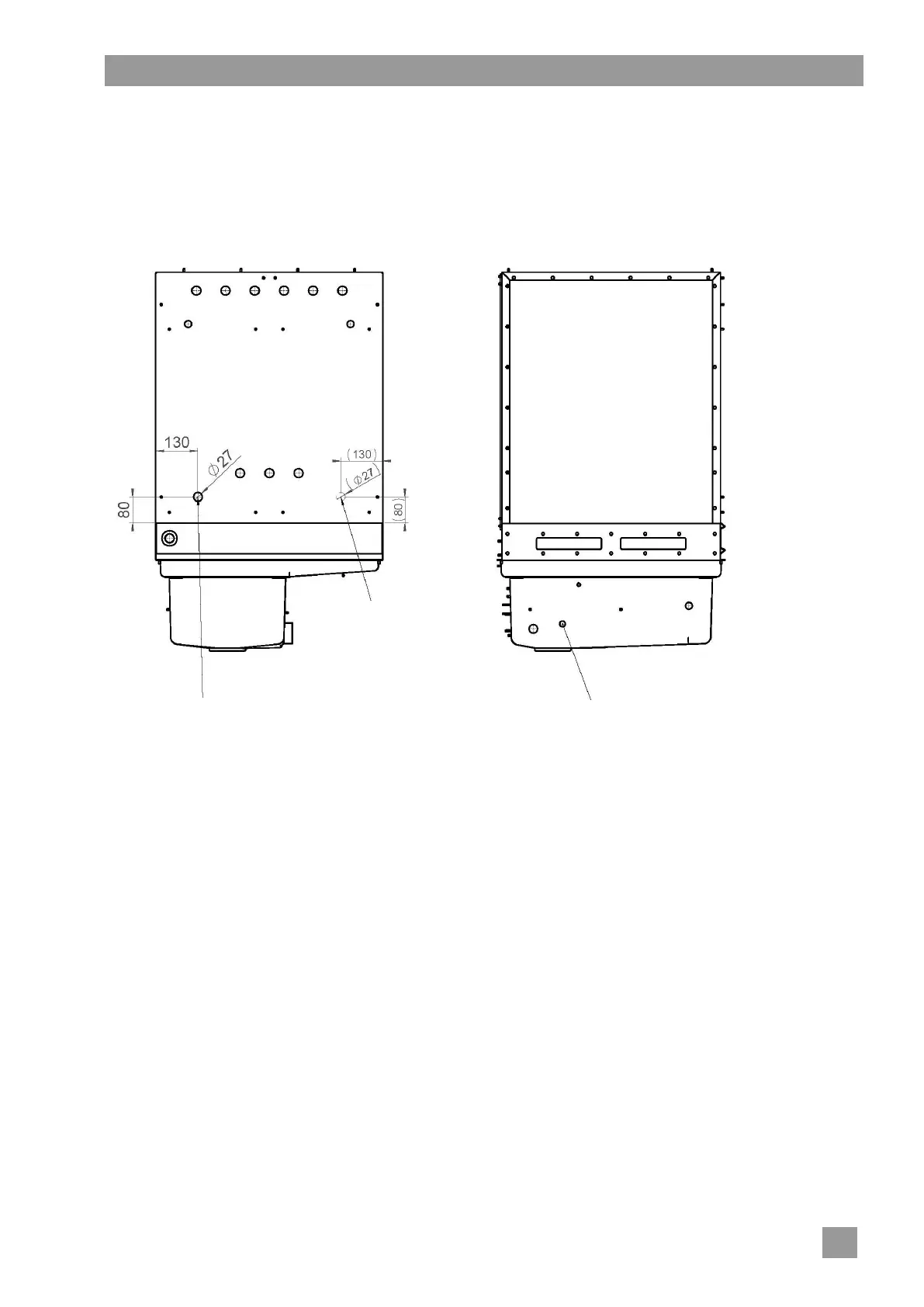

If powder detergents have to be dosed (e.g. using the SoliDos powder dosing device), a hole must be drilled
for the inflow point (E). For position, see drawing. The drilling diameter is dependent on the powder dosing
device.
For the installation of a conductance measurement electrode, a hole (CF) is provided ex works.
After the hole has been drilled, drilling swarf must be removed from the interior of the machine to prevent
rust from forming.
First main wash zone; rear view
Side view
If the injection hose is fed through a cover:
 Attach the edge protection.
 Seal the openings.
 Notify the customer that the warewasher’s splash guard has been reduced.
Alternative position
for machines with
lateral wash arms
and a “left to right”
direction of travel
E
CF
