MFL User Manual

EXTERNAL

FILTER

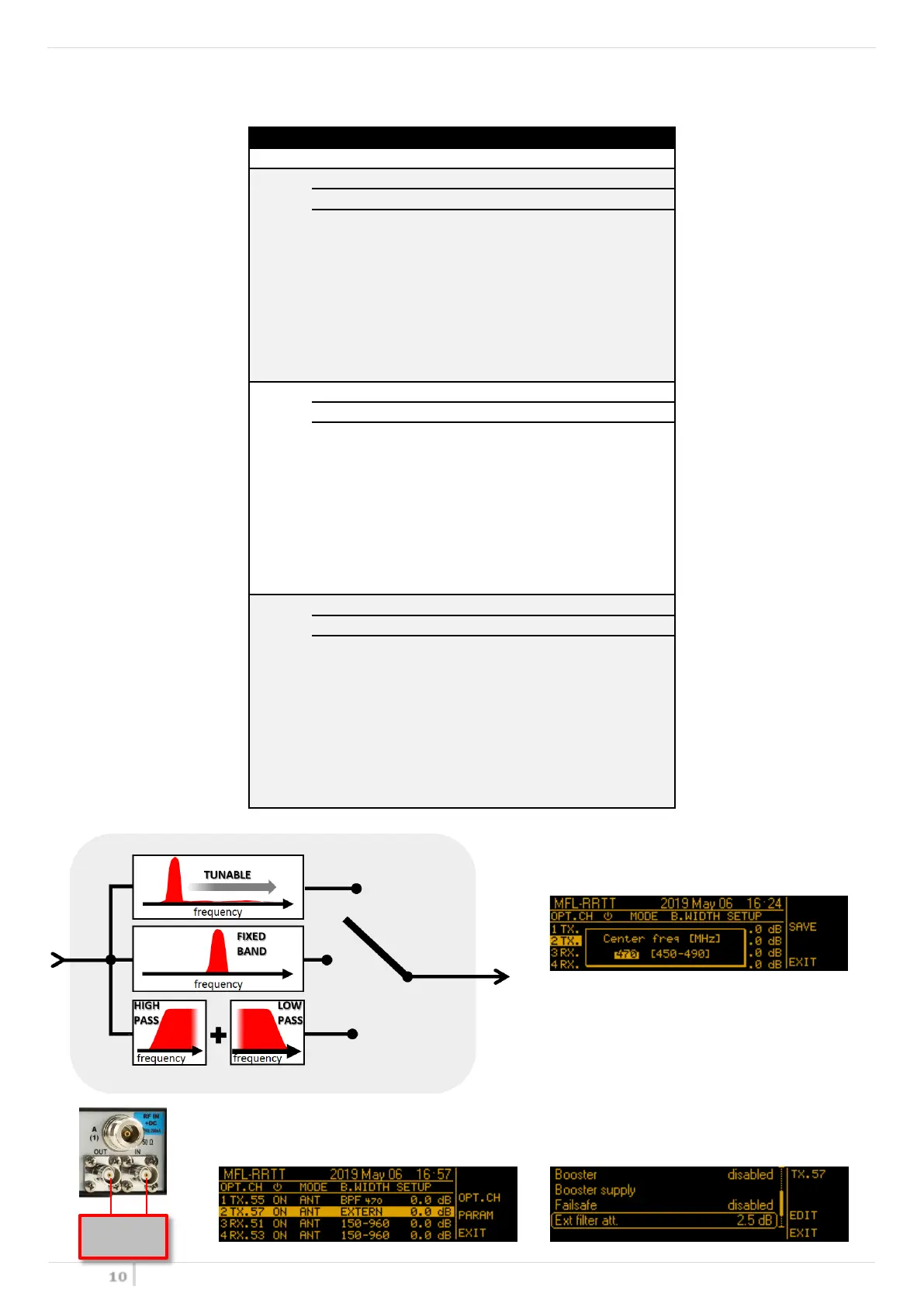

Filter option

When optical TX module is used in RECEPTION SYSTEM (MODE:ANT) a filter option is recommended.

Select on the TX menu the more appropriate

filter according to the frequency in use

It is possible to use also an EXTERNAL filter connected it on BNC connectors in the rear panel. The

attenuation of external filter can be set in the OPT. CH. menu

Option

Filter type

Range

BF1

Tunable Filter

404-788MHz, 25MHz of Bandwidth

F41

Tunable Filter

410-730MHz, 40MHz of Bandwidth

Fixed Filter

940 ÷ 960 MHz (Europe/Usa)

Selectable Filter

410-600 MHz

410-700 MHz

410-810 MHz

470-600 MHz

470-700 MHz

470-810 MHz

510-600 MHz

510-700 MHz

510-810 MHz

F42

Tunable Filter

410-730MHz, 40MHz of Bandwidth

Fixed Filter

940 ÷ 960 MHz (Europe/Usa)

Selectable Filter

470-617 MHz

470-662 MHz

470-698 MHz

520-617 MHz

520-662 MHz

520-698 MHz

550-617 MHz

550-662 MHz

550-698 MHz

F45

Tunable Filter

410-730MHz, 40MHz of Bandwidth

Fixed Filter

806 ÷ 810MHz (for Japan)

Selectable Filter

410-600 MHz

410-710 MHz

410-810 MHz

470-600 MHz

470-710 MHz

470-810 MHz

510-600 MHz

510-710 MHz

510-810 MHz
